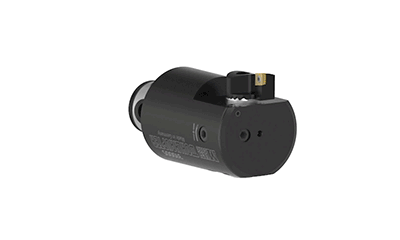

320 (310) Boring Head    360 Icon

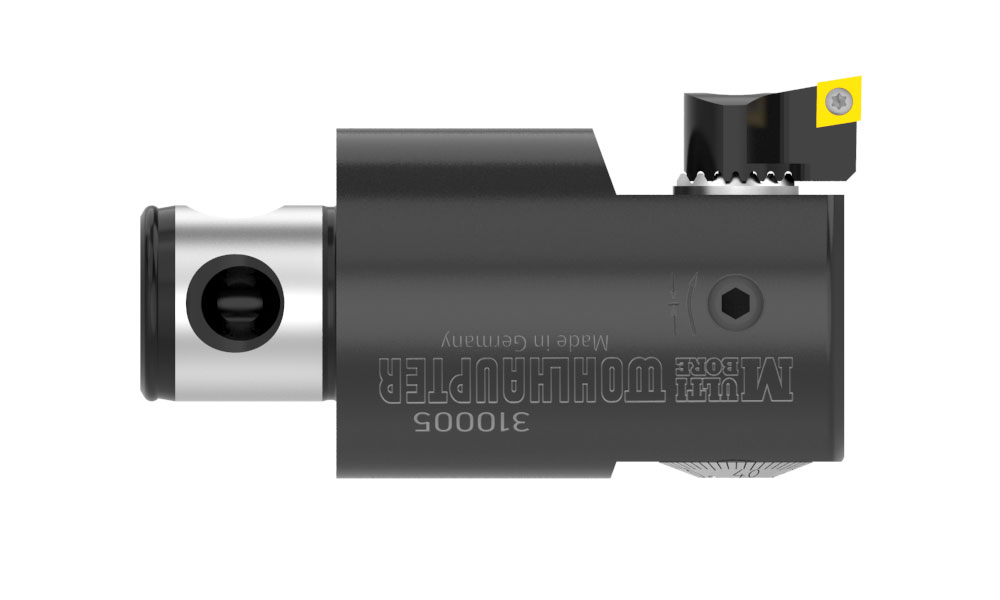

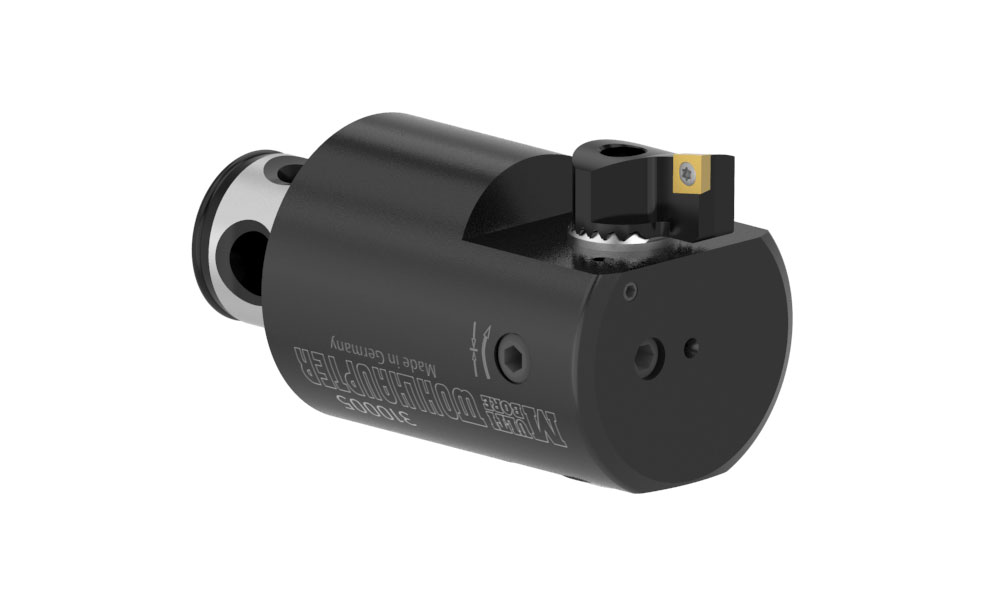

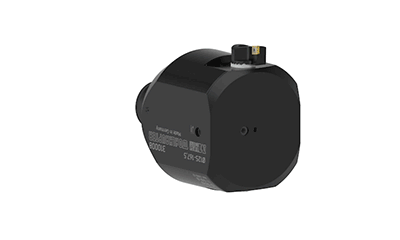

Wohlhaupter's 320 (310) boring head is made from steel for Ø 0.787" - 4.077" (20.00 mm - 103.00 mm) and coated Alu-Line material for Ø 3.937" - 8.070" (100.00 mm - 205.00 mm) boring heads to protect against corrosion and wear. The insert holder can be rotated quickly for reverse machining.
Advantages
  • Special coating on Alu-Line provides hard, durable surface
  • Alu-Line body reduces tool weight by 50%, reducing stress on the spindle
  • Max cutting speed: 3,281 SFM (1,000 m/min)

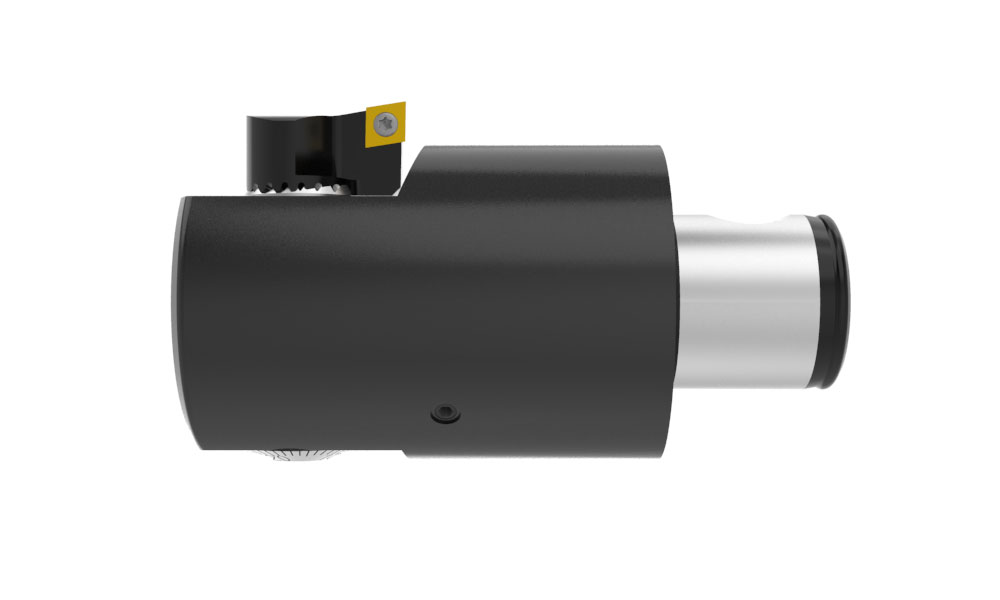

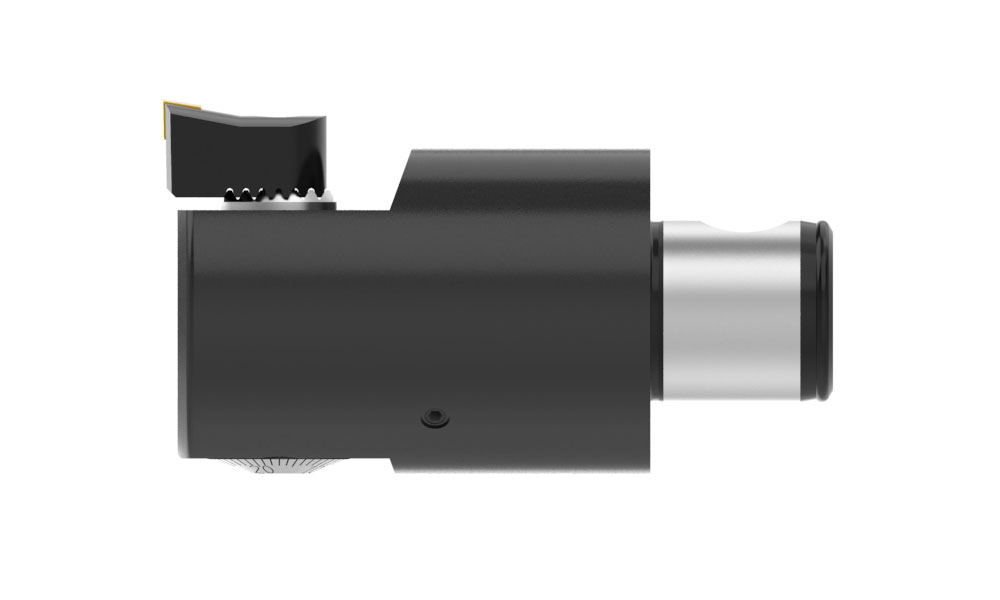

  • Insert holder can be rotated for reverse machining (back boring) jobs
Features
  • Diameter range: 0.787" - 8.070" (20.00 mm - 205.00 mm)

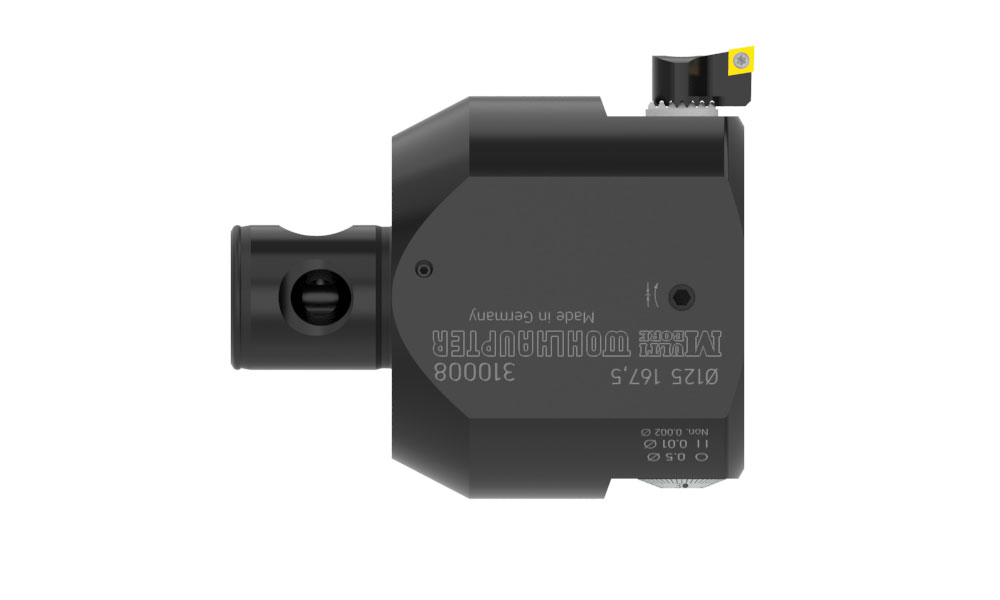

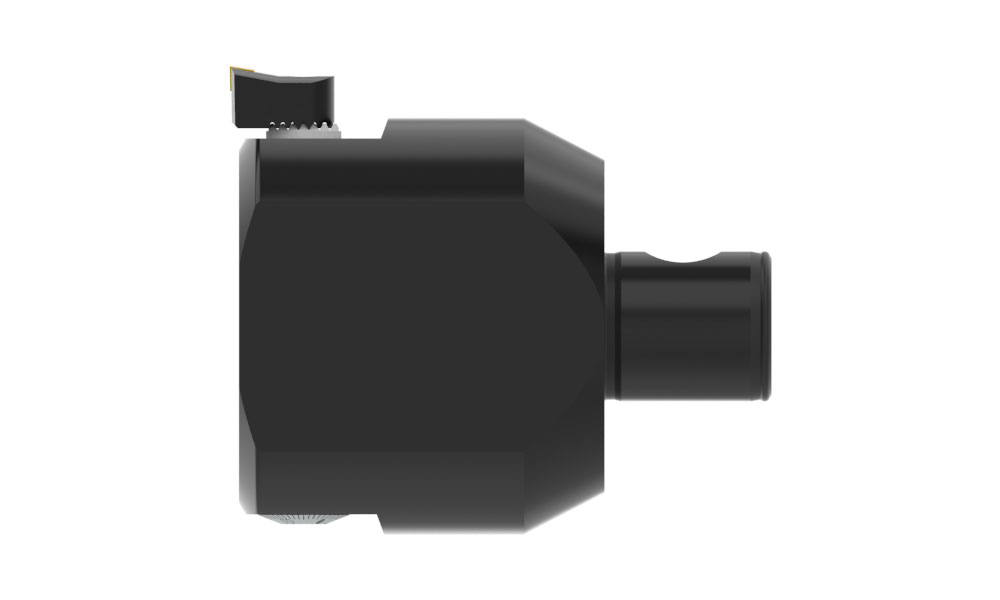

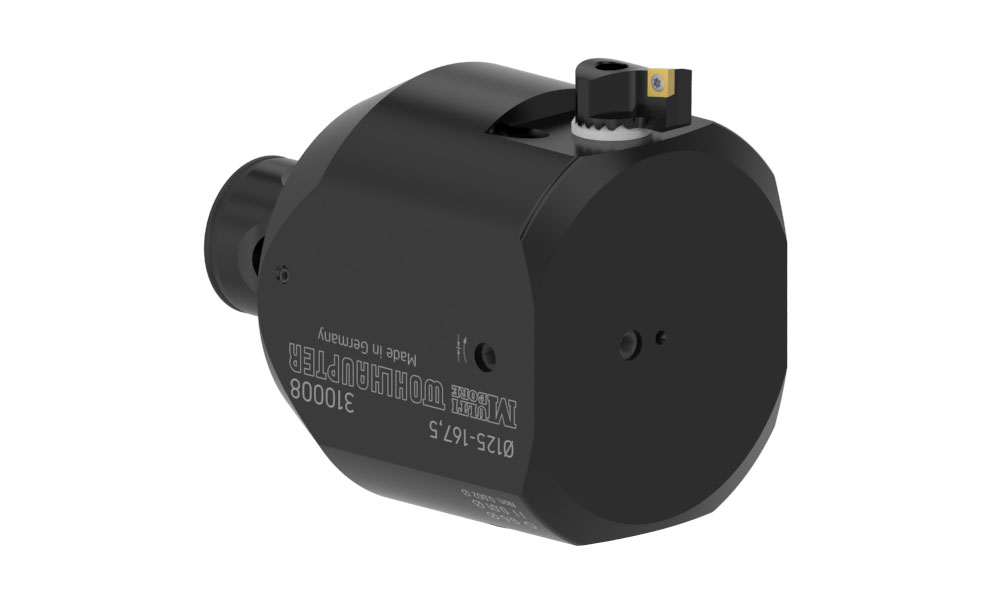

  • Alu-Line diameter range: 3.937" - 8.070" (100.00 mm - 205.00 mm)
  • Coolant through
  • Vernier diameter adjustment of 0.0001" (0.002 mm)
Recommended Materials
Materials
x
Key Icon Steel
Material Key Icon High Temp Alloy
Key Icon Stainless Steel
Material Key Icon Hardened Steel
Key Icon Cast Iron
Material Key Icon Non-Ferrous
KeyIcon Reference

Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon
Material Key Icon



Recommended Industries
Industries
x
Key Icon Medical
Industry Key Icon Renewable Energy/ Energy
Key Icon Automotive
Industry Key Icon Aerospace
Key Icon Firearms
Industry Key Icon Agriculture
Key Icon Oil and Gas
Industry Key Icon Marine
Key Icon General Production
Industry Key Icon Heavy Equipment
Key Icon Hydraulics
Industry Key Icon Tool, Mold, and Die
Key Icon Structural Steel Fabricator
Key Icon Reference
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry
Industry



Technical Information

Fine Boring Tools
Literature Thumbnail

Available Online Only

Recommended Cutting Data
Wohlhaupter Boring Cutting Data
