XTK14-14.20
GEN3SYS® XT Pro Replaceable Drill Insert: 0.5591" (14.20 mm), K Geometry, AM440
GEN3SYS® XT Pro Insert

Add to cart image Add to list image







See Additional Technical Information

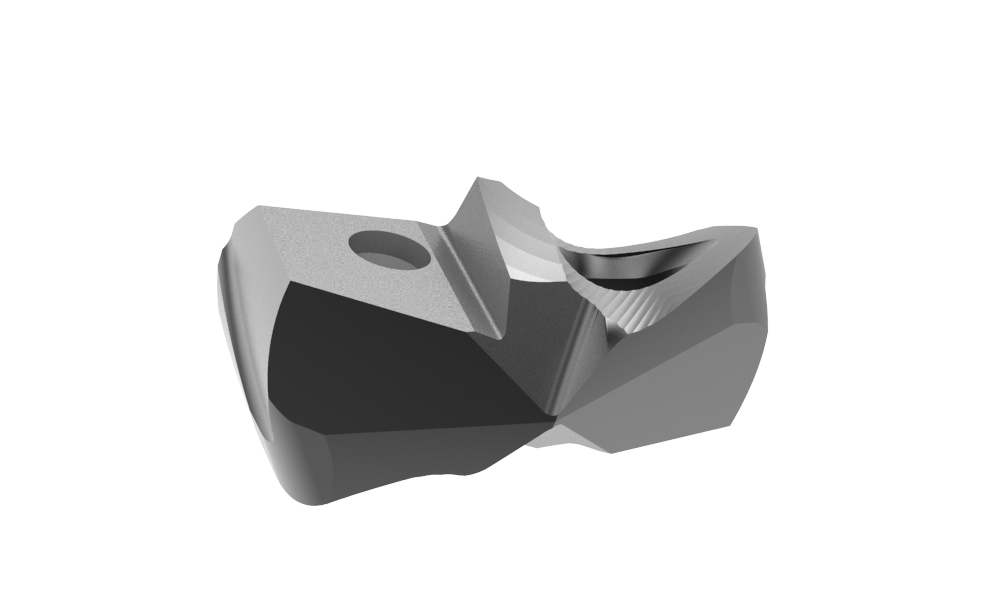

Default Image
Angle

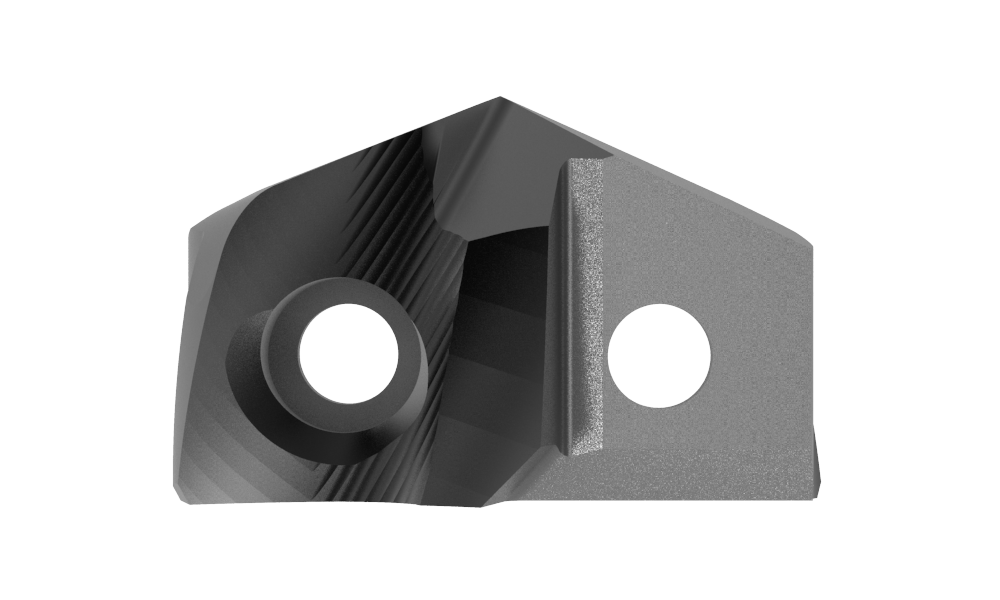

Side

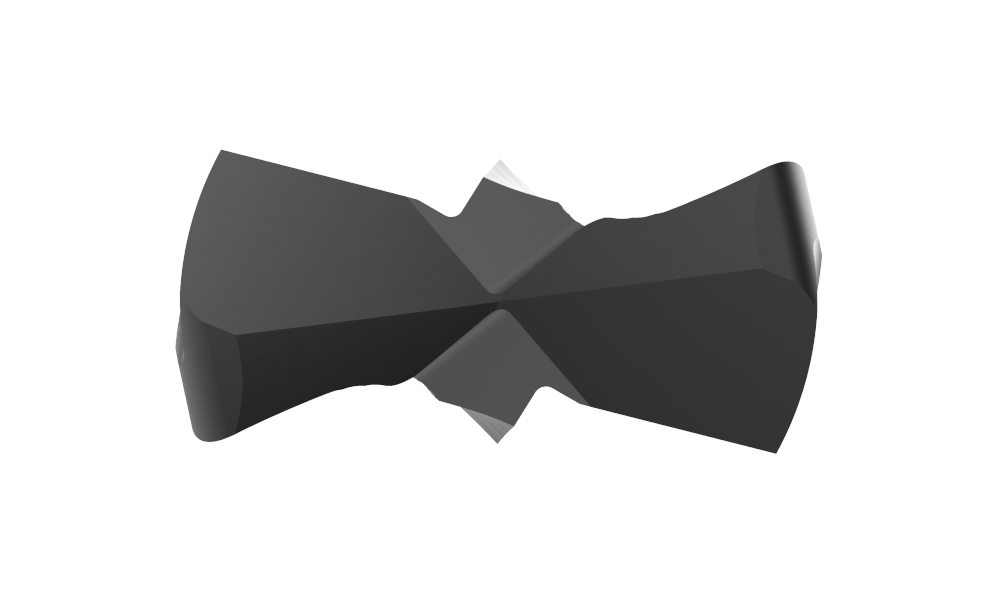

Top
Product Specifications
Series 14
Diameter (mm) 14.20
Diameter (inch) 0.5591
Geometry K
Material Carbide
Grade C2 (K20)
Coating AM440
Included Angle 140°
Type of Product Replaceable Drill Insert
Product Application High Performance
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.013
Weight in kg (each) 0.01
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.021 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.021 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.021 lbs
Recycleable? Yes
Contains PFAS? No
