W8905H-CV50
APX™ Replaceable Drill Body: 3.5038" - 3.7399" , 5xD, CAT50 Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information

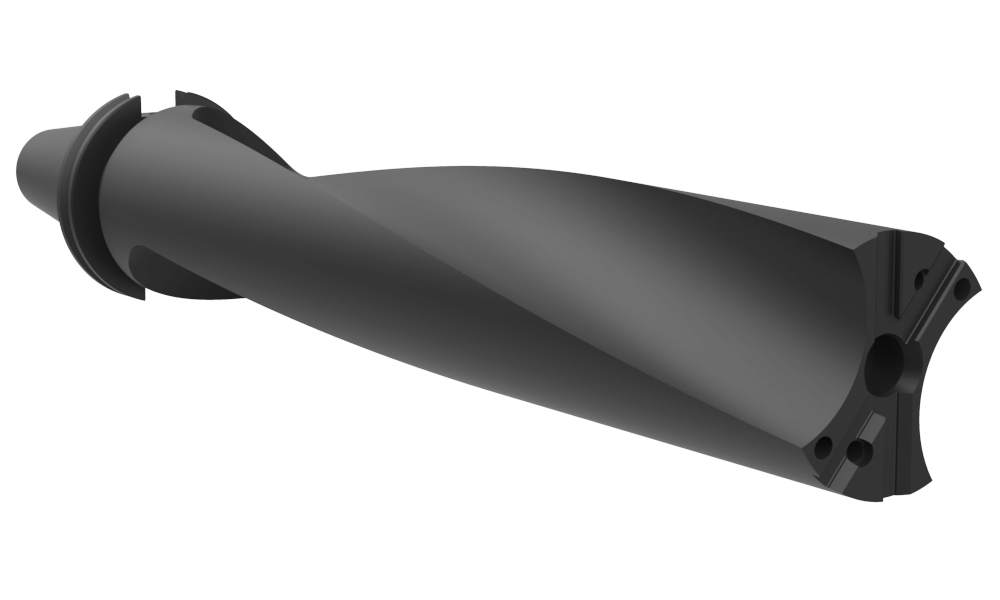

Default Image
Angle

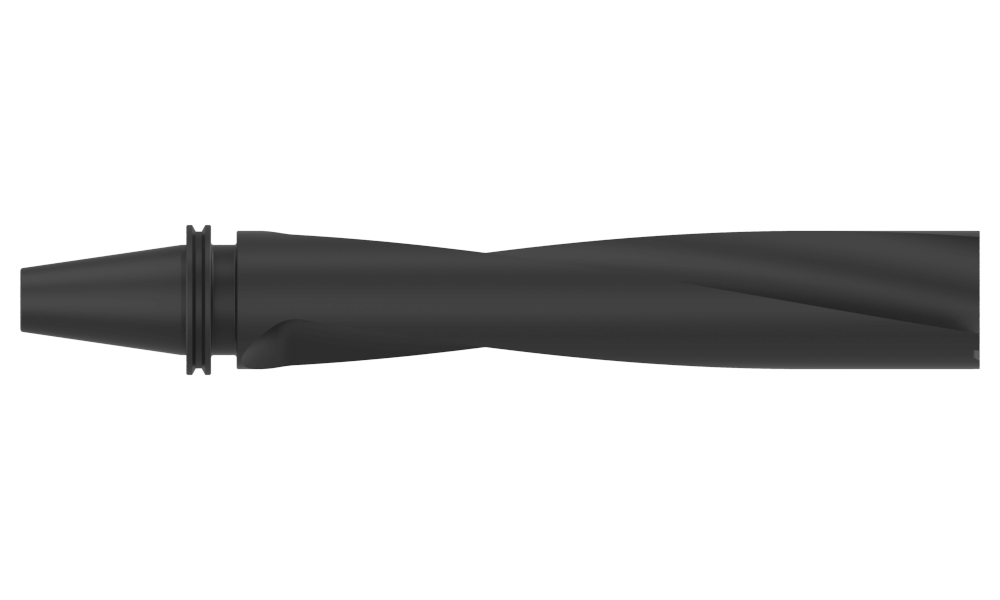

Front

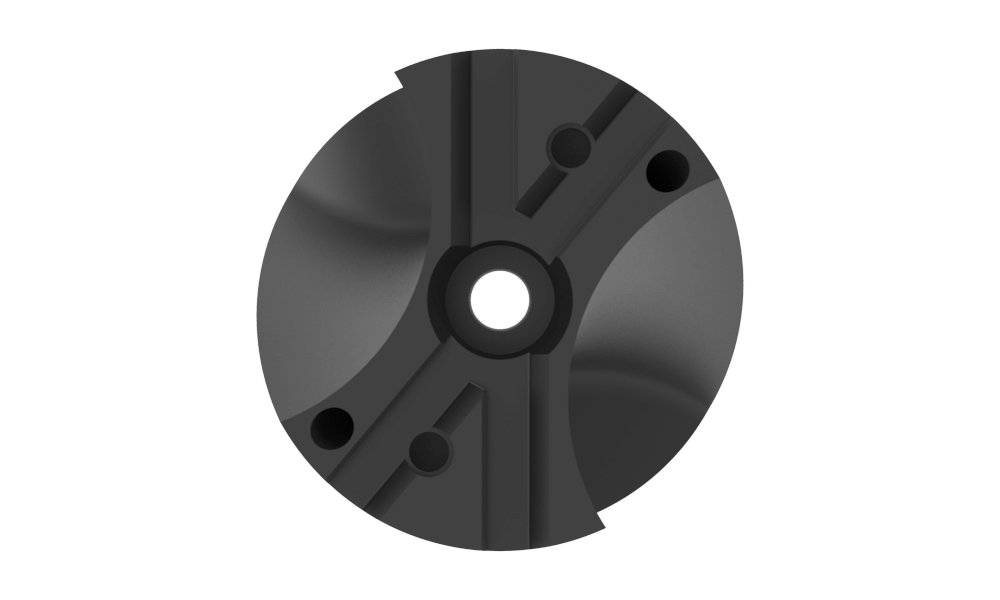

Top
Product Specifications
Series 89
Minimum Diameter (inch) 3.5038
Maximum Diameter (inch) 3.7399
Length Type 5xD
Flute Type Helical
Gage Length (inch) 21.990
Drill Depth (inch) 18.954
Shank Type CAT50
Deep Hole Guidelines (Yes/No) No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 34.74
Weight in kg (each) 15.77
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 30.00%
Weight 5.200 lbs
Recycleable? Yes
Contains PFAS? No
