W8903H-CV50
APX™ Replaceable Drill Body: 3.5038" - 3.7399" , 3xD, CAT50 Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information

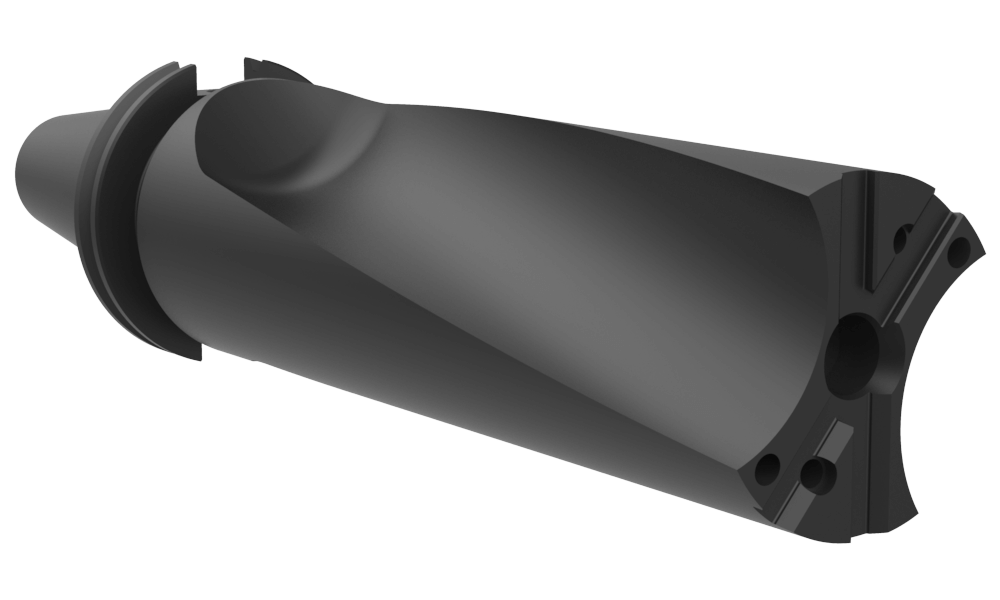

Default Image
Angle

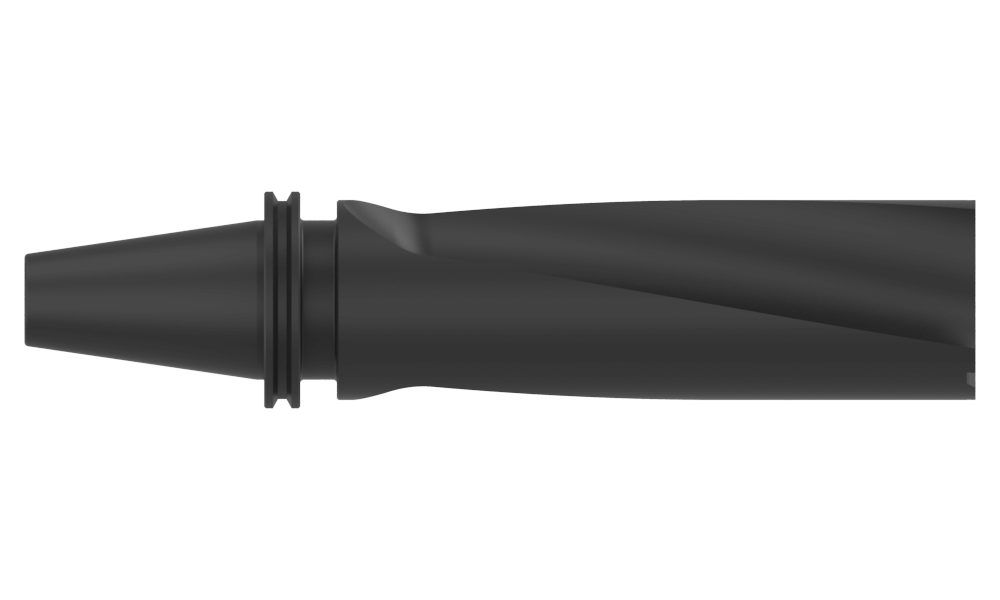

Front

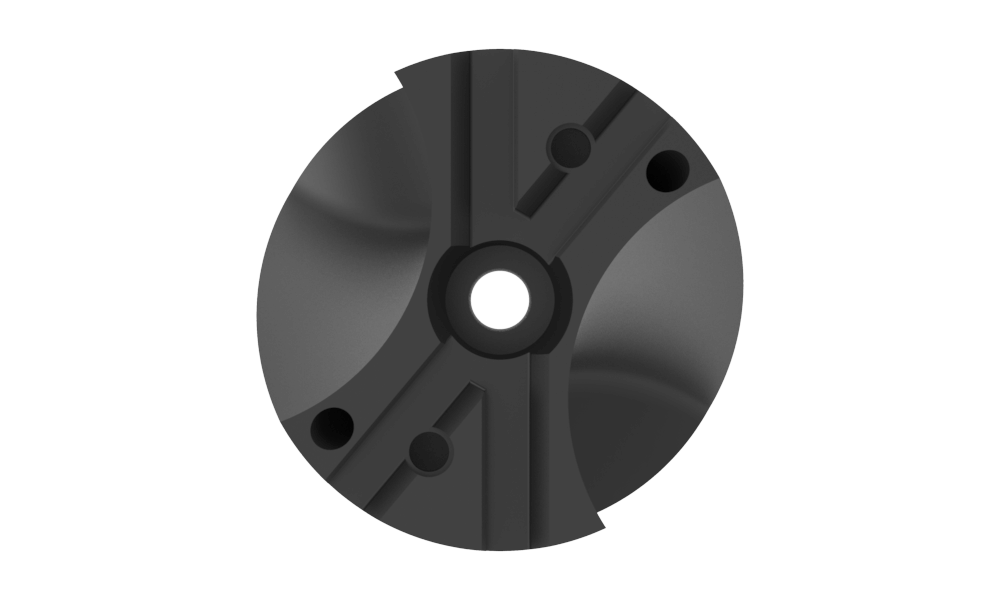

Top
Product Specifications
Series 89
Minimum Diameter (inch) 3.5038
Maximum Diameter (inch) 3.7399
Length Type 3xD
Flute Type Helical
Gage Length (inch) 14.510
Drill Depth (inch) 11.474
Shank Type CAT50
Deep Hole Guidelines (Yes/No) No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 23.97
Weight in kg (each) 10.88
Category Stocked
