W8305H-200F
APX™ Replaceable Drill Body: 3.2676" - 3.5037" , 5xD, Flanged Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information

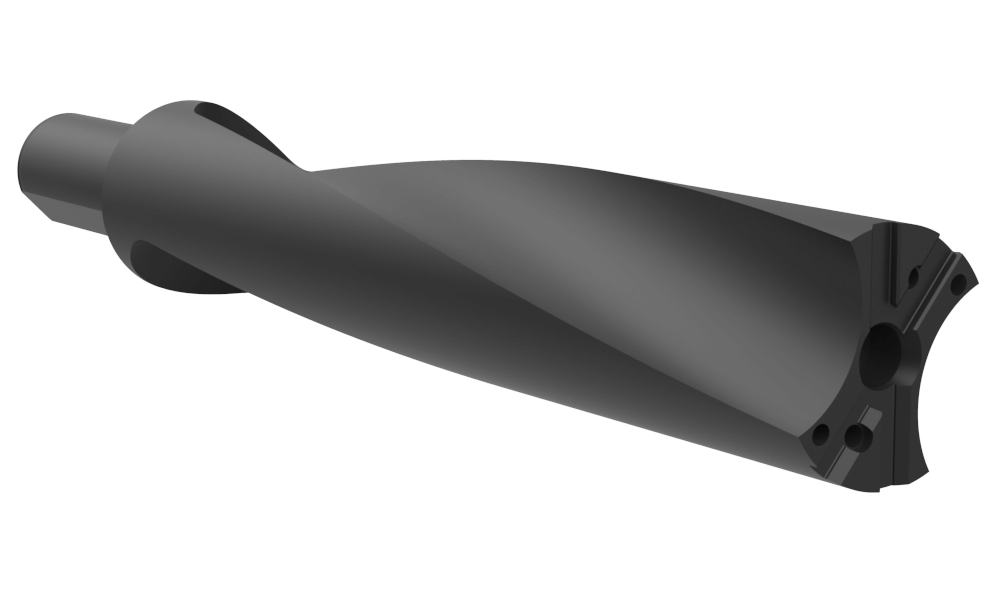

Default Image
Angle

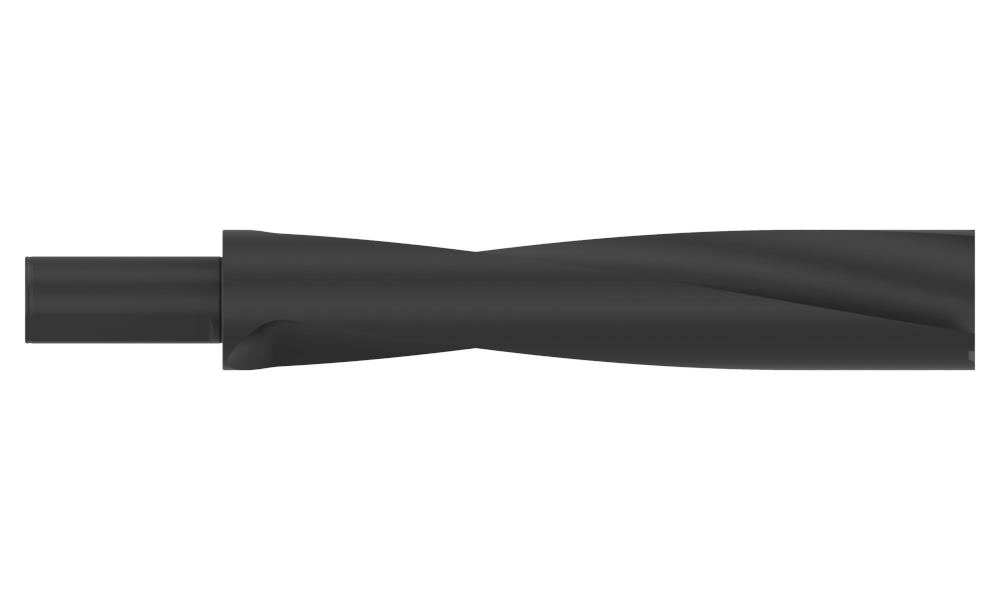

Front

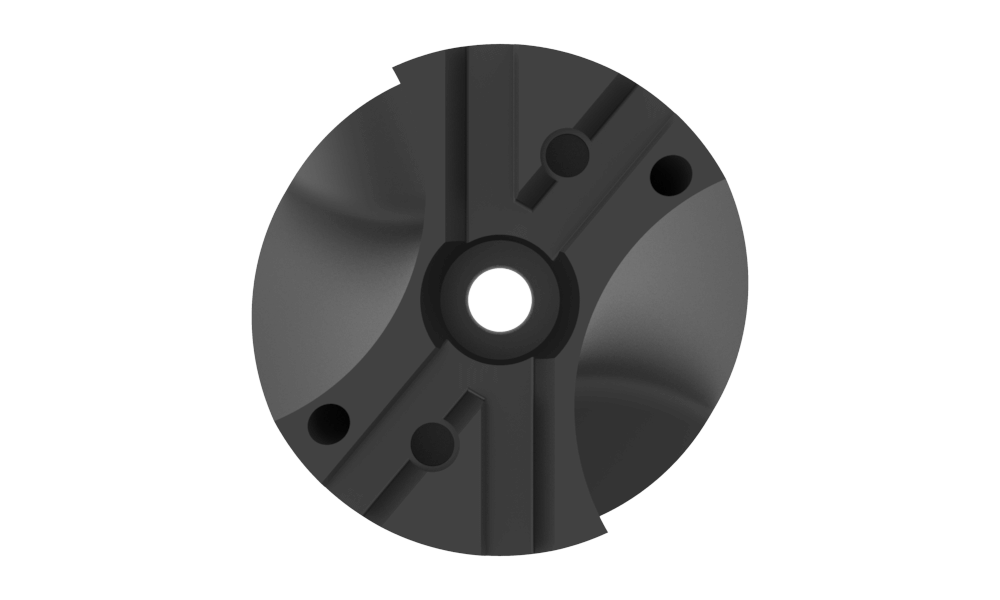

Top
Product Specifications
Series 83
Minimum Diameter (inch) 3.2676
Maximum Diameter (inch) 3.5037
Length Type 5xD
Flute Type Helical
Overall Length (inch) 23.813
Tool Reference Length (inch) 19.313
Drill Depth (inch) 17.747
Shank Type Flanged
Shank Diameter (inch) 2
Shank Length (inch) 4.500
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 27.28
Weight in kg (each) 12.39
Category Stocked
