W6310H-50FM
APX™ Replaceable Drill Body: (63.00 mm- 69.99 mm), 10xD, Flanged Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information

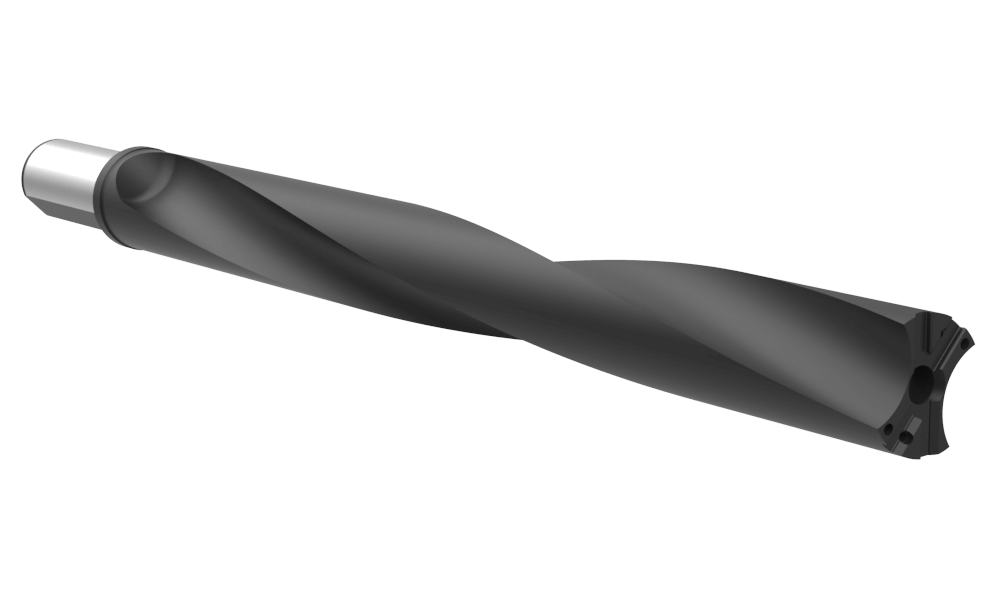

Default Image
Angle

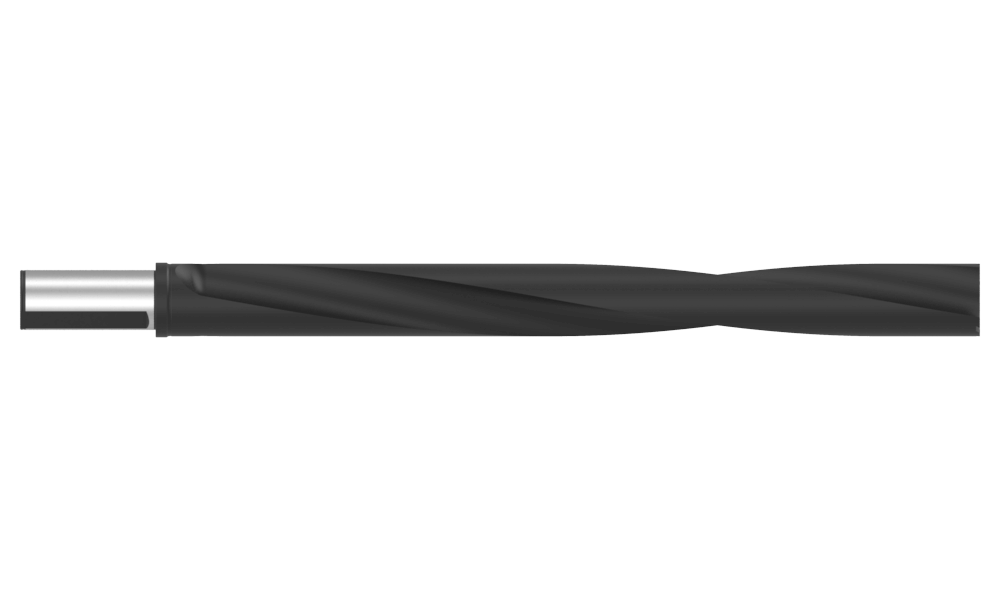

Front

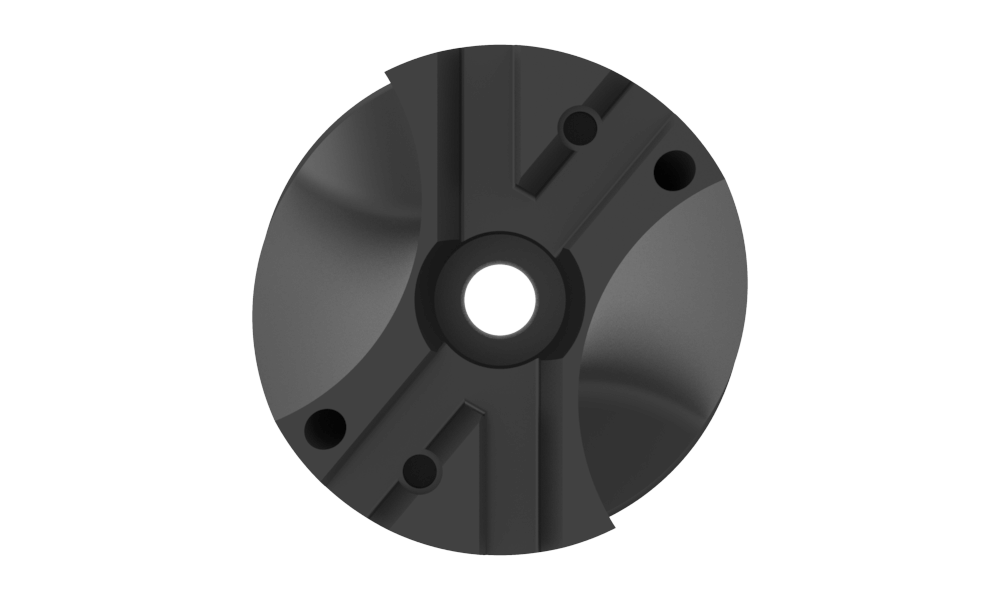

Top
Product Specifications
Series 63
Minimum diameter mm 63.00
Maximum diameter mm 69.99
Length Type 10xD
Flute Type Helical
Overall length mm 820.8
Tool Reference Length mm 740.8
Drill depth mm 695.3
Shank type Flanged
Shank diameter mm 50
Shank length mm 80.0
Pipe tap rear mm 1/4 BSPT
Deep Hole Guidelines Yes
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 24.13
Weight in kg (each) 10.96
Category Stocked
