W4405H-150F
APX™ Replaceable Drill Body: 1.7321" - 2.0076" , 5xD, Flanged Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information

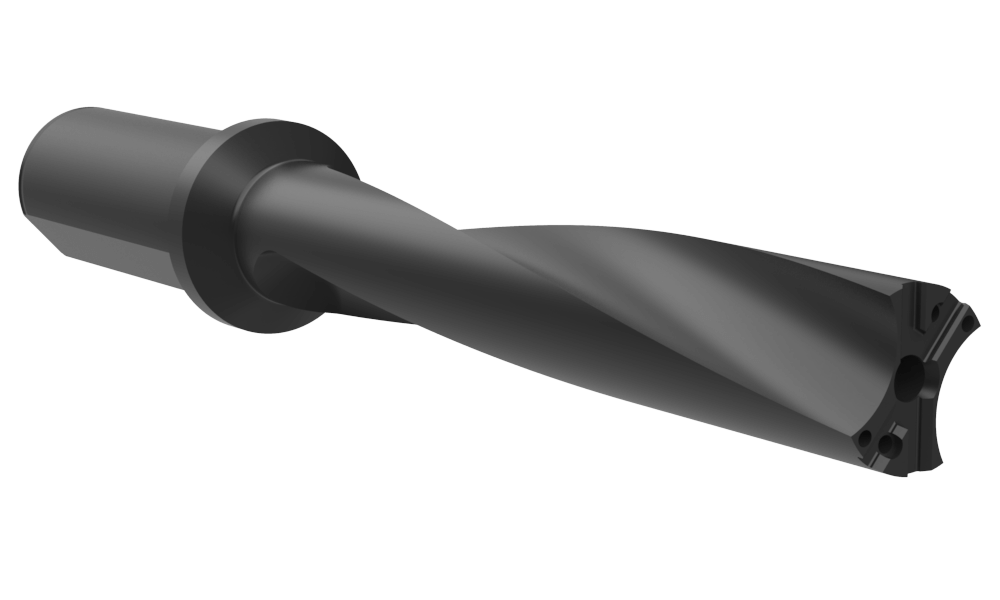

Default Image
Angle

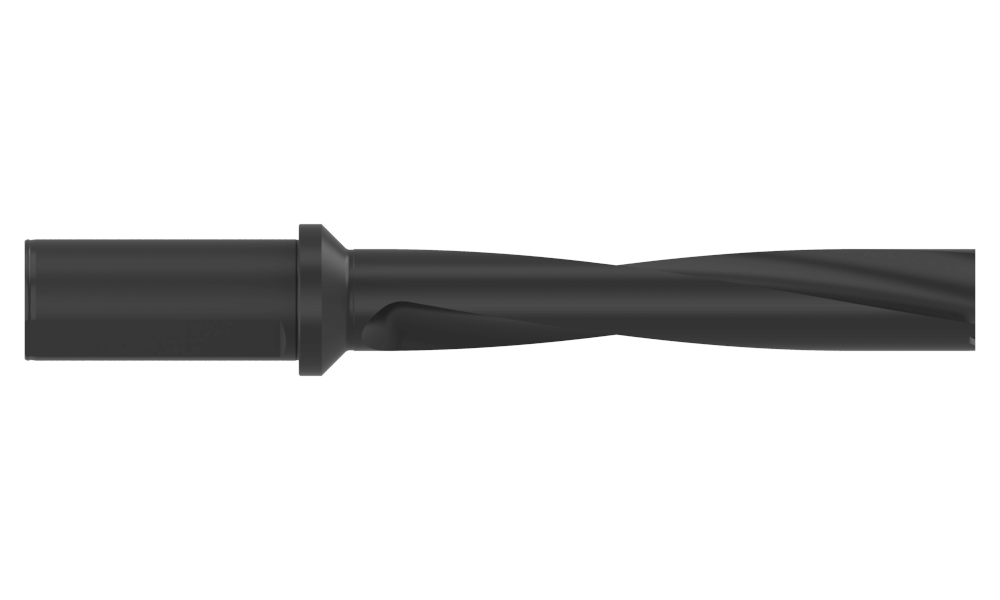

Front

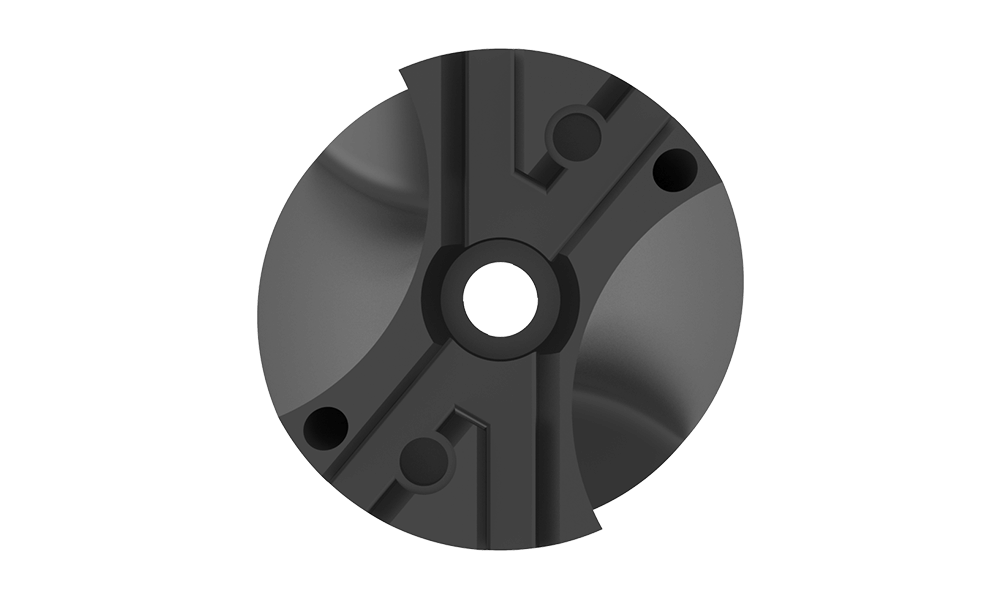

Top
Product Specifications
Series 44
Minimum Diameter (inch) 1.7321
Maximum Diameter (inch) 2.0076
Length Type 5xD
Flute Type Helical
Overall Length (inch) 15.242
Tool Reference Length (inch) 12.554
Drill Depth (inch) 10.697
Shank Type Flanged
Shank Diameter (inch) 1-1/2
Shank Length (inch) 2.688
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 5.71
Weight in kg (each) 2.59
Category Stocked
