W3805H-CV50

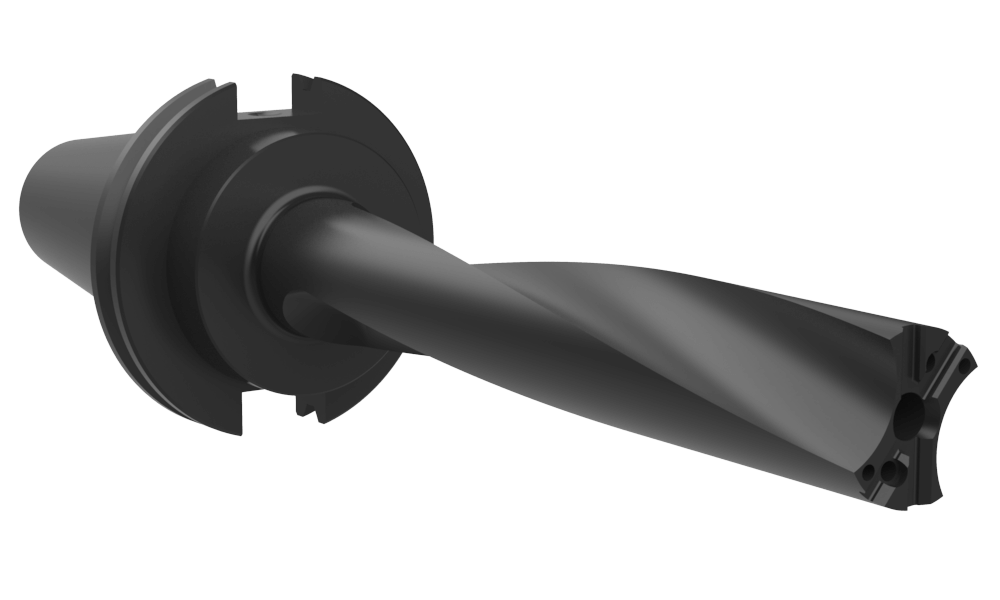

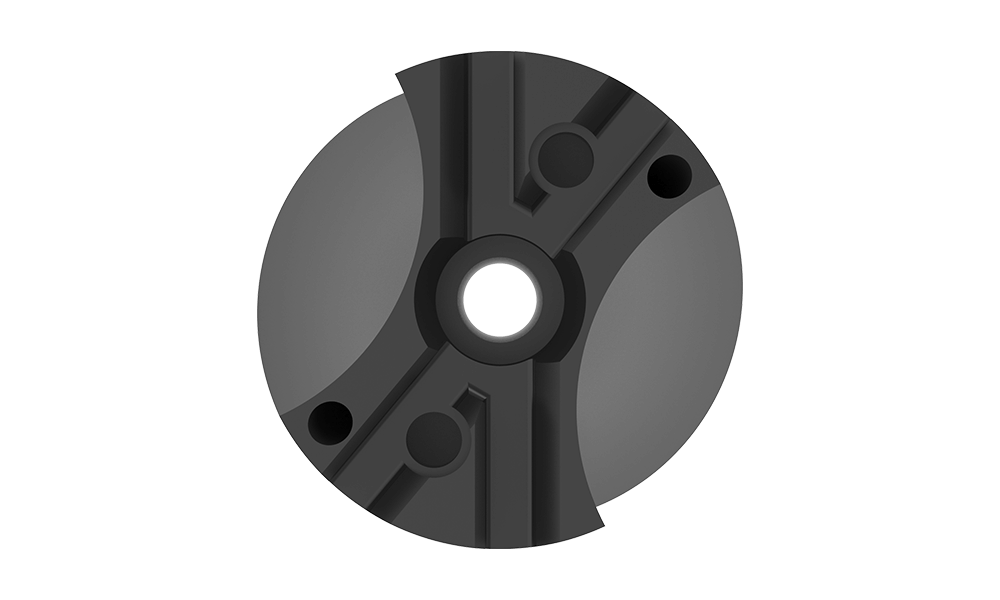

APX™ Replaceable Drill Body: 1.4959" - 1.7320" , 5xD, CAT50 Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Top
Product Specifications
Series 38
Minimum Diameter (inch) 1.4959
Maximum Diameter (inch) 1.7320
Length Type 5xD
Flute Type Helical
Gage Length (inch) 11.768
Drill Depth (inch) 9.342
Shank Type CAT50
Deep Hole Guidelines (Yes/No) No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 9.93
Weight in kg (each) 4.51
Category Stocked
