W3803H-CV40
APX™ Replaceable Drill Body: 1.4959" - 1.7320" , 3xD, CAT40 Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

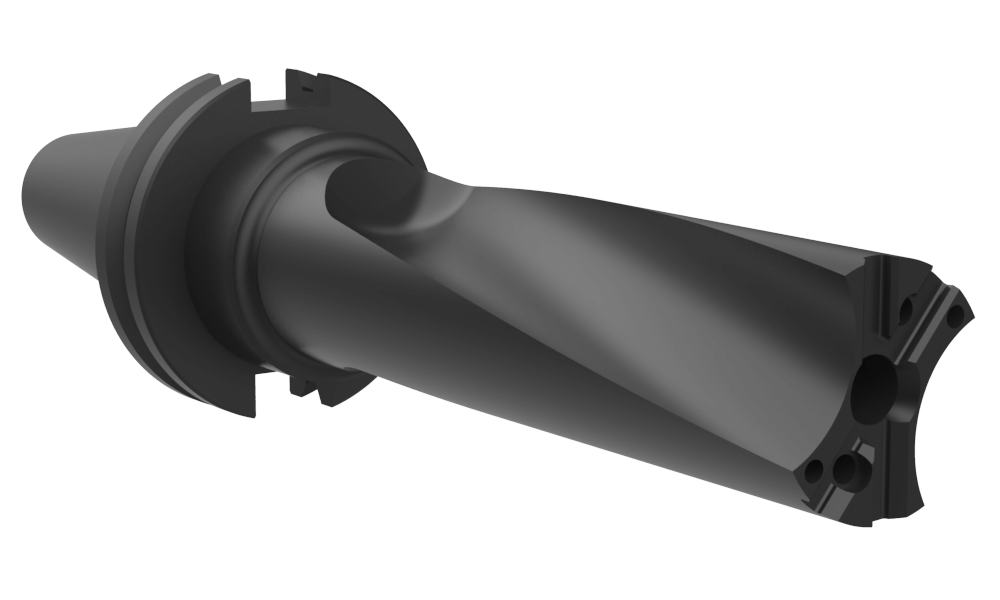

Angle

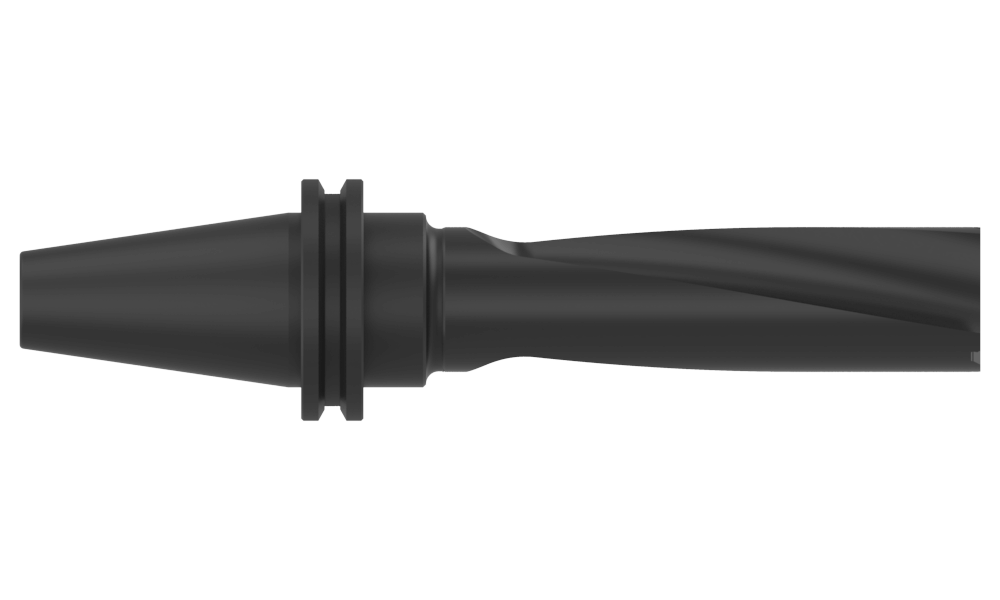

Front

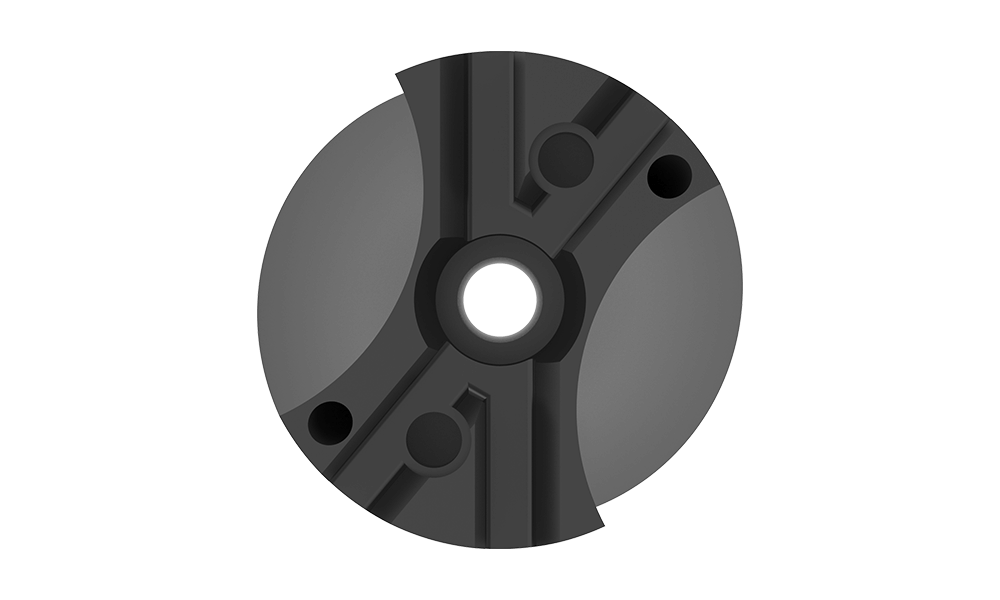

Top
Product Specifications
Series 38
Minimum Diameter (inch) 1.4959
Maximum Diameter (inch) 1.7320
Length Type 3xD
Flute Type Helical
Gage Length (inch) 8.304
Drill Depth (inch) 5.878
Shank Type CAT40
Deep Hole Guidelines (Yes/No) No
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.02
Weight in kg (each) 1.83
Category Stocked
