W3308H-150F
APX™ Replaceable Drill Body: 1.2991" - 1.4958" , 8xD, Flanged Shank
APX™ Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

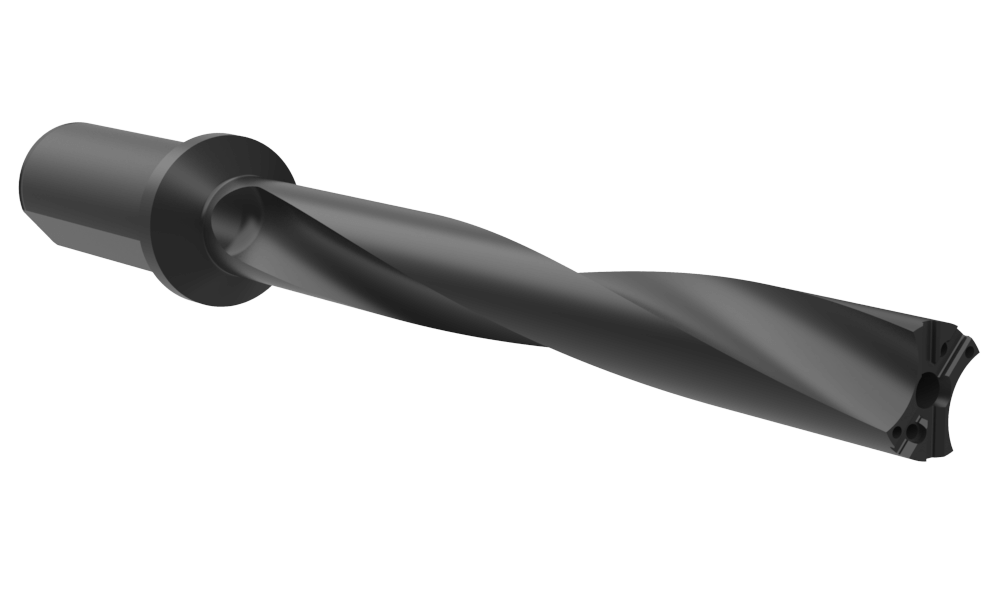

Angle

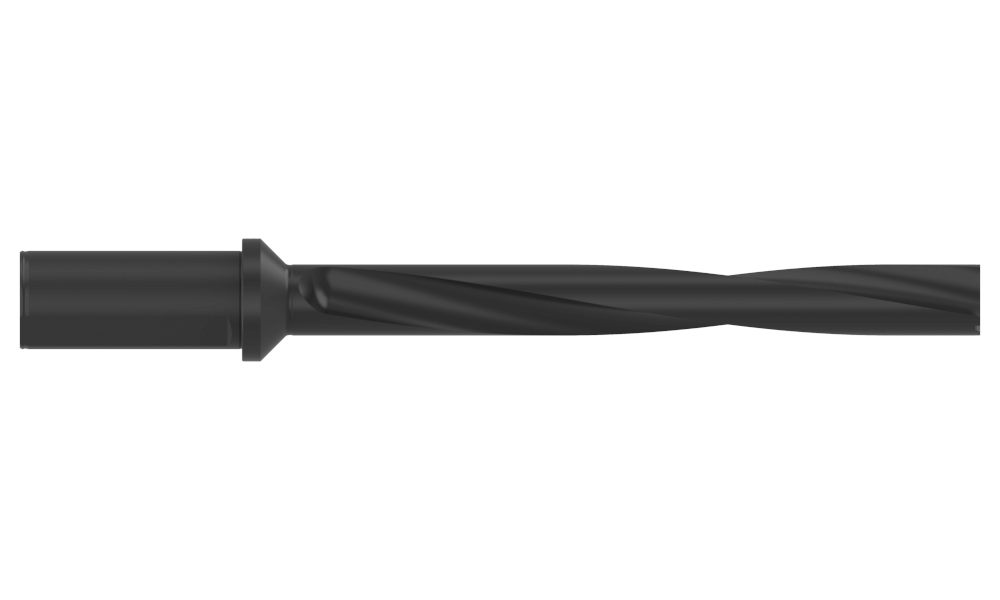

Front

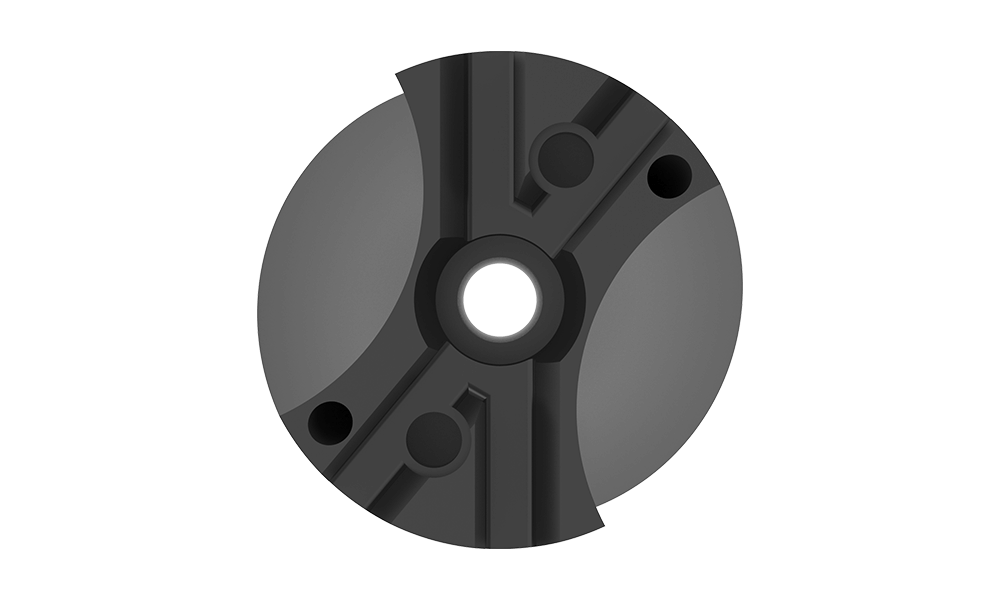

Top
Product Specifications
Series 33
Minimum Diameter (inch) 1.2991
Maximum Diameter (inch) 1.4958
Length Type 8xD
Flute Type Helical
Overall Length (inch) 16.758
Tool Reference Length (inch) 14.070
Drill Depth (inch) 12.654
Shank Type Flanged
Shank Diameter (inch) 1-1/2
Shank Length (inch) 2.688
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.5
Weight in kg (each) 2.04
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.396 lbs
Recycleable? Yes
Contains PFAS? No
Type: Rust Inhibitor
Material PAPER BOARD
Total Recycled Content 0.00%
Weight 0.002 lbs
Recycleable? Yes
Contains PFAS? No
