V7002S-0228
APX™ Pilot Head: 2.8750" (73.03 mm), T-A® Pilot
APX™ Head

Add to cart image Add to list image







See Additional Technical Information

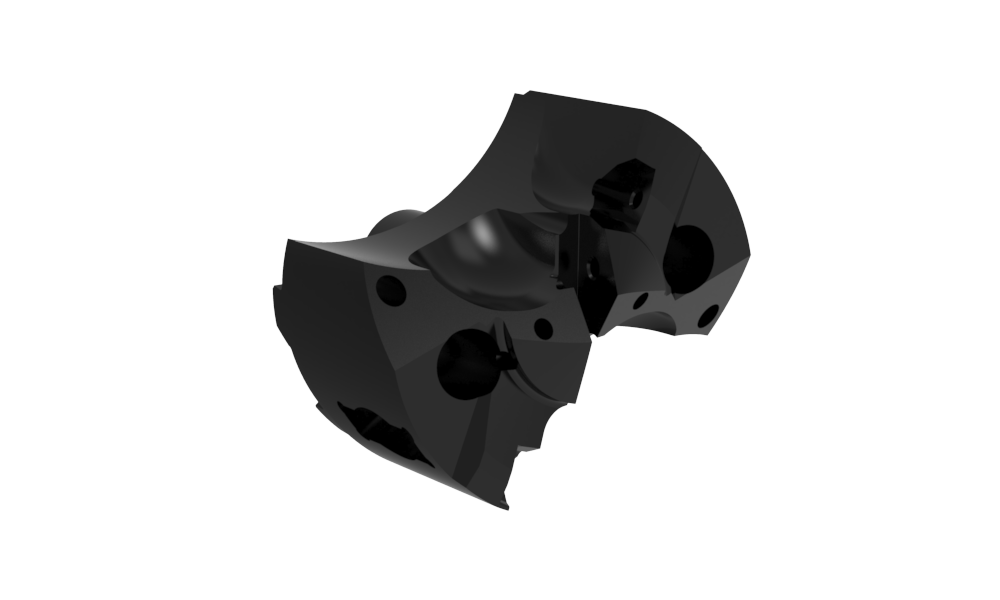

Default Image
Angle

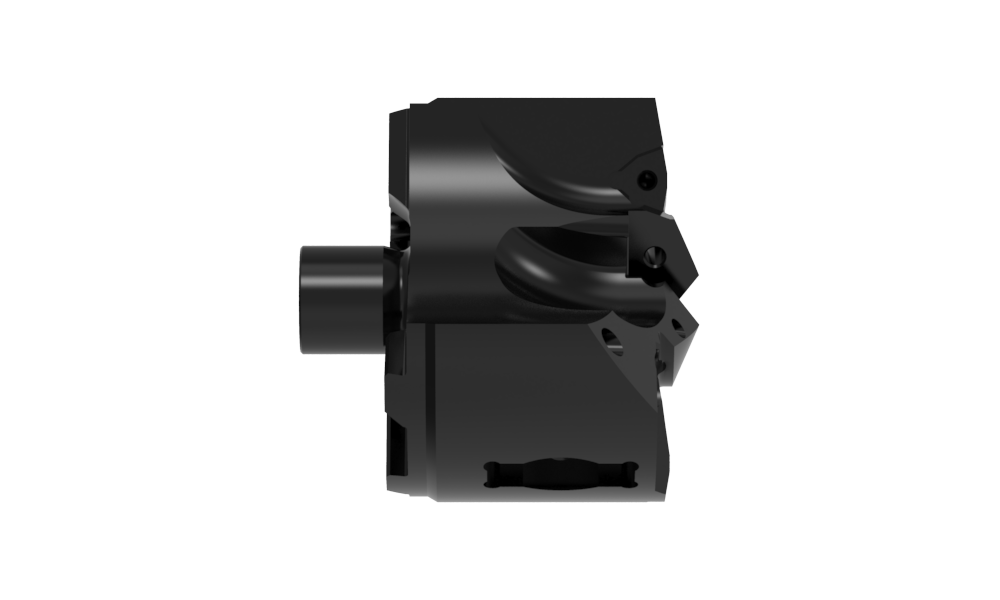

Front

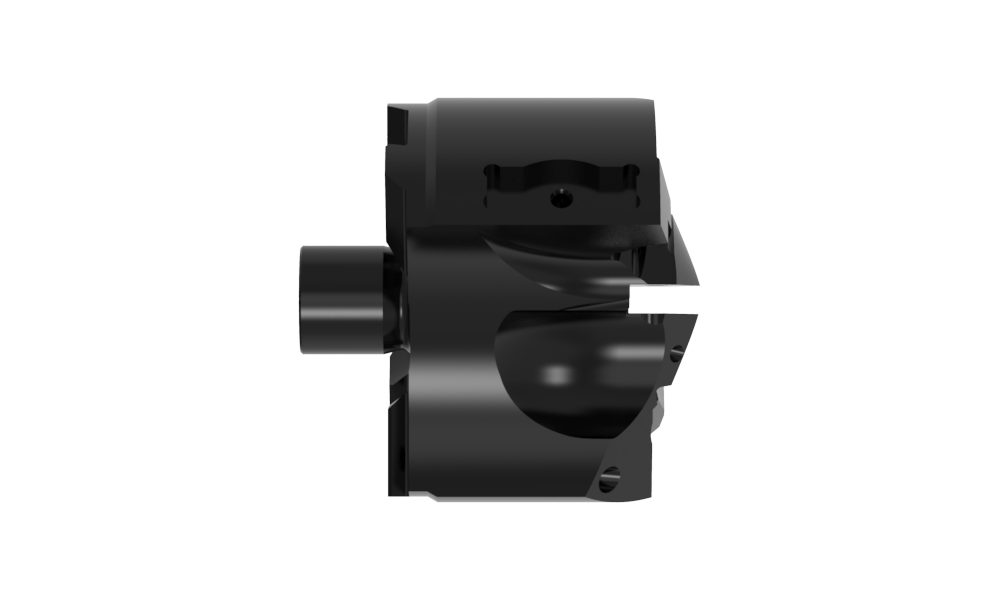

Side

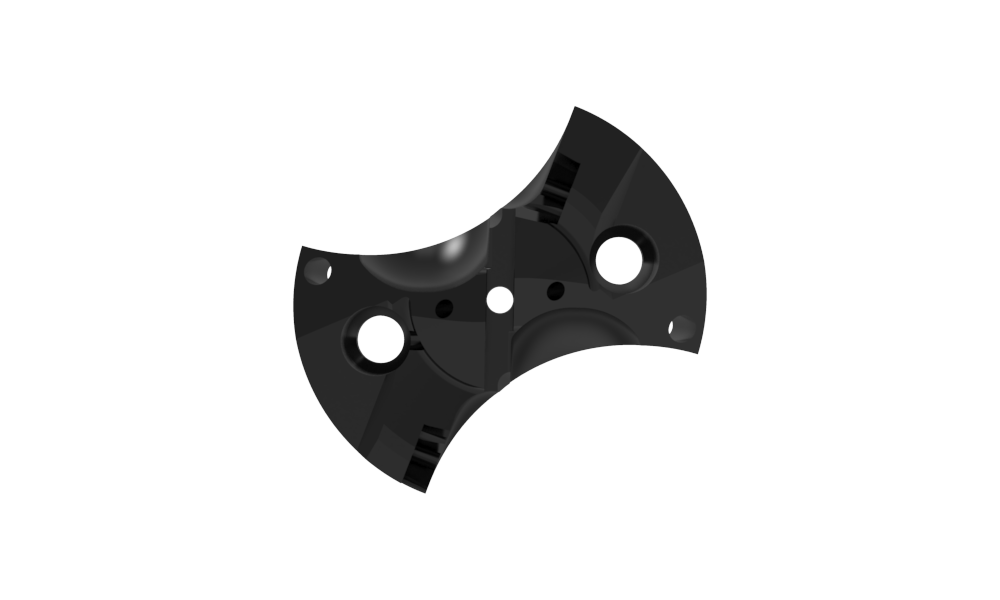

Top
Product Specifications
Series 70
Diameter mm 73.03
Diameter inch 2.8750
Diameter Fractional Equivalent 2-7/8"
Pilot Head Type T-A®
Pilot series 2
Pilot Diameter mm 30.96
Pilot Diameter inch 1.2189
Pilot Diameter Fractional Equivalent 1-7/32"
Pilot length inch 0.358
Pilot length mm 9.1
Style Single Effective
IC Size inch 3/8
Wear Pad Yes
Type of Product Indexable Drill Head
Product Application Large Diameter Drilling
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 73595-IP15-1 (Qty0)
Replacement IC Insert Screw
SCREW (1) TORX PLUS M3,5-4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 78027-IP30-1 (Qty0)
Replacement Mounting Screw
SCREW (1)TORX PLUS M8X 1.25-6G
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
IC Insert Screw Driver
DRIVER, TORX PLUS HAND IP-15

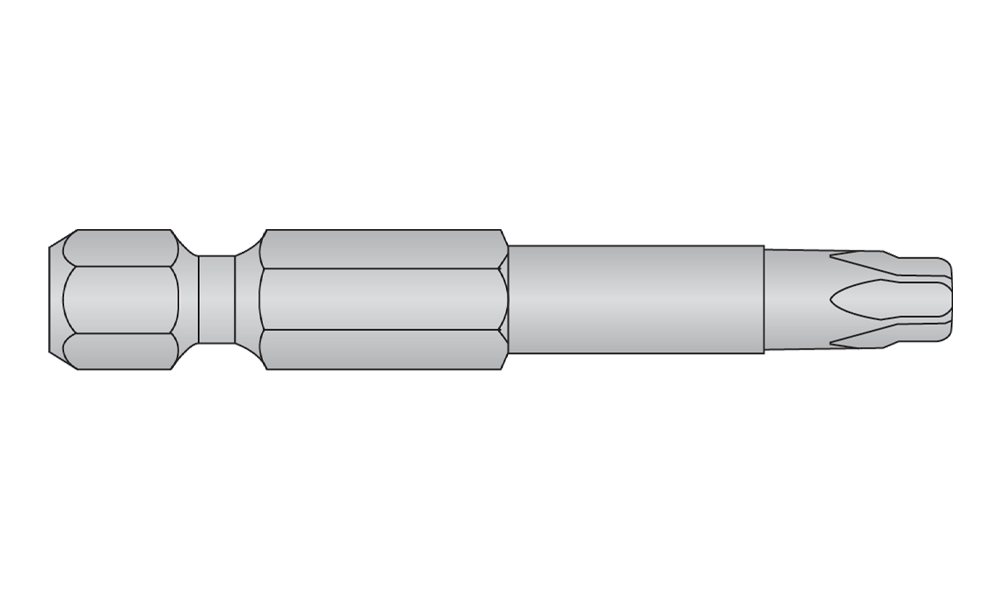

Accessories\Torx Drivers\Torx Driver Bit\TORX-DRIVER-BIT.png 8IP-30B (Qty0)
Mounting Screw Driver
BIT, REPLACEMENT TORX PLUS
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.53
Weight in kg (each) 0.69
Category Stocked
