V6332D-0223
APX™ Pilot Head: 2.7188" (69.06 mm), GEN3SYS® Pilot
APX™ Head

Add to cart image Add to list image







See Additional Technical Information

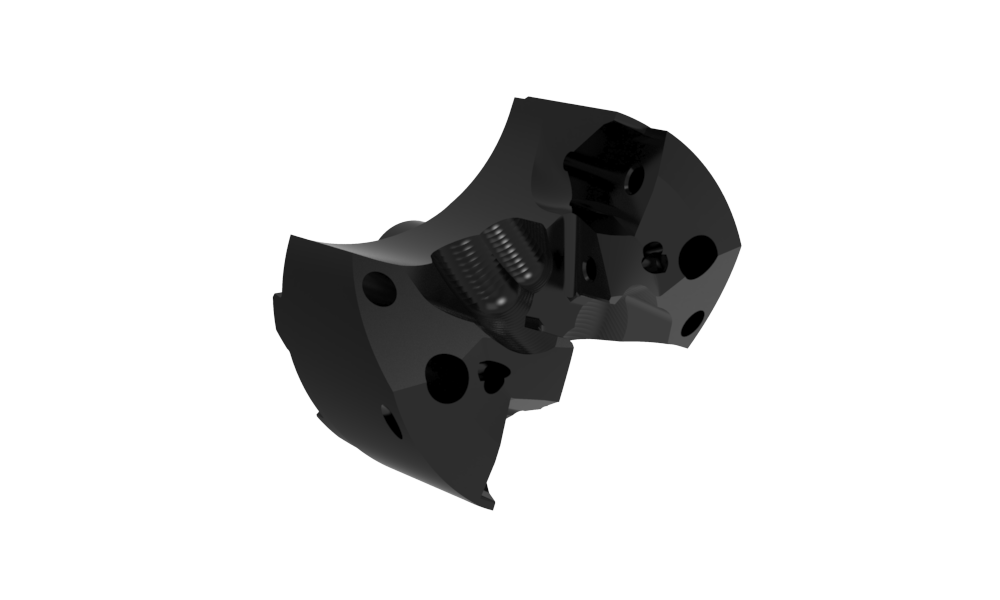

Default Image
Angle

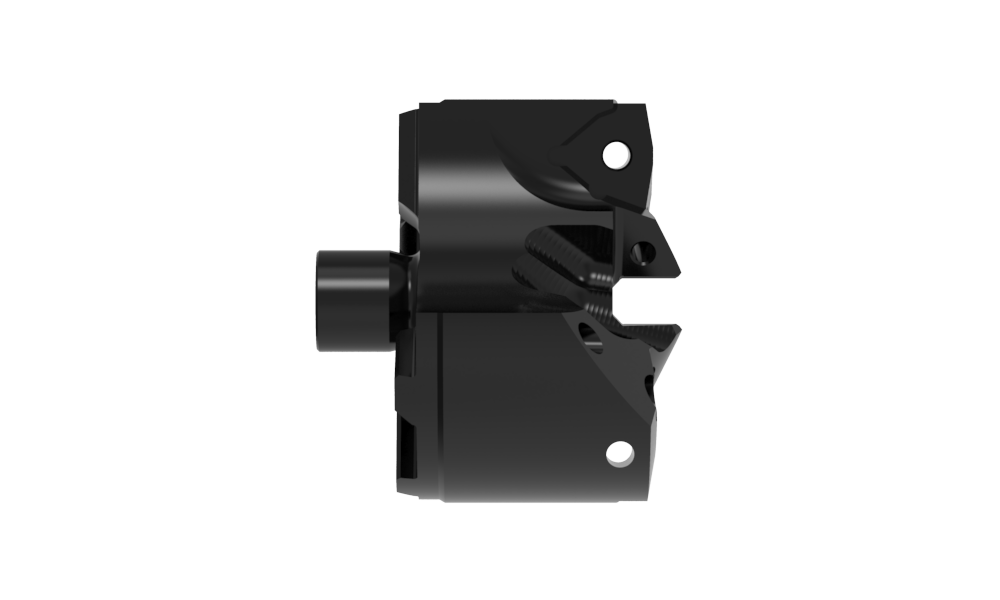

Front

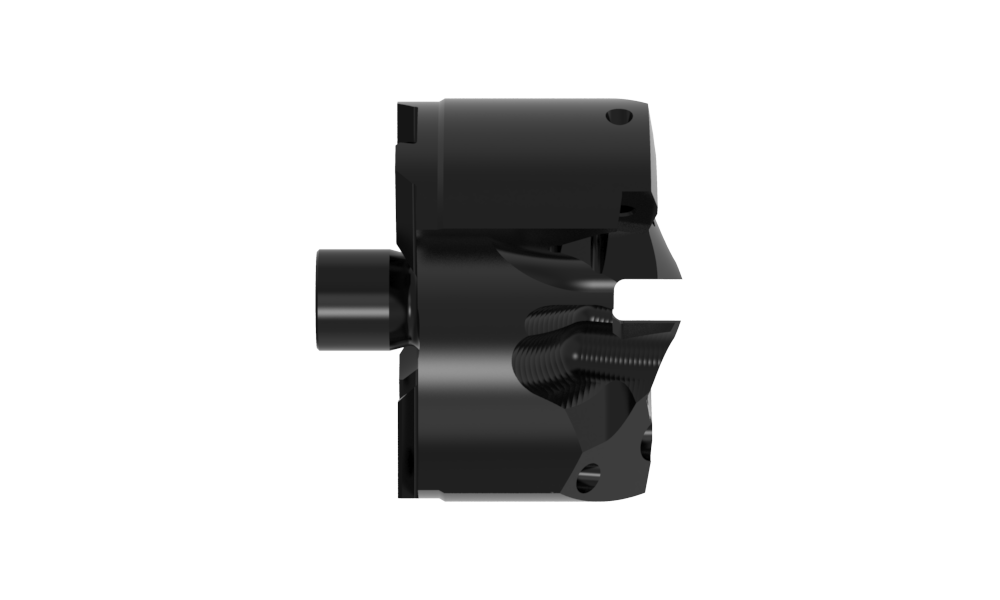

Side

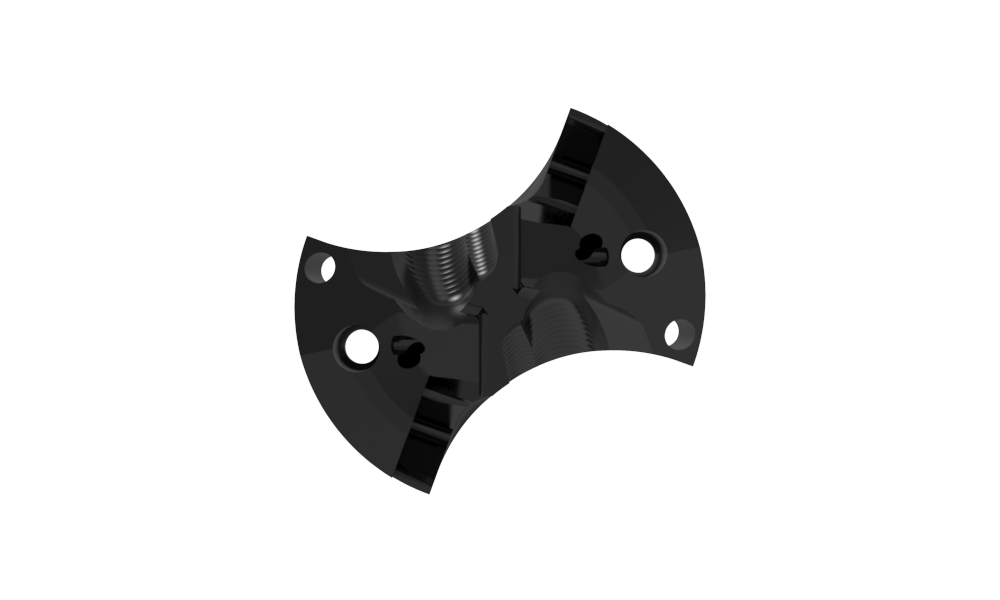

Top
Product Specifications
Series 63
Diameter mm 69.06
Diameter inch 2.7188
Diameter Fractional Equivalent 2-23/32"
Pilot Head Type GEN3SYS®
Pilot series 32
Pilot Diameter mm 33.34
Pilot Diameter inch 1.3126
Pilot Diameter Fractional Equivalent 1-5/16"
Pilot length inch 0.333
Pilot length mm 8.5
Style Double Effective
IC Size inch 9/16
Wear Pad No
Type of Product Indexable Drill Head
Product Application Large Diameter Drilling
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 75014-IP20-1 (Qty0)
Replacement IC Insert Screw
SCREW (1)TORX PLUS M5X 0,8-4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 75020-IP20-1 (Qty0)
Replacement Mounting Screw
SCREW (1)TORX PLUS M5X 0,8-4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
Insert Screw Driver
DRIVER, TORX PLUS HAND IP-15
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-20 (Qty0)
IC Insert Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.01
Weight in kg (each) 0.46
Category Stocked
