TP075K-UN32I
AccuThread 856® Bolt-In Threadmill Insert: UN 32, Internal, Length of Cut - 0.75" (19.05 mm)
AccuThread® 856 Insert

Add to cart image Add to list image







See Additional Technical Information

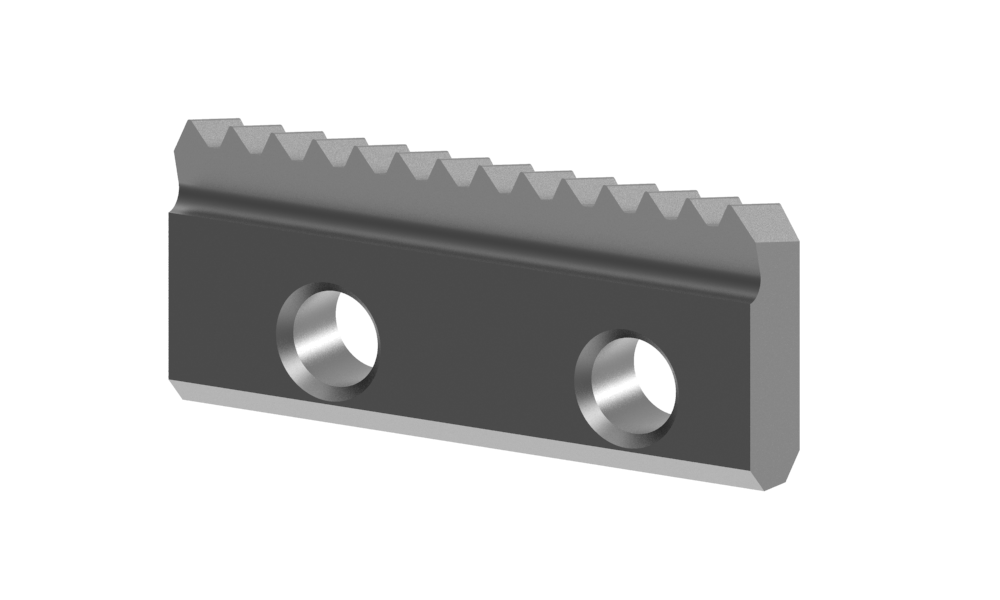

Default Image
Angle

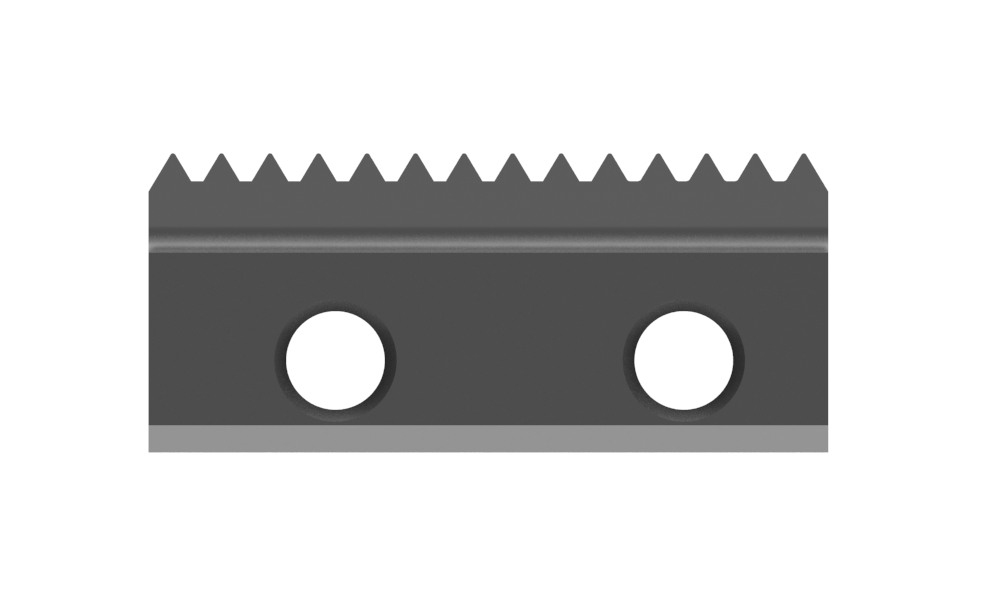

Front
Side
Product Specifications
Type of Product Indexable Threadmill Insert
Material Carbide
Grade C3 (K10)
Coating AM210®
Pitch 32
Connection Style Bolt-In
Insert Length inch 0.75
Insert Length mm 19.05
Form Type Straight
Insert thickness inch 0.08
Insert thickness mm 2.03
Thread Style Internal
Thread Standard UN
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.1
Weight in kg (each) 0.05
Category Stocked
