TN150K-AP8
AccuThread 856® Bolt-In Threadmill Insert: API Round 8, Internal/External, Length of Cut - 1.5" (38.1 mm)
AccuThread® 856 Insert

Add to cart image Add to list image







See Additional Technical Information

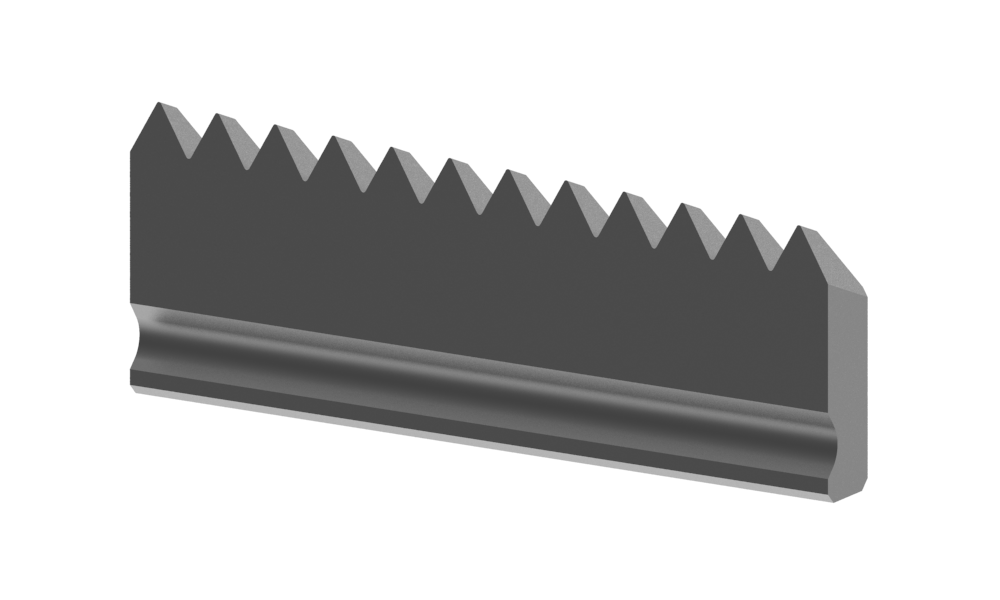

Default Image
Angle

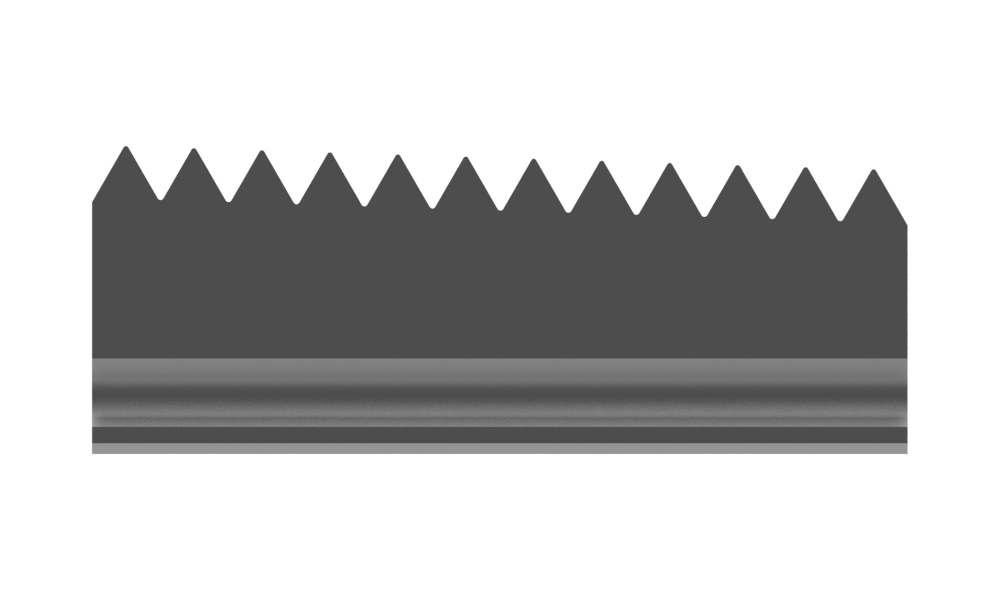

Front
Product Specifications
Type of Product Indexable Threadmill Insert
Material Carbide
Grade C3 (K10)
Coating AM210®
Pitch 8
Connection Style Pin & Screw
Insert Length (inch) 1.5
Insert Length (mm) 38.1
Form Type Tapered
Insert Thickness (inch) 0.14
Insert Thickness (mm) 3.56
Thread Style Internal/External
Thread Standard API Round
Ordering Information
Package Qty 2
Min. Order Qty 2
Weight in lbs (each) 0.1
Weight in kg (each) 0.05
Category Stocked
