TMUK0005-44M
AccuThread 856® Solid Carbide Threadmill: UN 44, #5, Helical 3 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information

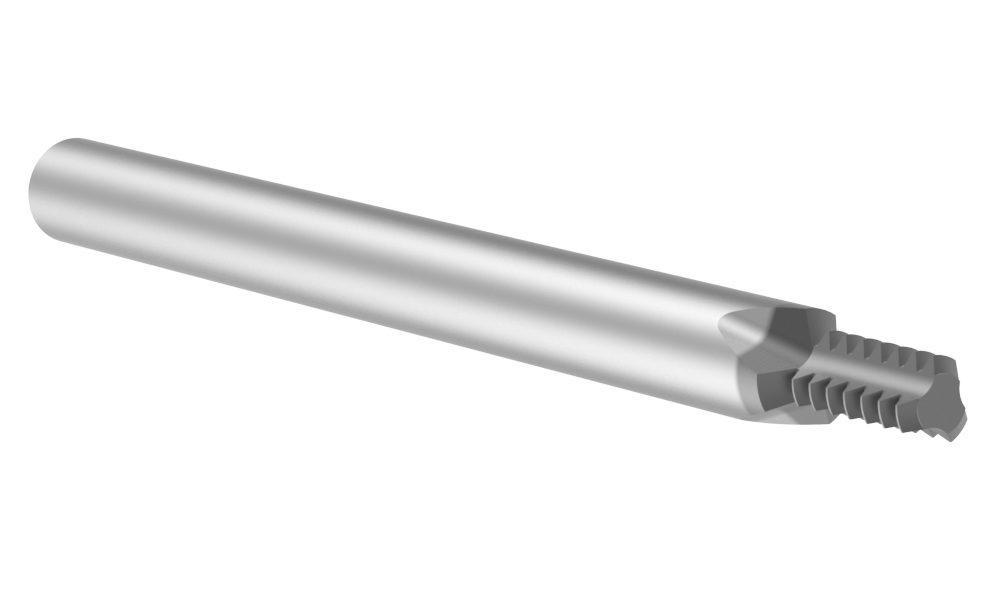

Default Image
Angle

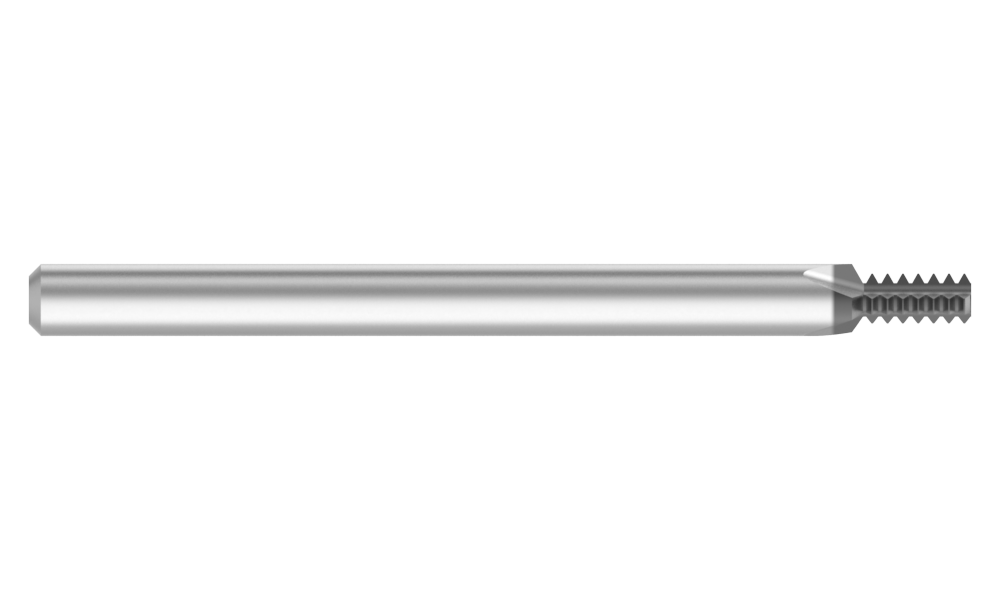

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (mm) 39
Shank Diameter (mm) 3
Shank Type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard UN
Minimum Thread Size #5
Pitch 44
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter (mm) 2.4
Length of Cut (mm) 4.65
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.01
Weight in kg (each) 0
Category Stocked
