TMNK1000-NPT
AccuThread 856® Solid Carbide Threadmill: NPT 11.5, 1", Helical 4 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information
Default Image

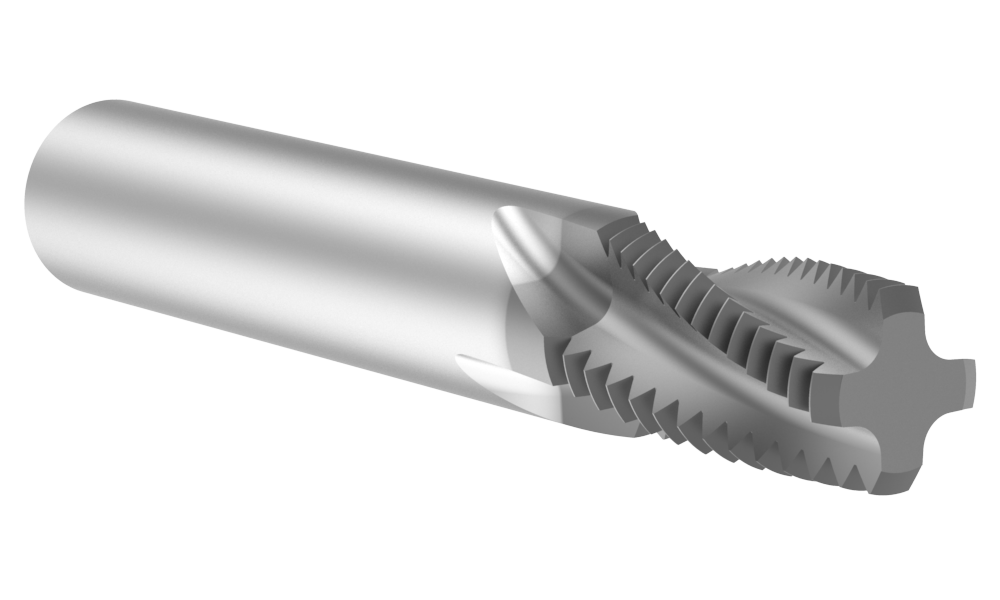

Angle

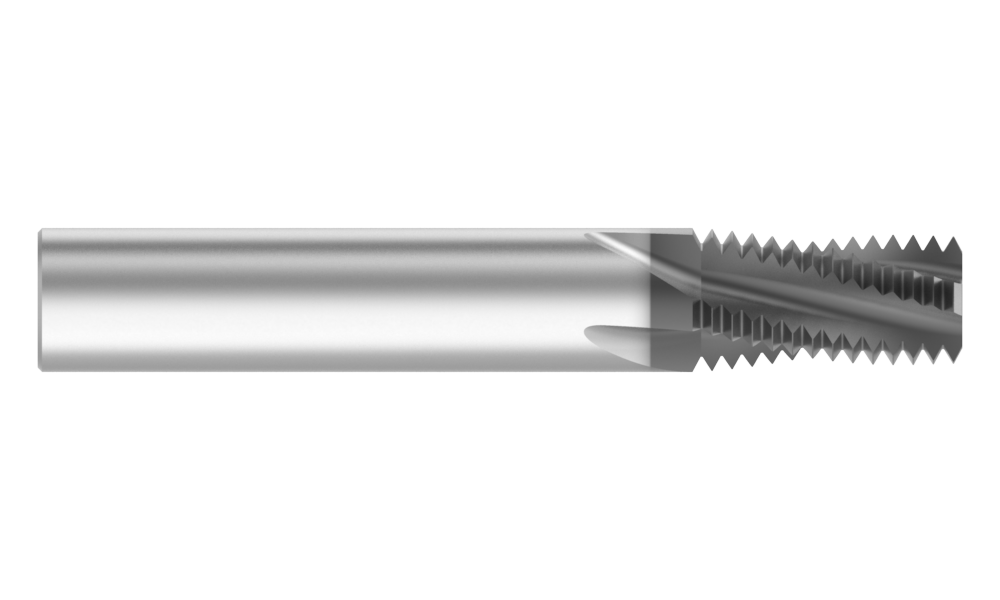

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 4
Shank Diameter (inch) 0.625
Shank Type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard NPT
Minimum Thread Size 1"
Pitch 11.5
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.62
Length of Cut (inch) 1.125
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.54
Weight in kg (each) 0.25
Category Stocked
