TMMK2400-300
AccuThread 856® Solid Carbide Threadmill: ISO 3, M24, Helical 4 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information

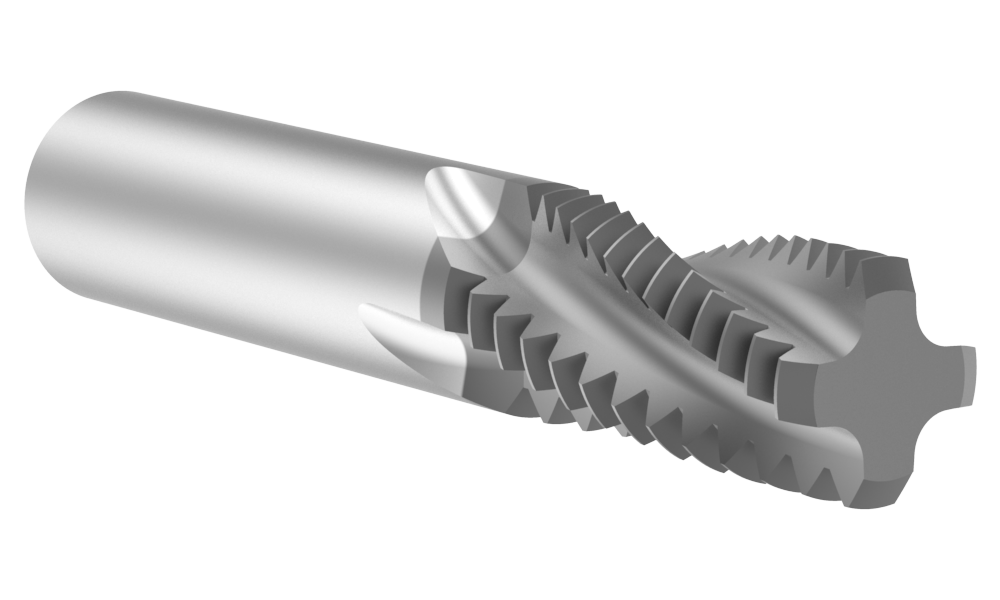

Default Image
Angle

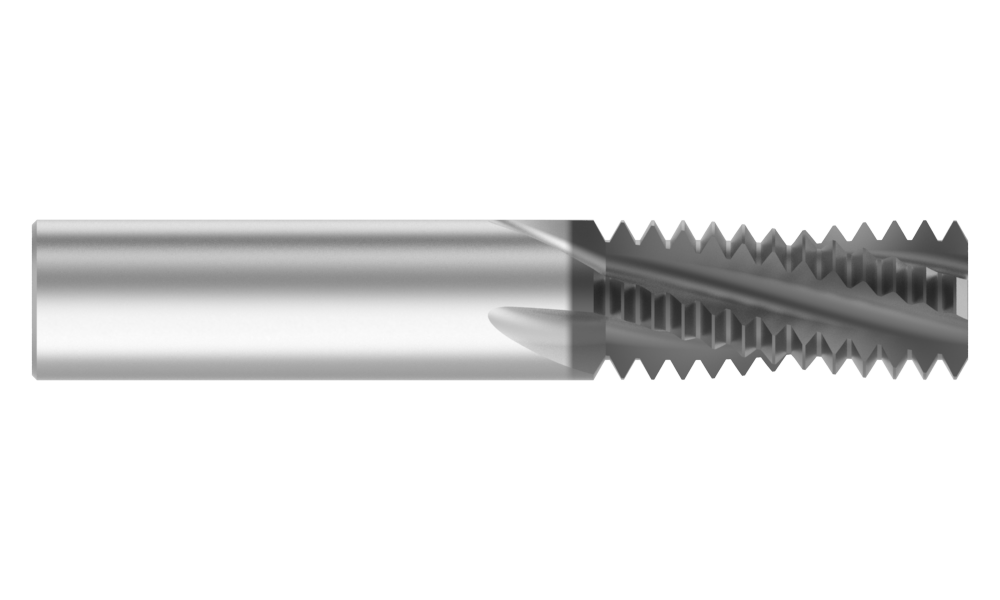

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 4
Shank Diameter (inch) 0.625
Shank Type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard ISO
Minimum Thread Size M24
Pitch 3
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.62
Length of Cut (inch) 1.375
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.53
Weight in kg (each) 0.24
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 1.190 lbs
Recycleable? Yes
Contains PFAS? No
