TMMK0500-080
AccuThread 856® Solid Carbide Threadmill: ISO 0.8, M5, Helical 3 Flute, AM210®
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information

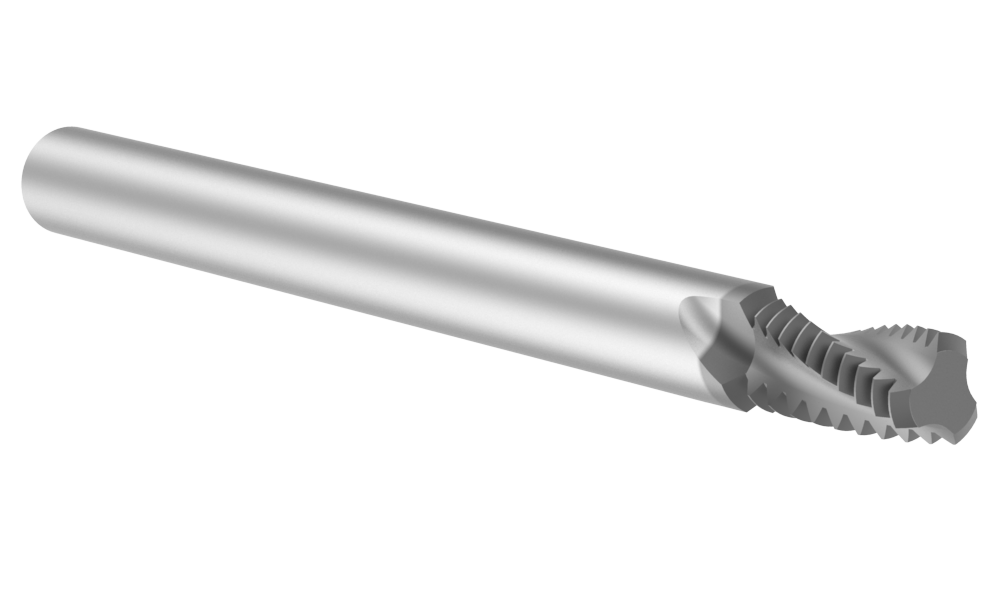

Default Image
Angle

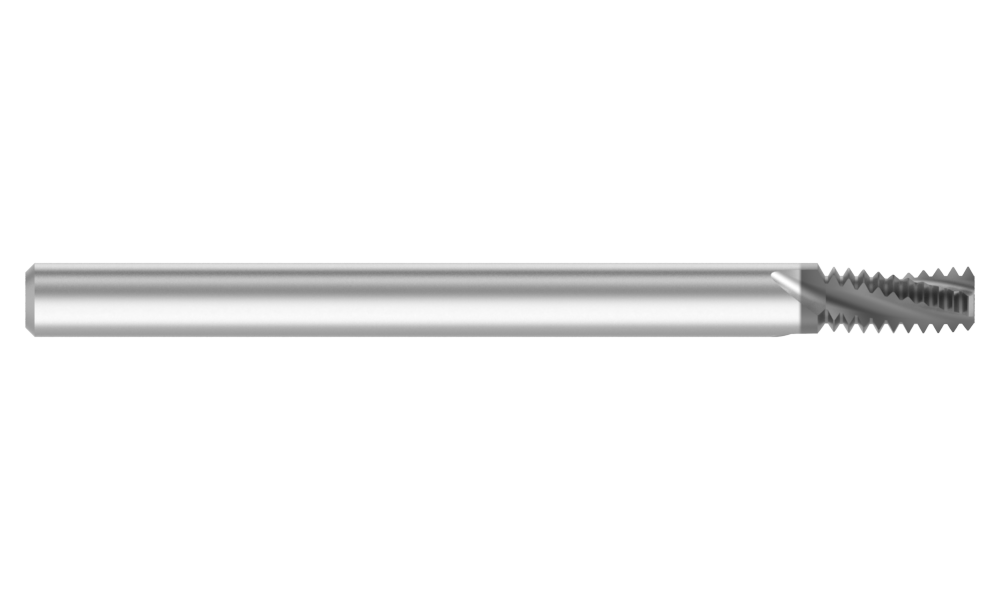

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 2
Shank Diameter (inch) 0.125
Shank Type Cylindrical
Coating AM210®
Material Carbide
Flute Type Helical
Thread Standard ISO
Minimum Thread Size M5
Pitch 0.8
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter (inch) 0.12
Length of Cut (inch) 0.312
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.01
Weight in kg (each) 0
Category Stocked
