TMAU1063-12
AccuThread 856® Solid Carbide Threadmill: UN 12, 1-1/16", Helical 4 Flute, Uncoated
AccuThread® 856 Solid

Add to cart image Add to list image







See Additional Technical Information
Default Image

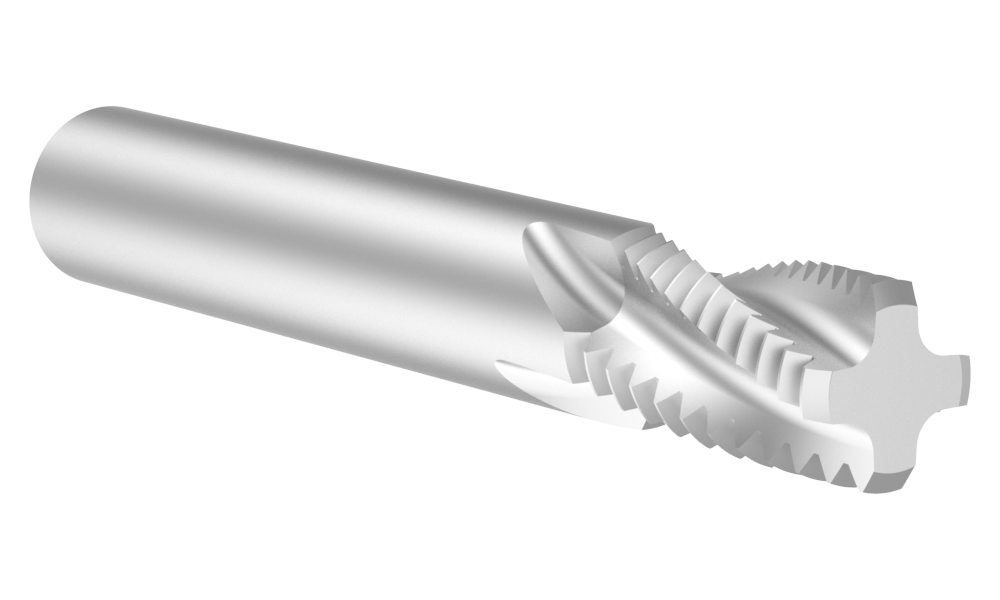

Angle

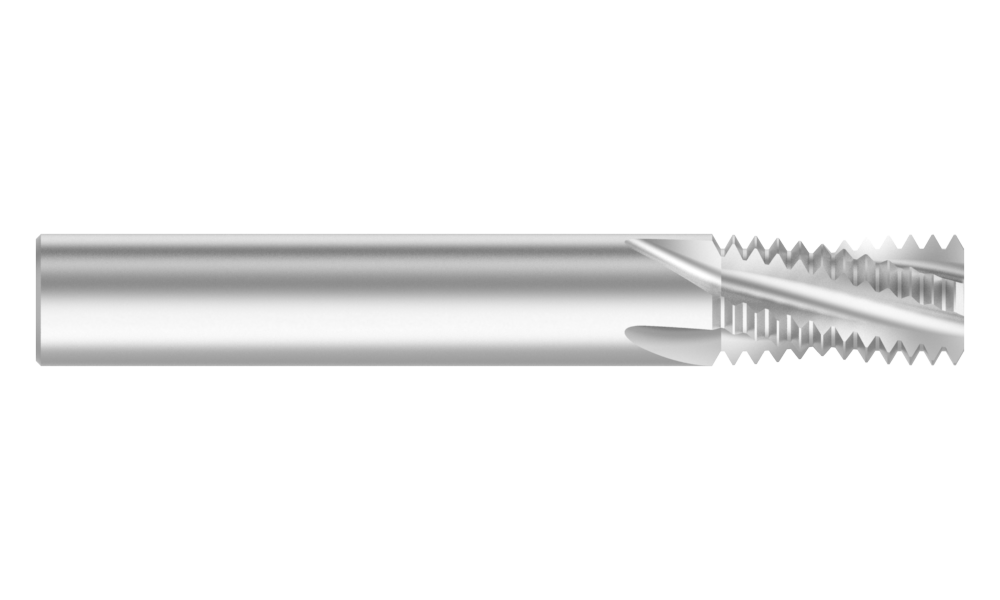

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 3.5
Shank Diameter (inch) 0.500
Shank Type Cylindrical
Coating Uncoated
Material Carbide
Flute Type Helical
Thread Standard UN
Minimum Thread Size 1-1/16"
Pitch 12
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.495
Length of Cut (inch) .917
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.32
Weight in kg (each) 0.15
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
