TM30350CH
ThreadMills USA® Solid Carbide Threadmill: ISO 3.5, M30, Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

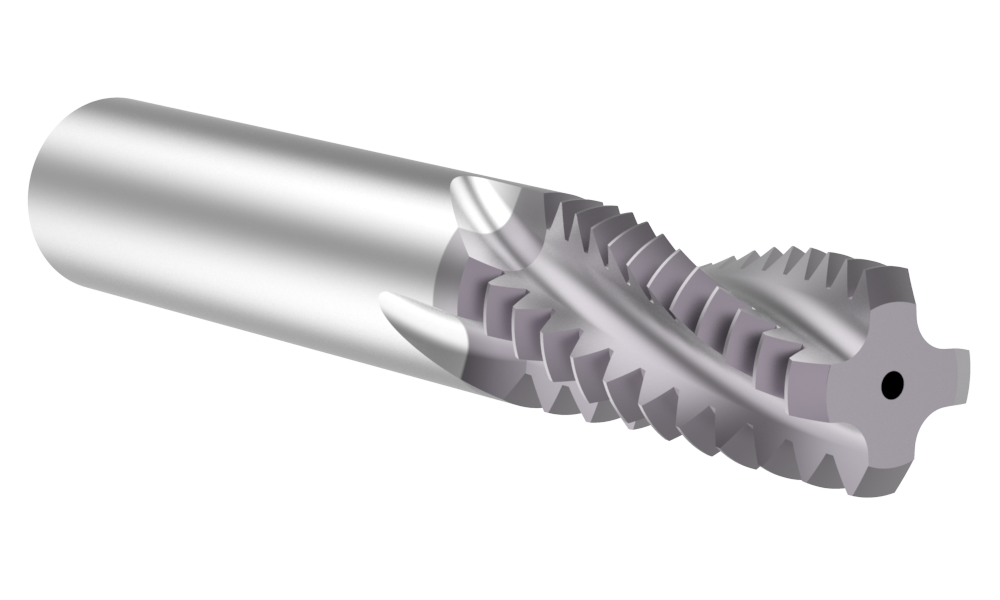

Default Image
Angle

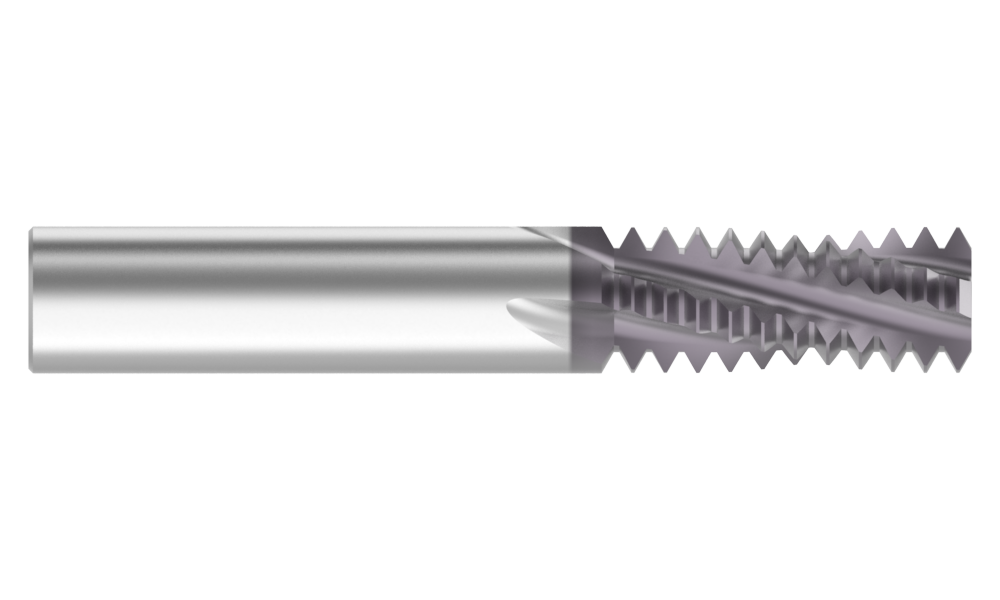

Side
Product Specifications
Pitch 3.5
Cutter Diameter (inch) 0.62
Flute Type Helical
Material Carbide
Coating TiAlN
Coolant Through Yes
Overall Length (inch) 4
Length of Cut (inch) 1.516
Shank Type Cylindrical
Shank Diameter (inch) 0.625
Type of Product Solid Carbide Threadmill
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.51
Weight in kg (each) 0.23
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.015 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.031 lbs
Recycleable? Yes
Contains PFAS? No
