TM28BSPPCH

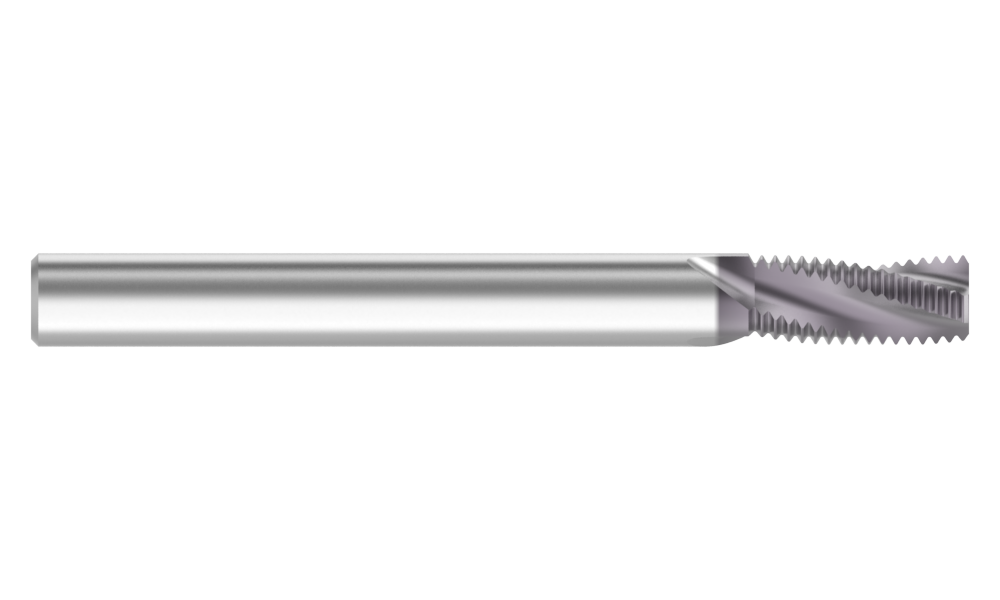

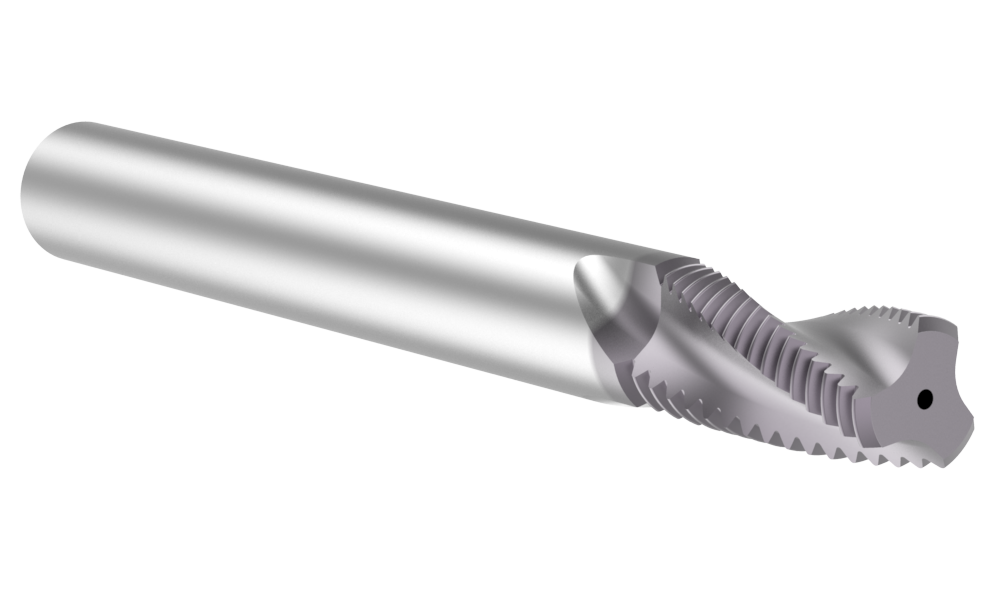

ThreadMills USA® Solid Carbide Threadmill: BSPP 28, 1/16" and 1/8", Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 2.375
Shank Diameter (inch) 0.250
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard BSPP
Minimum Thread Size 1/16" and 1/8"
Pitch 28
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter (inch) 0.24
Length of Cut (inch) 0.572
Coolant Through Yes
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
