TM27NPTF
ThreadMills USA® Solid Carbide Threadmill: NPTF 27, 1/16" and 1/8", Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

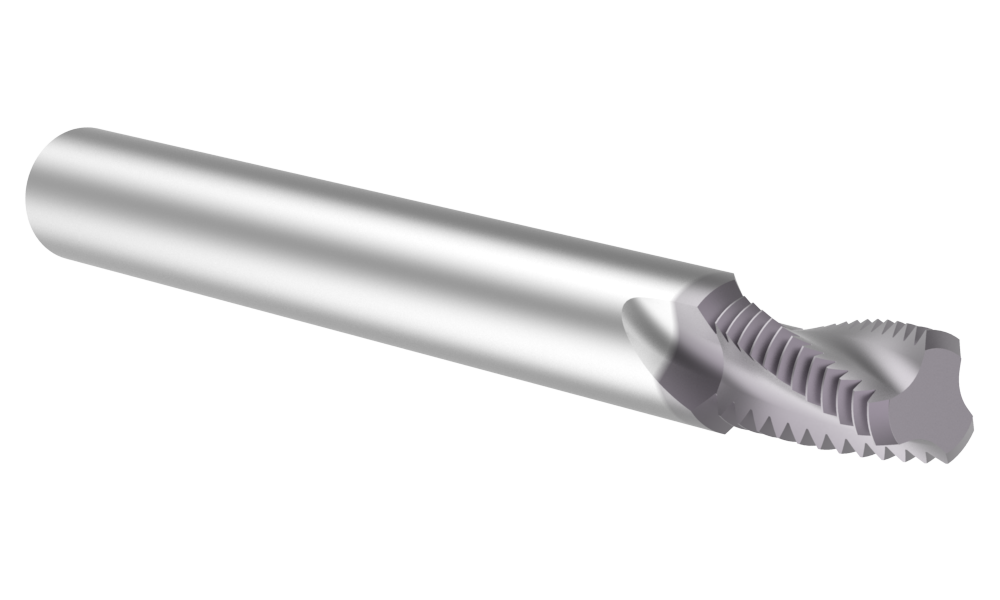

Angle

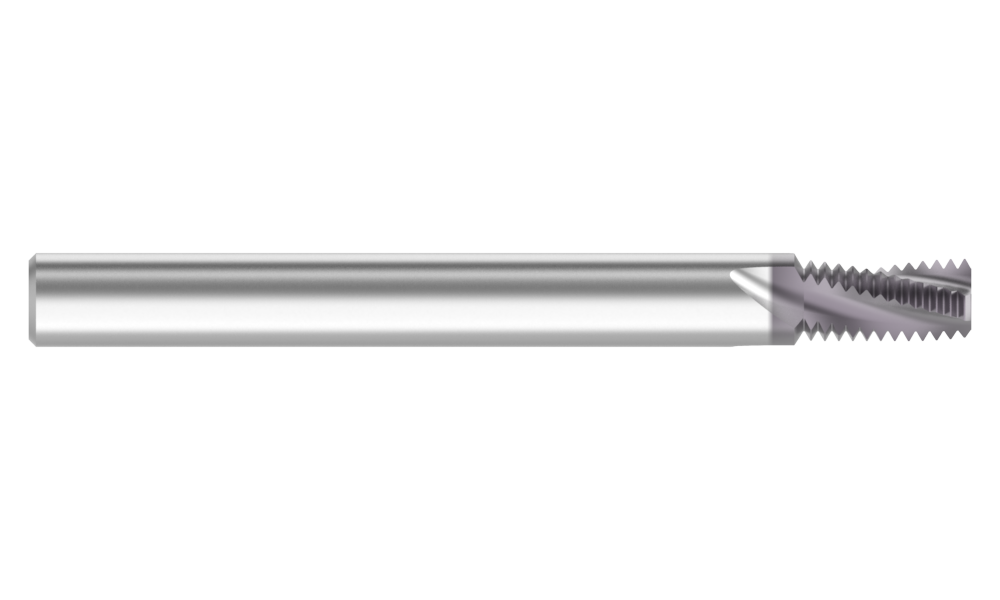

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 2.5
Shank Diameter (inch) 0.250
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPTF
Minimum Thread Size 1/16" and 1/8"
Pitch 27
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter (inch) 0.245
Length of Cut (inch) 0.437
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.06
Weight in kg (each) 0.03
Category Stocked
