TM25020CH
ThreadMills USA® Solid Carbide Threadmill: UN 20, 1/4", Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

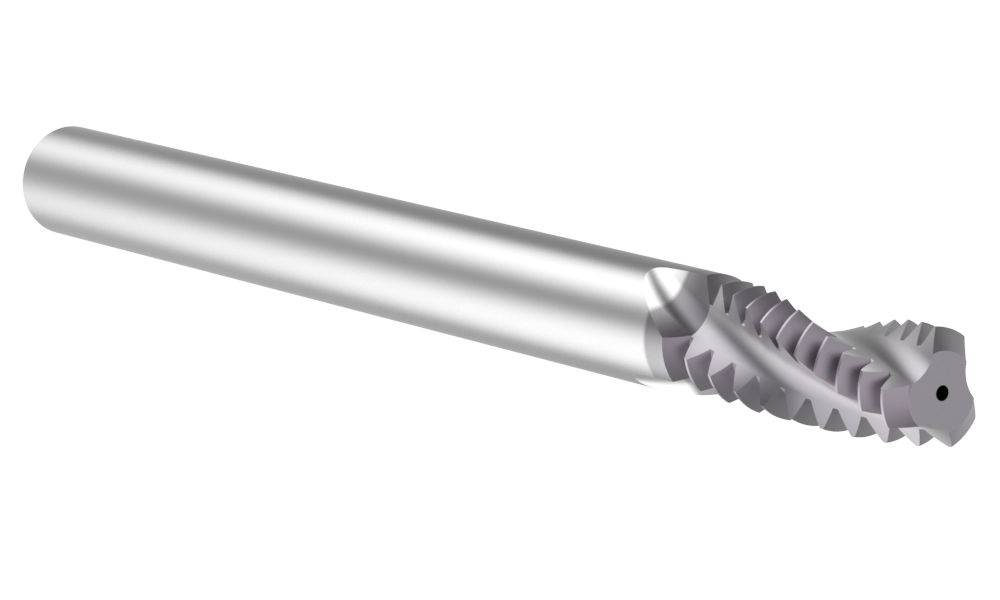

Default Image
Angle

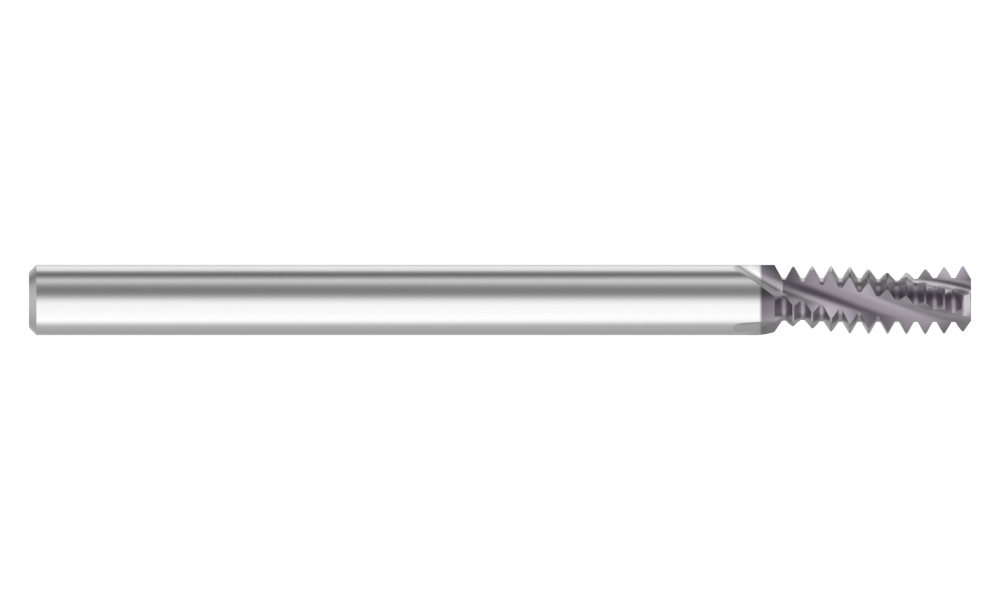

Side
Product Specifications
Pitch 20
Cutter Diameter (inch) 0.18
Flute Type Helical
Material Carbide
Coating TiAlN
Coolant Through Yes
Overall Length (inch) 2.375
Length of Cut (inch) 0.5
Shank Type Cylindrical
Shank Diameter (inch) 0.187
Type of Product Solid Carbide Threadmill
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.03
Weight in kg (each) 0.01
Category Stocked
