TM24300-3T3X
AccuThread® T3 Solid Carbide Threadmill: ISO 3, M24, Helical 4 Flute, AM210®
AccuThread® T3

Add to cart image Add to list image

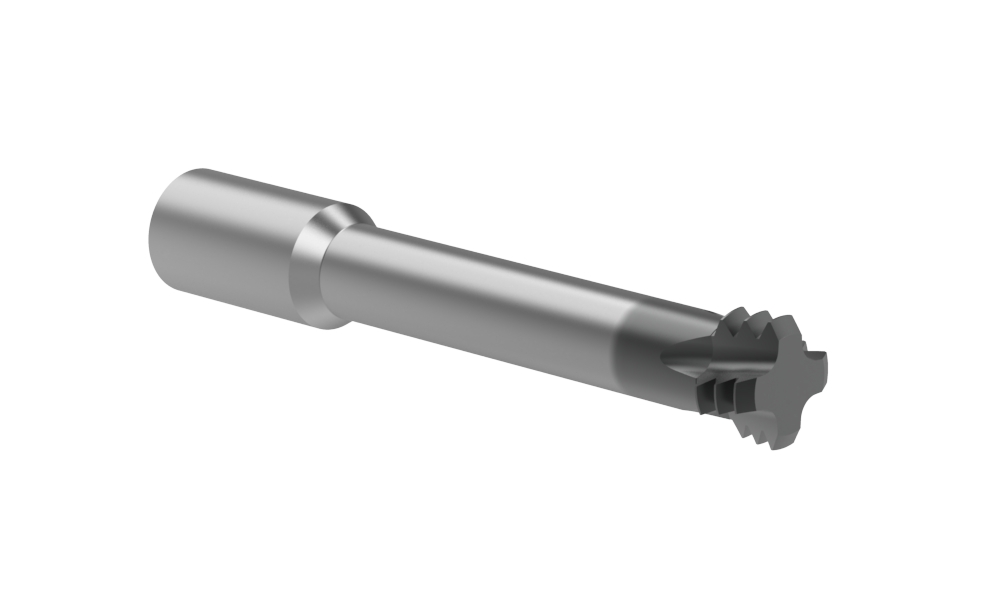

Default Image
Angle

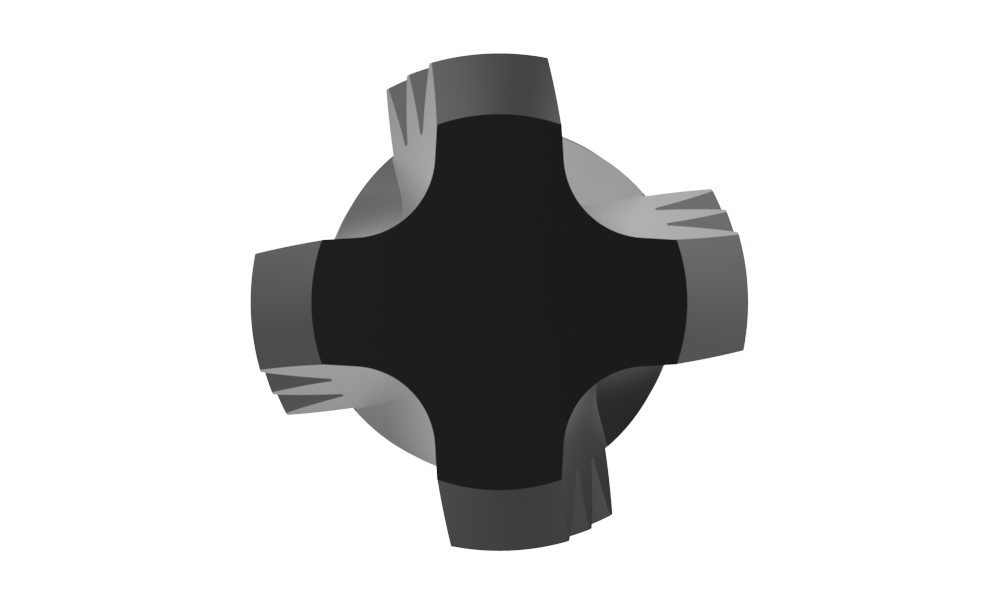

Front

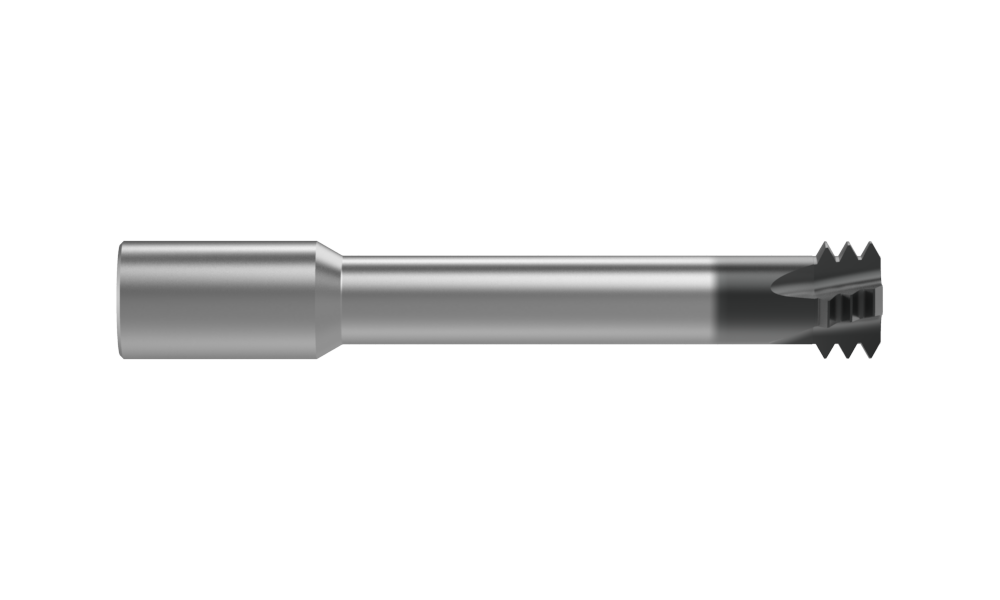

Side
Product Specifications
Thread Style Internal/External
Depth to Diameter 3X
Weldon Flat (Yes/No) No
Material Carbide
Shank Diameter (inch) 0.625
Pitch 3
Overall Length (inch) 4.5
Number of Flutes 4
Coating AM210®
Shank Type Cylindrical
Type of Product Solid Carbide Threadmill
Minimum Thread Size M24
Length of Cut (inch) 2.83
Flute Type Helical
Cutting Direction Left Hand (M04)
Thread Standard ISO
Cutter Diameter (inch) 0.62
Coolant Through No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.45
Weight in kg (each) 0.2
Category Stocked
