TM18BSWM
ThreadMills USA® Solid Carbide Threadmill: BSW 18, 5/16", Helical 3 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

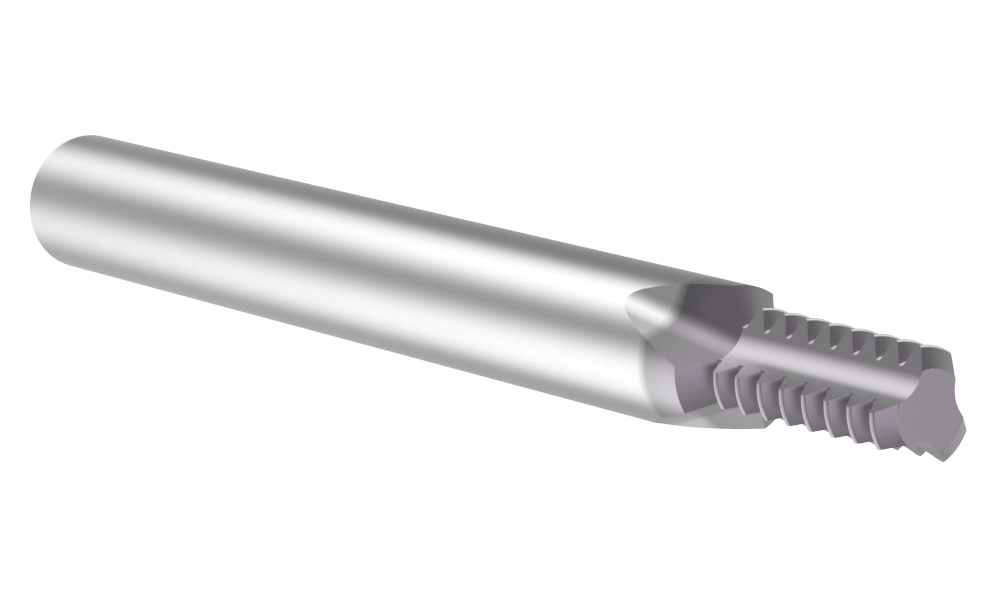

Default Image
Angle

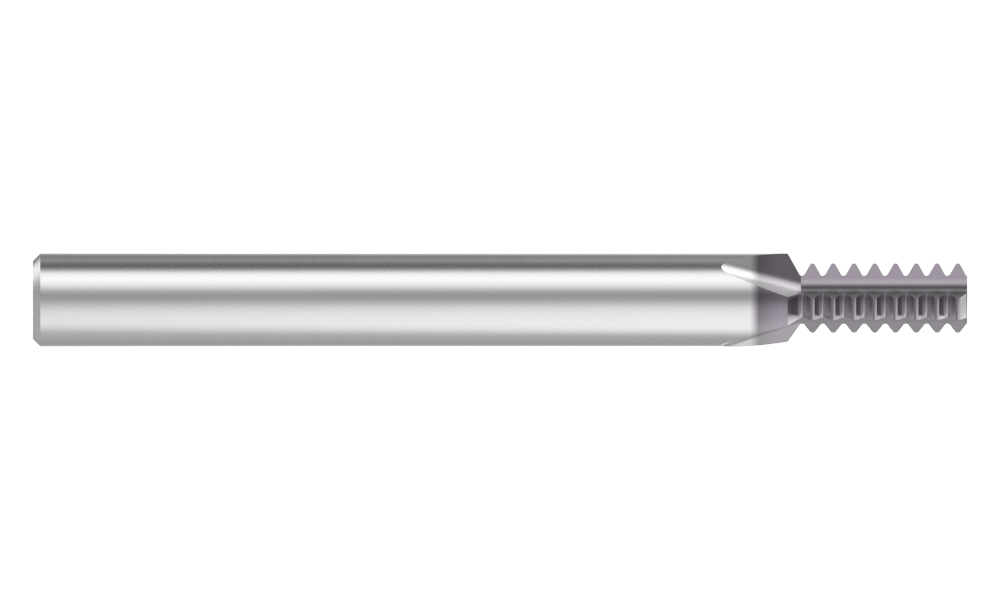

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall length mm 58
Shank diameter mm 6
Shank type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard BSW
Minimum Thread Size 5/16"
Pitch 18
Number of Flutes 3
Thread Style Internal/External
Cutter Diameter mm 5
Length of cut mm 11.29
Weldon Flat No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.05
Weight in kg (each) 0.02
Category Stocked
