TM14NPS
ThreadMills USA® Solid Carbide Threadmill: NPS 14, 1/2" and 3/4", Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

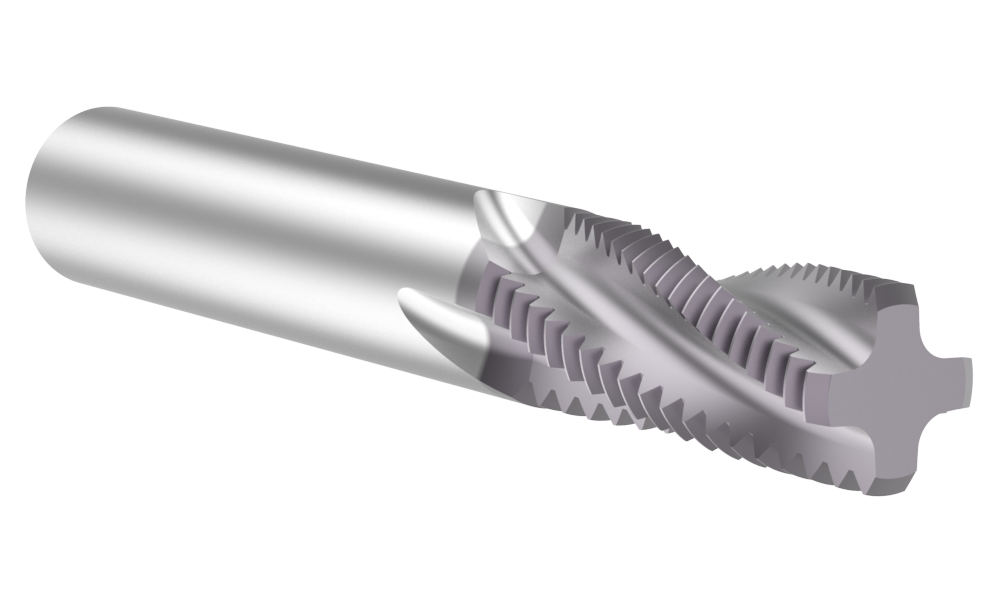

Angle

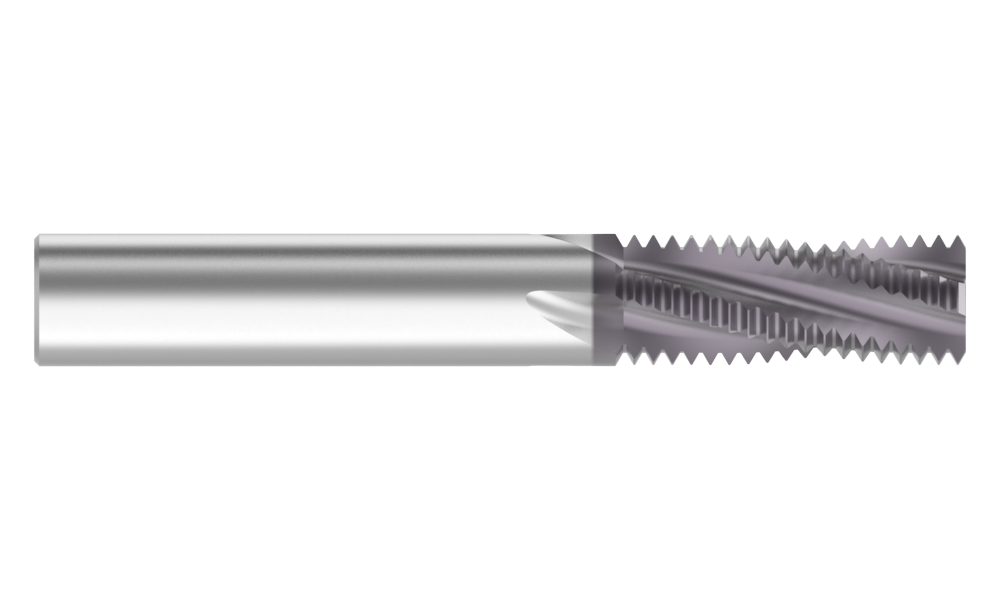

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 3.5
Shank Diameter (inch) 0.500
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPS
Minimum Thread Size 1/2" and 3/4"
Pitch 14
Number of Flutes 4
Thread Style Internal
Cutter Diameter (inch) 0.49
Length of Cut (inch) 1.288
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.3
Weight in kg (each) 0.14
Category Stocked
