TM10050
ThreadMills USA® Solid Carbide Threadmill: ISO 0.5, M10, Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information
Default Image

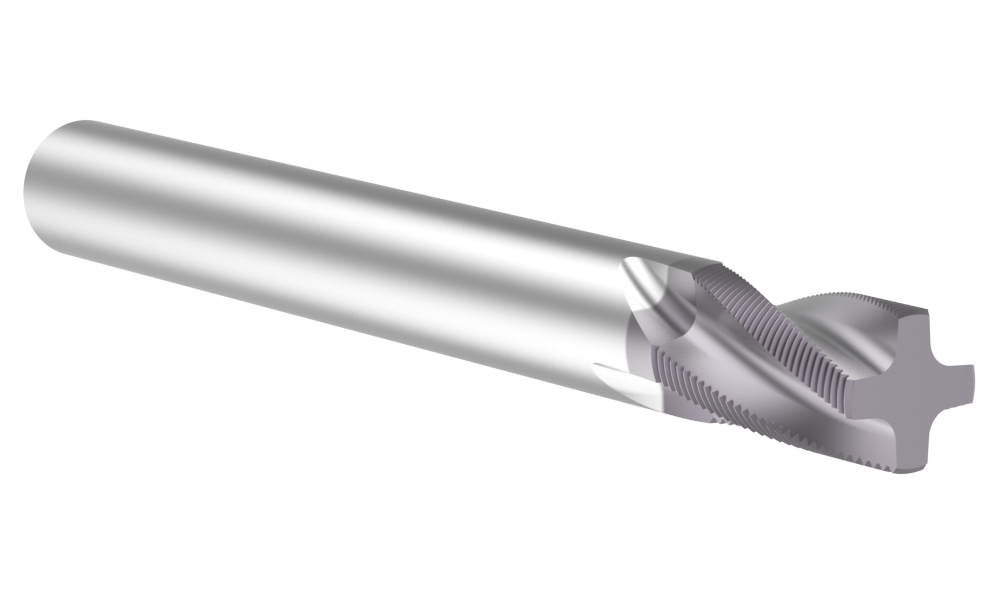

Angle

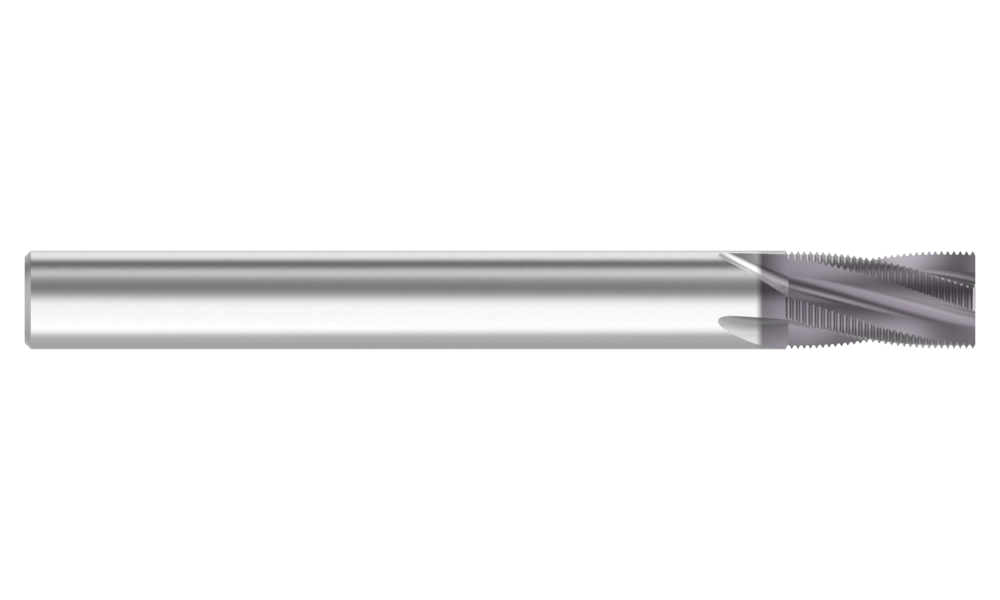

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 3
Shank Diameter (inch) 0.312
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard ISO
Minimum Thread Size M10
Pitch 0.5
Number of Flutes 4
Thread Style Internal/External
Cutter Diameter (inch) 0.31
Length of Cut (inch) 0.591
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.11
Weight in kg (each) 0.05
Category Stocked
