THP-0932-1F150

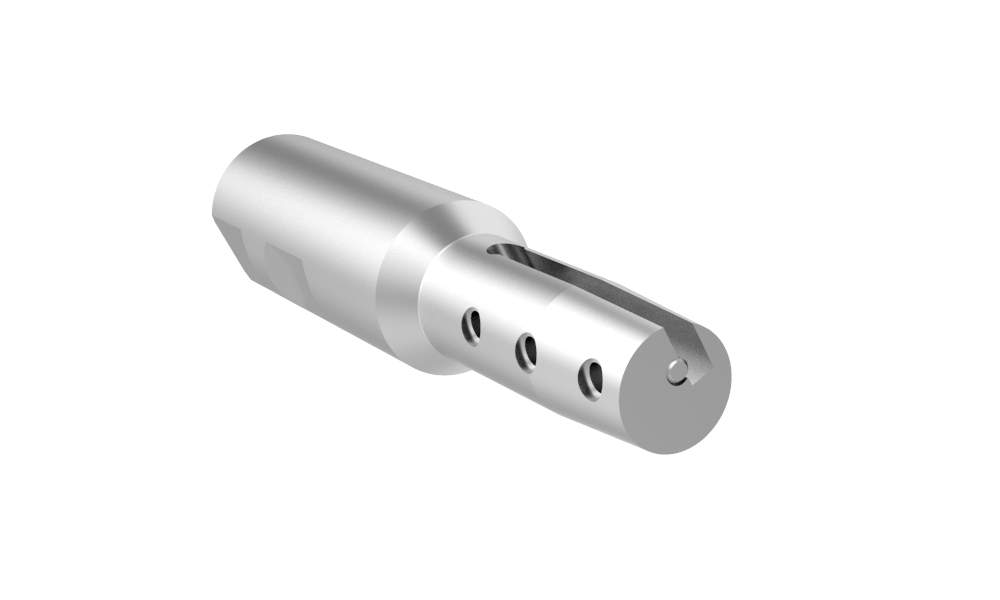

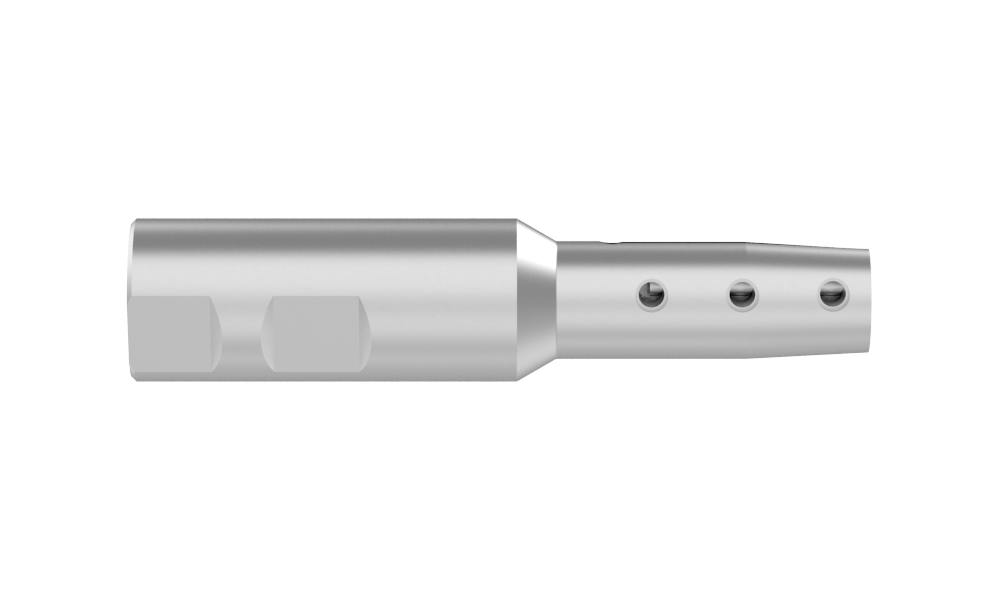

AccuThread 856® Indexable Threadmill Holder: Pin & Screw, 1 Flute, Positive, Weldon Shank
AccuThread® 856 Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle
Front
Side
Product Specifications
Type of Product Indexable Threadmill Holder
Overall Length (inch) 4.5
Shank Diameter (inch) 1
Insert Prefix TN150K-
Shank Type Weldon
Geometry Positive
Pilot Diameter (inch) 0.722
Material Stainless
Flute Length (inch) 1.90
Number of Flutes 1
Connection Style Pin & Screw
Cutter Diameter (inch) 0.932
Insert Length (inch) 1.5
Oversize Cutter Diameter (inch) 1.063
Form Type Straight or Tapered
Key Size 3/32
Related Items
ImageNotAvailable.png 3/32" Hex Key (Qty0)
Insert Screw Driver
Threadmills\Accessories\Pin\Pin_Angle.png TMP-2 (Qty0)
Replacement Pin
TM PIN
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.616
Weight in kg (each) 0.28
Category Stocked
