OP4-1S-HSK63
Opening Drill® Indexable Drill Body: 104.65 mm - 142.75 mm, Short, HSK 63A/C Shank
Opening Drill® Holder

Add to cart image Add to list image







See Additional Technical Information

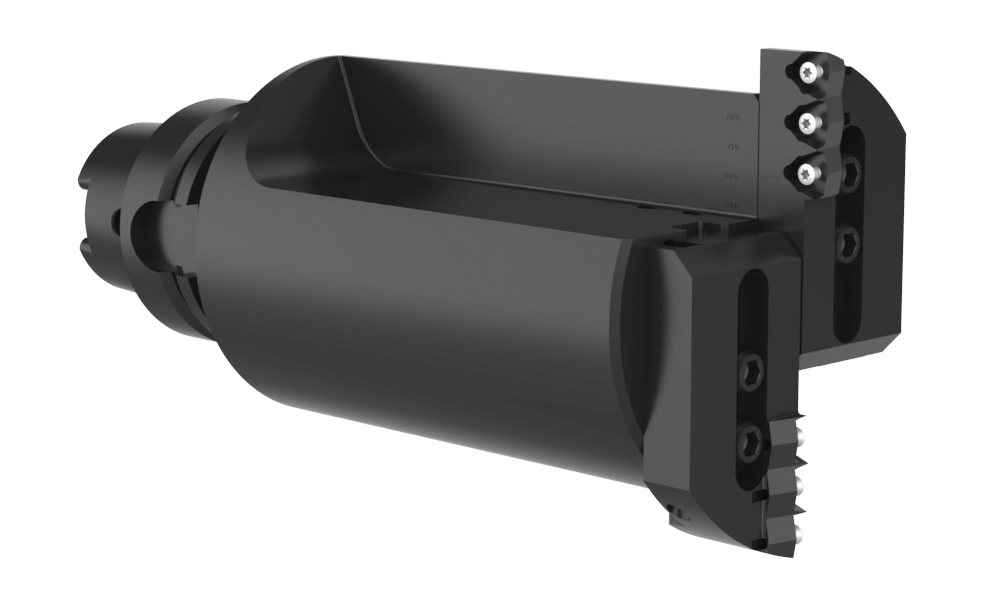

Default Image
Angle

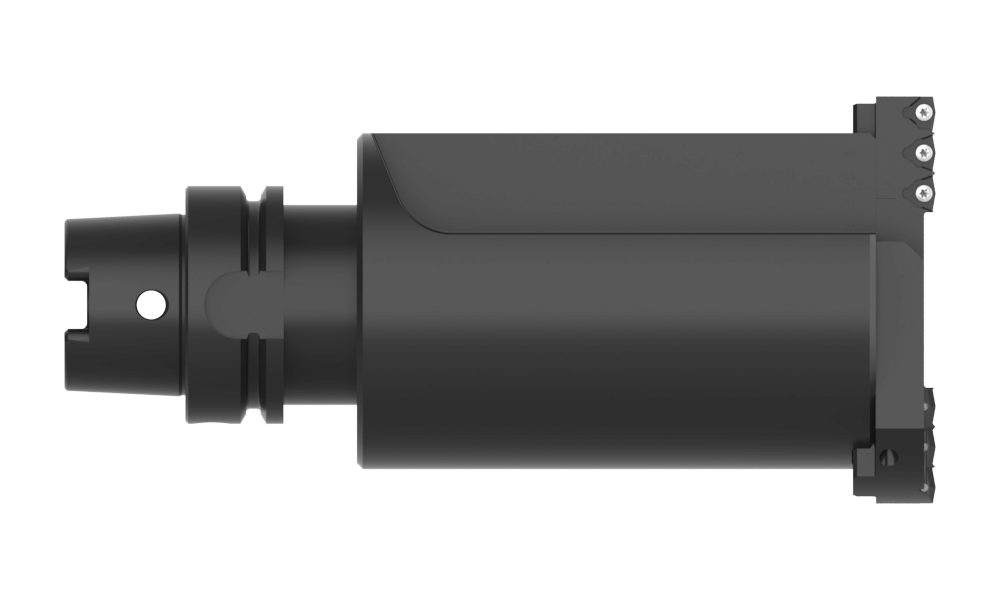

Front

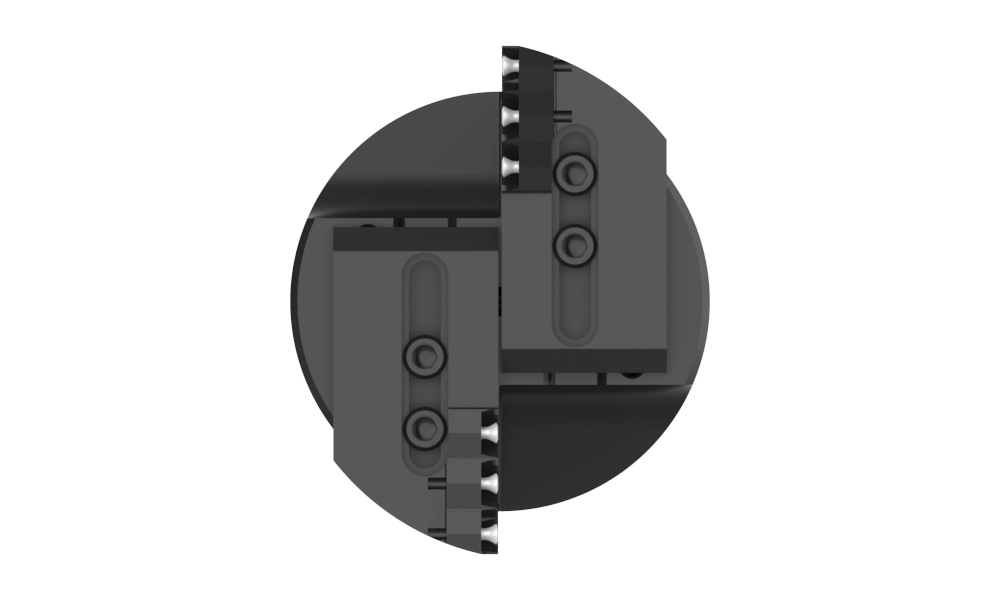

Head

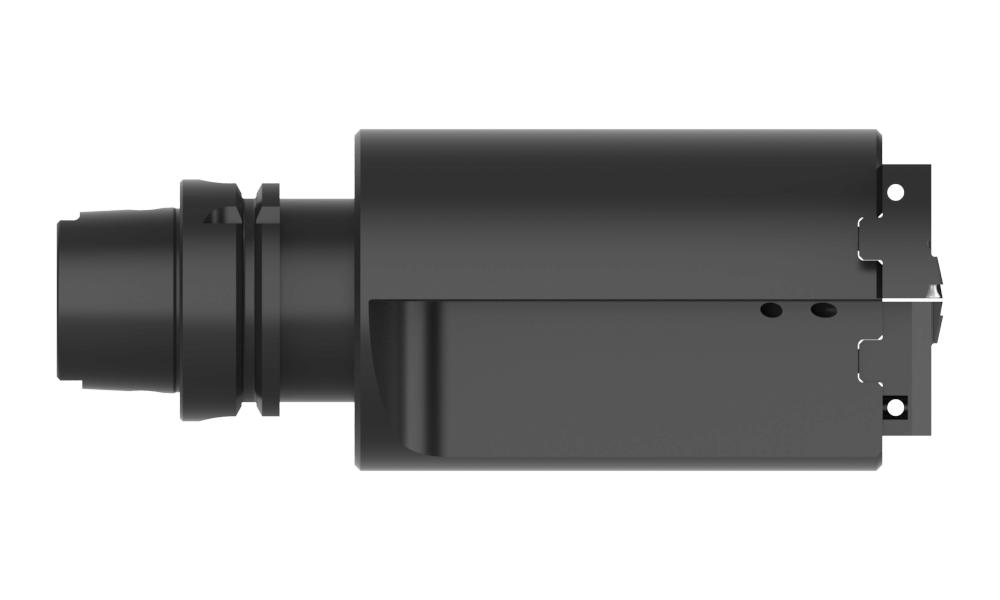

Top
Product Specifications
Series OP4
Quantity of Inserts 6
Minimum diameter mm 104.65
Maximum diameter mm 142.75
Body Diameter mm 88.9
Length Type Short
Flute Type Straight
Gage length mm 199.6
Drill depth mm 127.4
Shank type HSK 63A/C
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Related Items
ImageNotAvailable.png 5mm Hex Key (Qty0)
Mounting Screw Driver
\Accessories\Torx Drivers\TORX-DRIVER.png 8T-9 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
Accessories\Adjusting Screw\Adjusting Screw_Angle.png AS-14T9-1 (Qty0)
Replacement Adjusting Screw
OP4 ADJ SCREW
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Accessories\Mounting Screw\Mounting Screw_Angle.png MS-15M-1 (Qty0)
Replacement Mounting Screw
OP2 / OP3 / OP4 MOUNT SCREW
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 13.87
Weight in kg (each) 6.3
Category Stocked
