OP2-1S-HSK63
Opening Drill® Indexable Drill Body: 63.50 mm - 76.20 mm, Short, HSK 63A/C Shank
Opening Drill® Holder

Add to cart image Add to list image







See Additional Technical Information

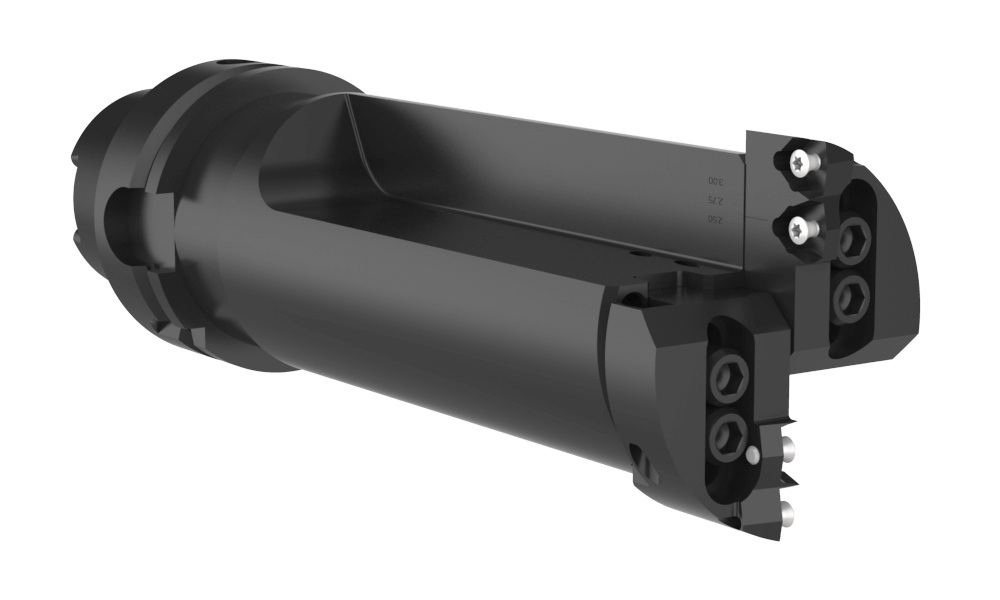

Default Image
Angle

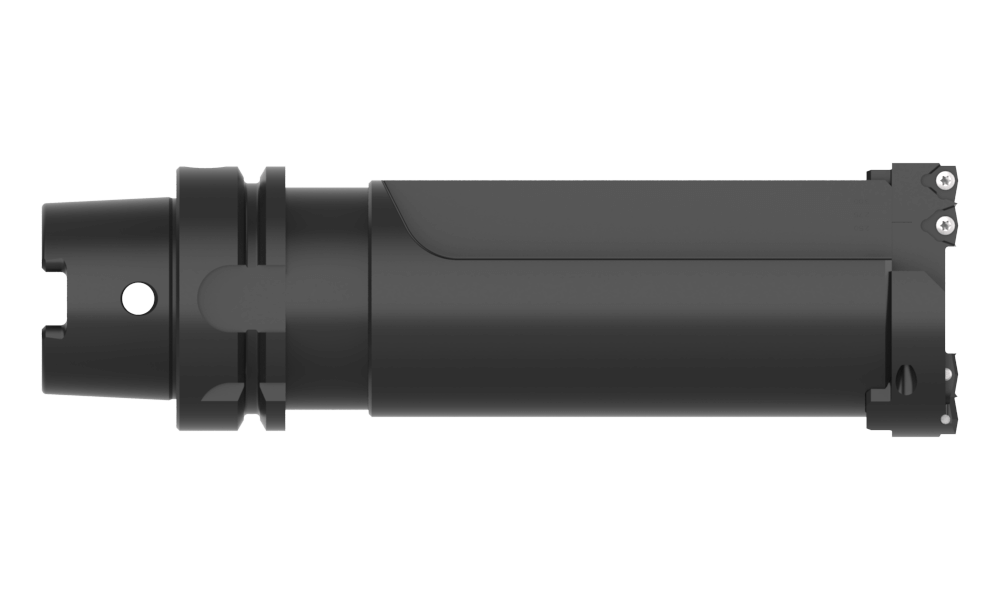

Front

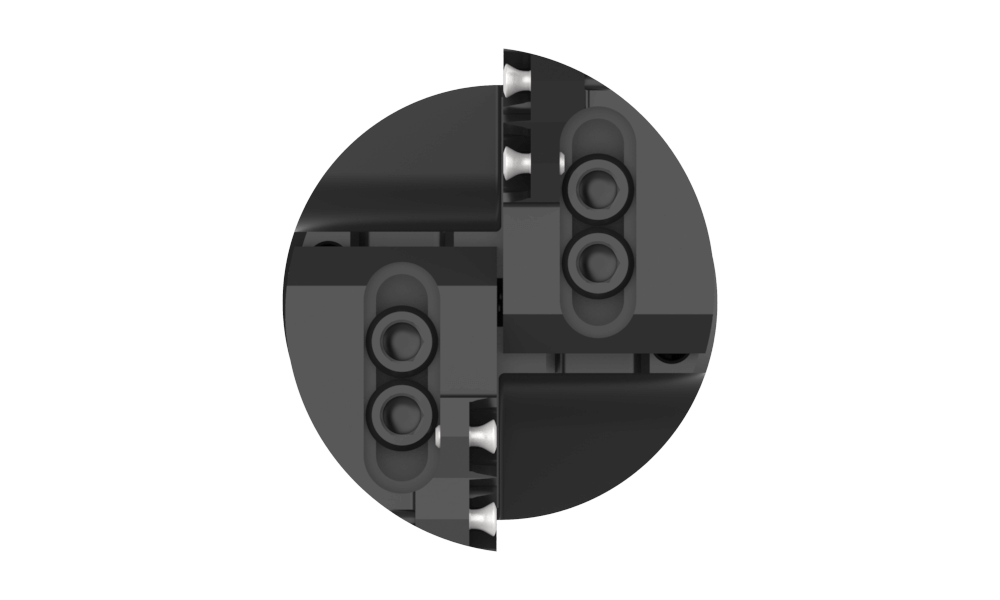

Head

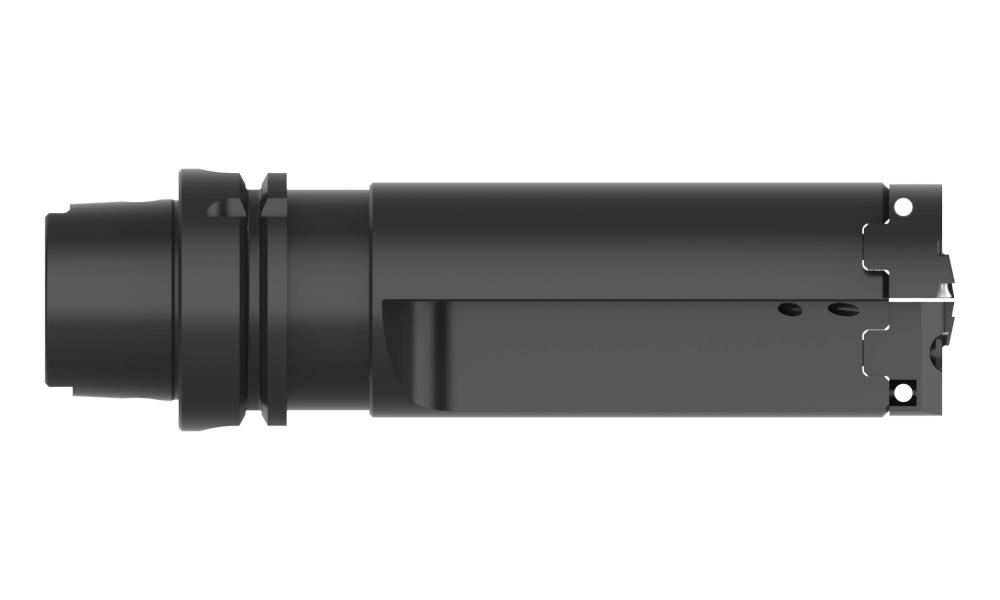

Top
Product Specifications
Series OP2
Quantity of Inserts 4
Minimum diameter mm 63.50
Maximum diameter mm 76.20
Body Diameter mm 56.4
Length Type Short
Flute Type Straight
Gage length mm 186.9
Drill depth mm 118.5
Shank type HSK 63A/C
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Related Items
ImageNotAvailable.png 5mm Hex Key (Qty0)
Mounting Screw Driver
\Accessories\Torx Drivers\TORX-DRIVER.png 8T-9 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
Accessories\Adjusting Screw\Adjusting Screw_Angle.png AS-10T9-1 (Qty0)
Replacement Adjusting Screw
OP1 / OP2 ADJ SCREW
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Accessories\Mounting Screw\Mounting Screw_Angle.png MS-15M-1 (Qty0)
Replacement Mounting Screw
OP2 / OP3 / OP4 MOUNT SCREW
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 6.64
Weight in kg (each) 3.01
Category Stocked
