OP1-1L-HSK63
Opening Drill® Indexable Drill Body: 50.80 mm - 63.50 mm, Long, HSK 63A/C Shank
Opening Drill® Holder

Add to cart image Add to list image







See Additional Technical Information

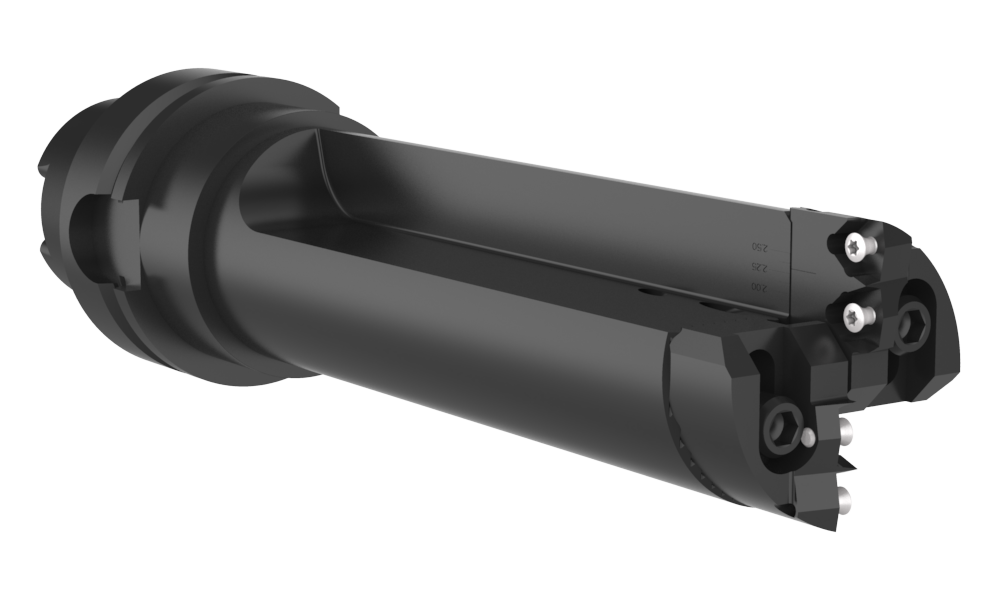

Default Image
Angle

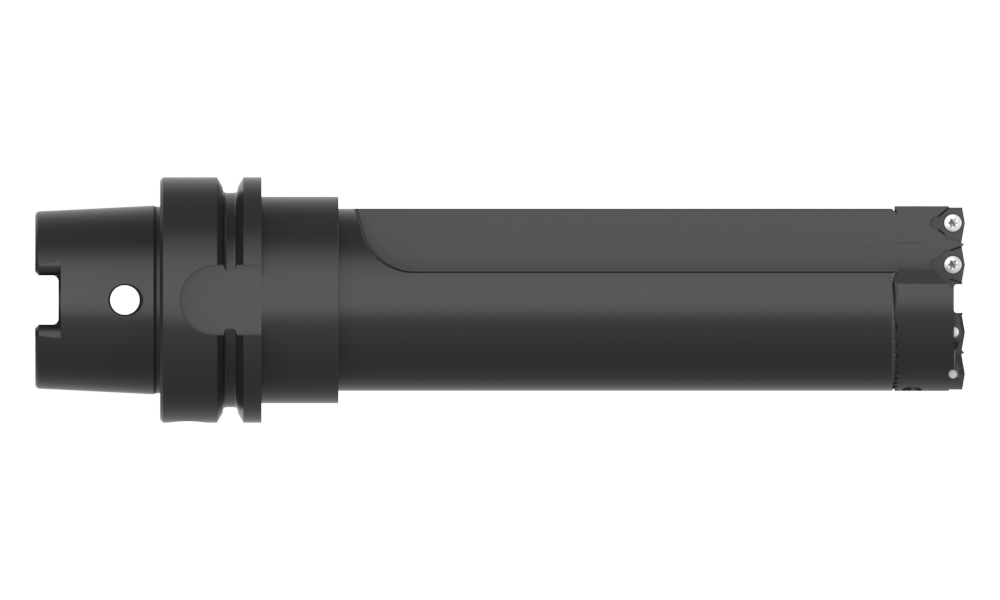

Front

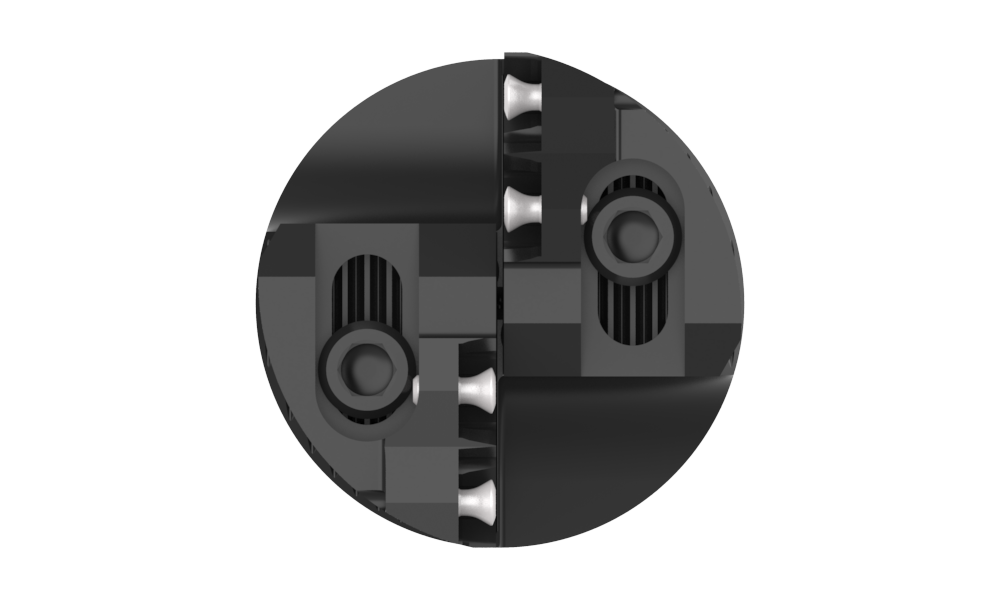

Head

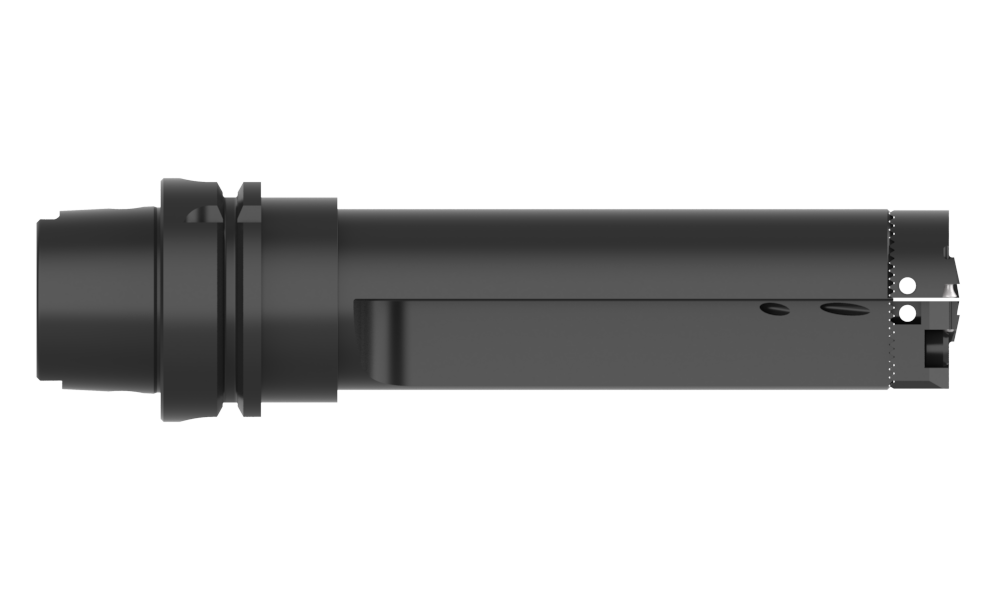

Top
Product Specifications
Series OP1
Quantity of Inserts 4
Minimum Diameter (mm) 50.80
Maximum Diameter (mm) 63.50
Body Diameter (mm) 46.7
Length Type Long
Flute Type Straight
Gage Length (mm) 207.3
Drill Depth (mm) 140.6
Shank Type HSK 63A/C
Type of Product Indexable Drill Body
Product Application Large Diameter Drilling
Related Items
ImageNotAvailable.png 5mm Hex Key (Qty0)
Mounting Screw Driver
\Accessories\Torx Drivers\TORX-DRIVER.png 8T-9 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-9
Accessories\Adjusting Screw\Adjusting Screw_Angle.png AS-10T9-1 (Qty0)
Replacement Adjusting Screw
OP1 / OP2 ADJ SCREW
Accessories\Insert Screw\Insert Screw_Angle.png IS-10-1 (Qty0)
Replacement IC Insert Screw
OP DRILL INSERT SCREW
Accessories\Mounting Screw\Mounting Screw_Angle.png MS-13M-1 (Qty0)
Replacement Mounting Screw
OP1 MOUNT SCREW
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 5.85
Weight in kg (each) 2.66
Category Stocked
