I6149-10R1-25FM
AccuPort 432® Replaceable Port Form Body: ISO 6149-1, -10, Cylindrical
AccuPort 432® Holder

Add to cart image Add to list image







See Additional Technical Information

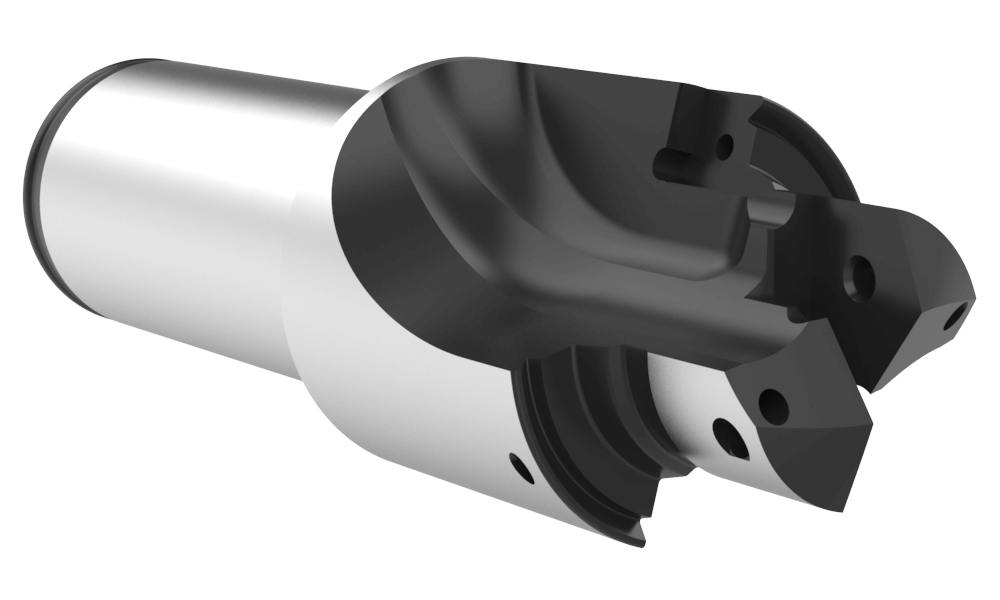

Default Image
Angle

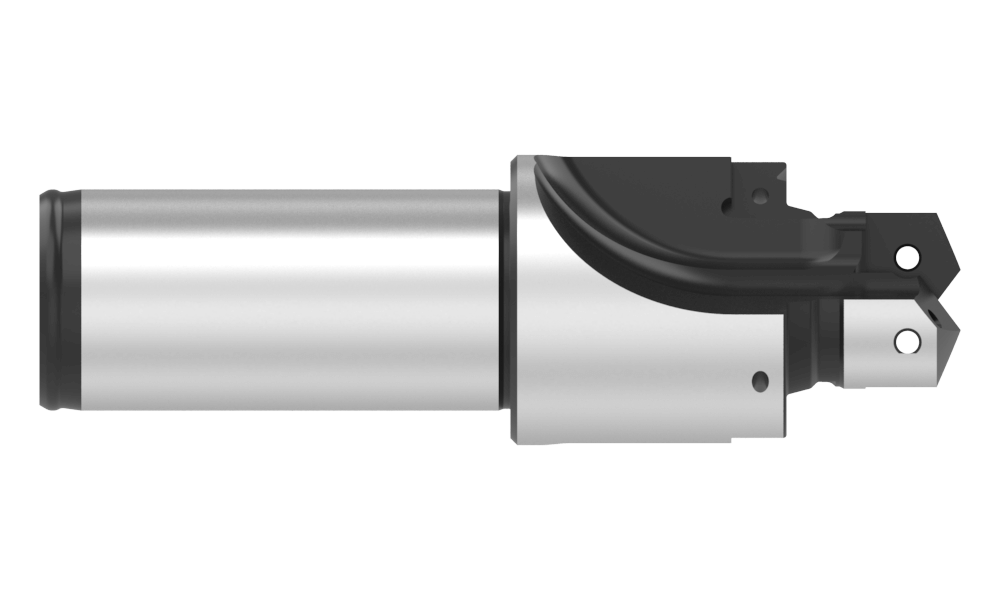

Front

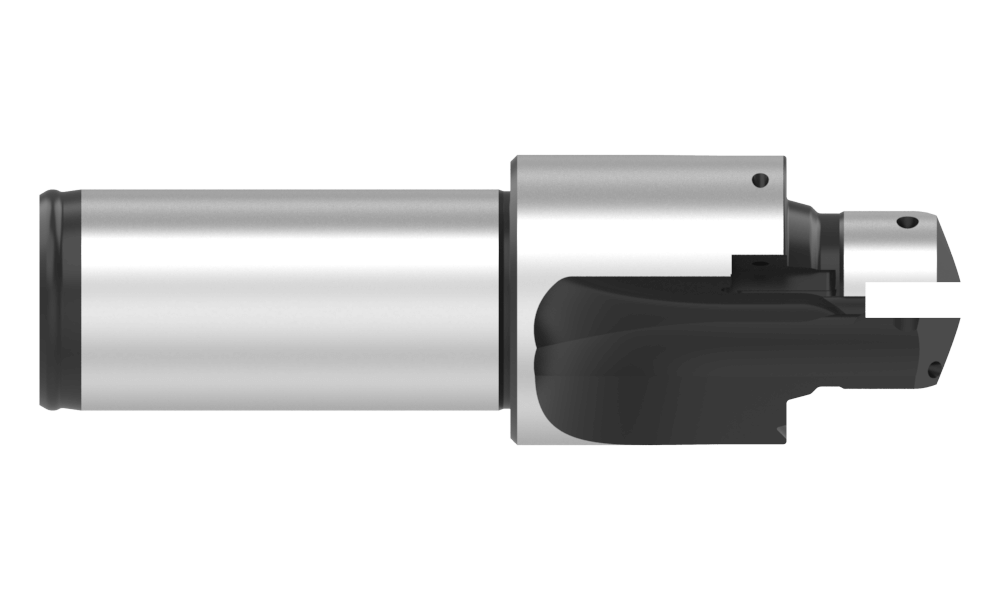

Top
Product Specifications
Specification ISO
Port Standard 6149-1
Tube Size -10
Ridge (Yes/No) Capable
Series 1
Spotface Diameter (mm) 33.97
Flute Type Straight
Overall Length (mm) 103.9
Tool Reference Length (mm) 54.4
Body Length (mm) 50.8
Step Length (mm) 18.4
Shank Type Cylindrical
Shank Diameter (mm) 25
Shank Length (mm) 53.09
Pipe Tap Rear (mm) 1/8 BSPT
Type of Product Indexable Port Form Holder
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72556-IP8-1 (Qty0)
Replacement AccuPort Insert Screw
0 KIT (1) TORX PLUS,CLASS 4H
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
AccuPort Insert Screw Driver
DRIVER, TORX PLUS HAND IP-8
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.78
Weight in kg (each) 0.35
Category Stocked
