HXT1024S-100F
GEN3SYS® XT Pro Replaceable Drill Body: 0.9447" - 1.0234", 10xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

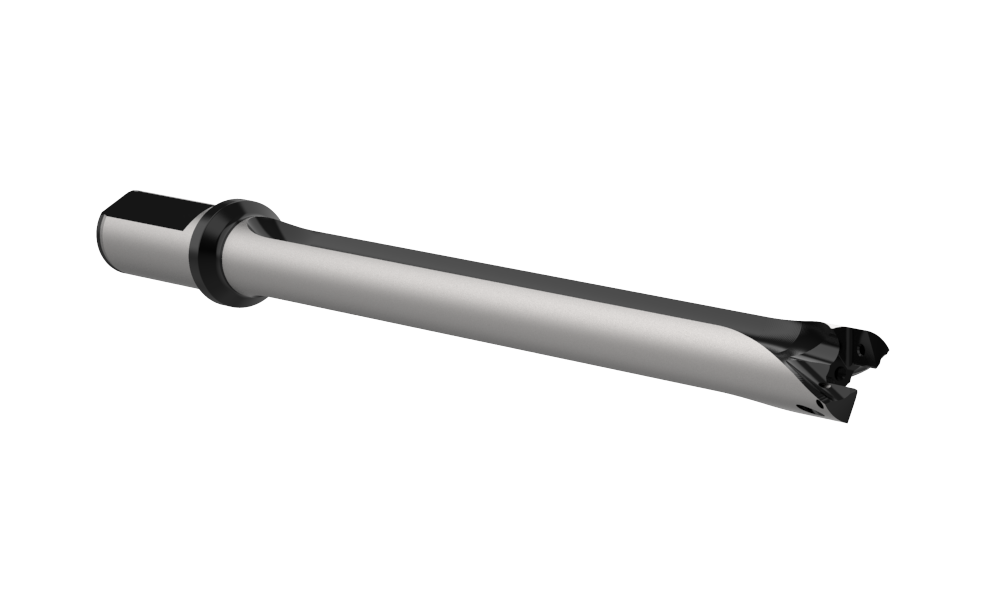

Default Image
Angle

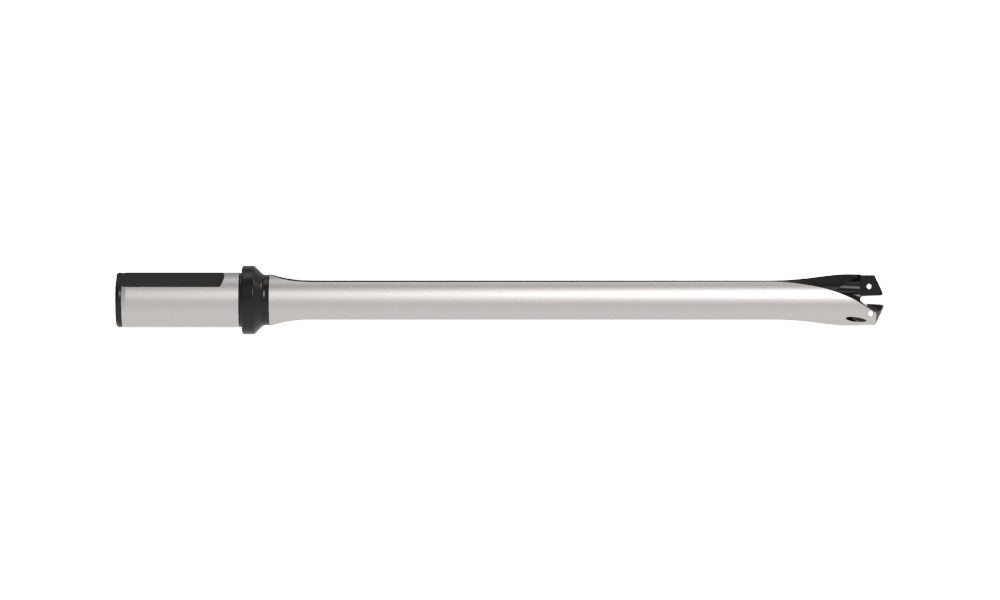

Front

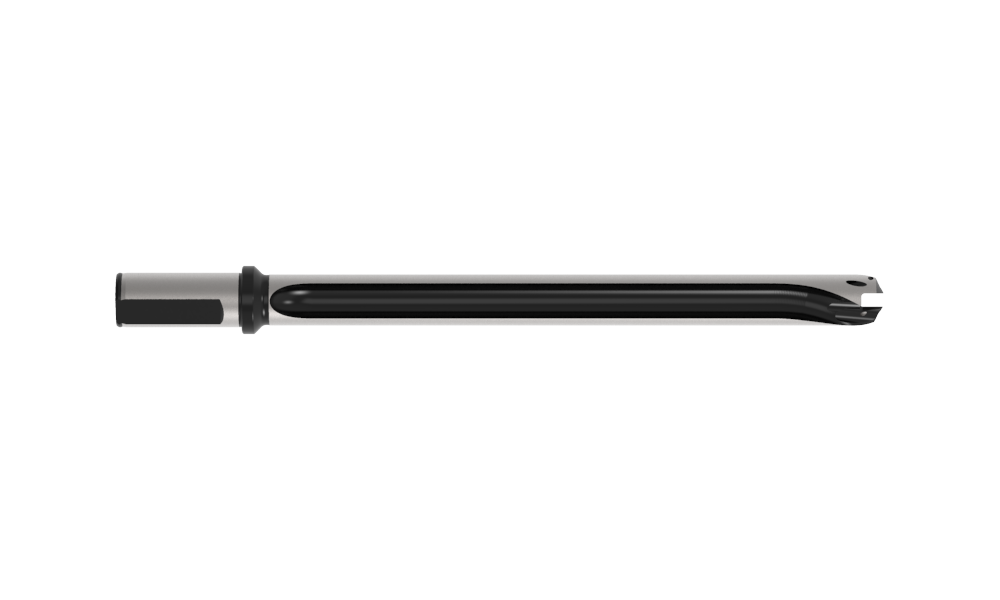

Top
Product Specifications
Series 24
Minimum diameter inch 0.9447
Maximum diameter inch 1.0234
Length Type 10xD
Flute Type Straight
Overall length inch 14.038
Tool Reference Length inch 11.758
Body length inch 11.643
Drill depth inch 10.232
Shank type Flanged
Shank diameter inch 1
Shank length inch 2.280
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.95
Weight in kg (each) 0.89
Category Stocked
