HXT1018S-100C
GEN3SYS® XT Pro Replaceable Drill Body: 0.7085" - 0.7872", 10xD, Cylindrical Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

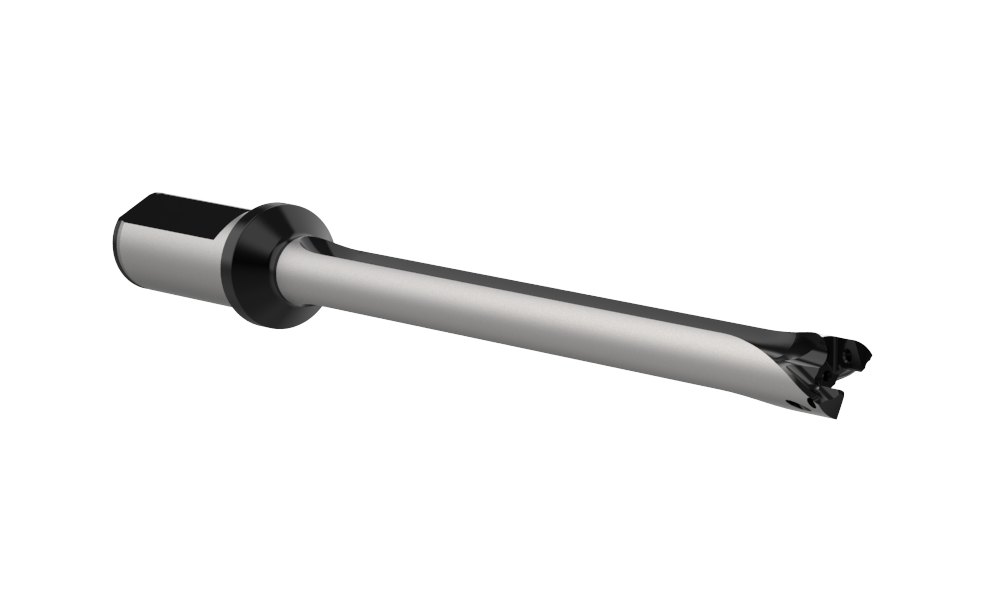

Default Image
Angle

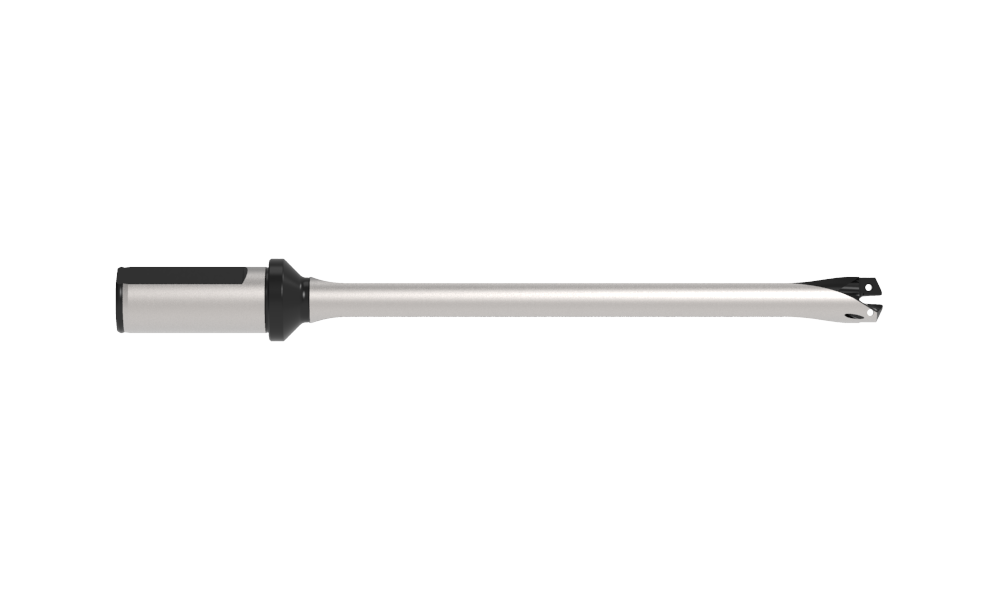

Front

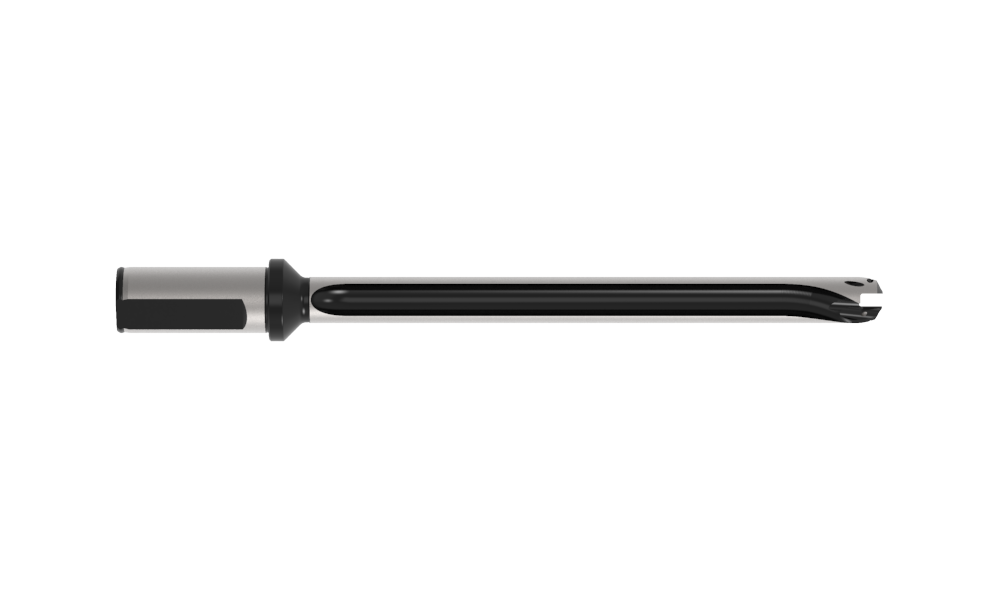

Top
Product Specifications
Series 18
Minimum diameter inch 0.7085
Maximum diameter inch 0.7872
Length Type 10xD
Flute Type Straight
Overall length inch 11.600
Tool Reference Length inch 9.320
Body length inch 9.210
Drill depth inch 7.871
Shank type Cylindrical
Shank diameter inch 1
Shank length inch 2.280
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.2
Weight in kg (each) 0.54
Category Stocked
