HXT1017S-075F
GEN3SYS® XT Pro Replaceable Drill Body: 0.6691" - 0.7084", 10xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

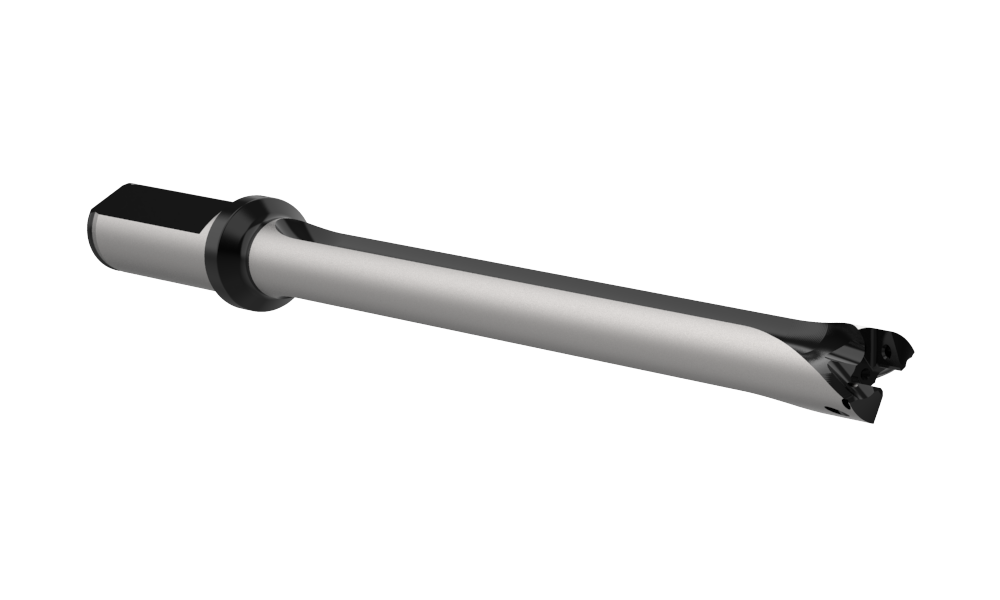

Default Image
Angle

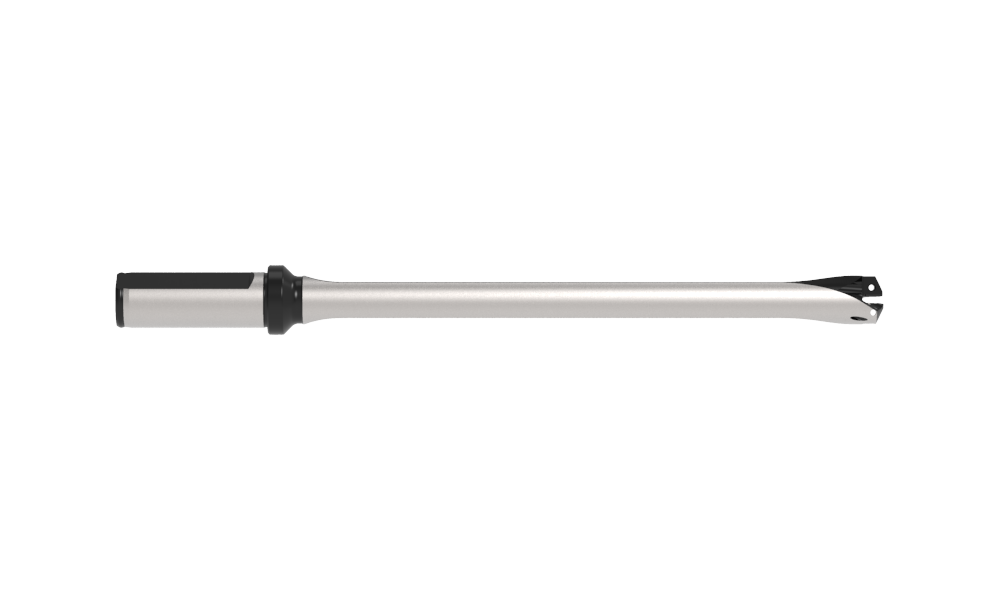

Front

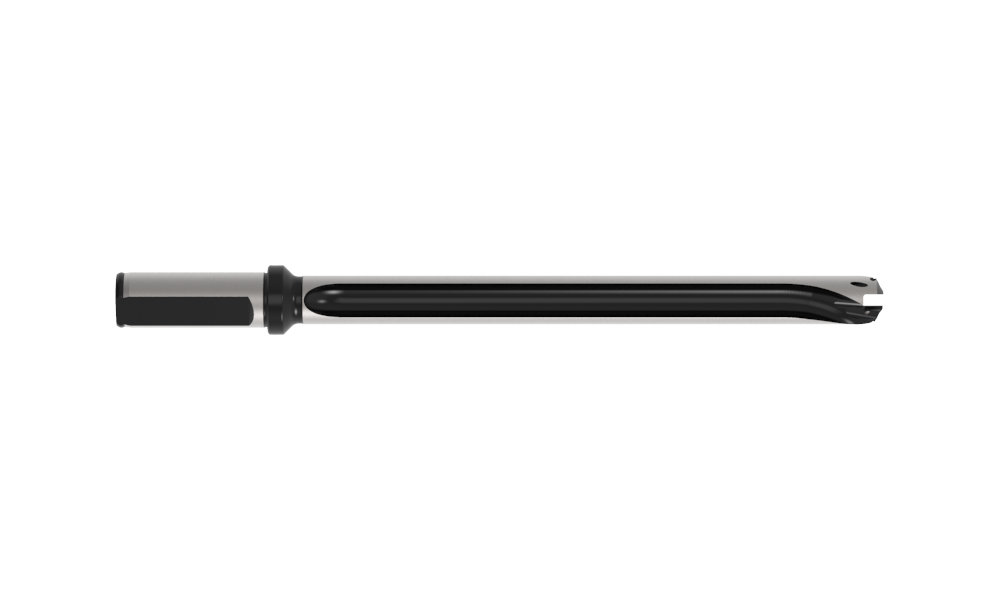

Top
Product Specifications
Series 17
Minimum diameter inch 0.6691
Maximum diameter inch 0.7084
Length Type 10xD
Flute Type Straight
Overall length inch 10.409
Tool Reference Length inch 8.379
Body length inch 8.265
Drill depth inch 7.083
Shank type Flanged
Shank diameter inch 3/4
Shank length inch 2.030
Deep Hole Guidelines Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72567-IP8-1 (Qty0)
Replacement GEN3SYS® Screw
0.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-8 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.77
Weight in kg (each) 0.35
Category Stocked
