HXT0532S-150F
GEN3SYS® XT Pro Replaceable Drill Body: 1.2597" - 1.3781", 5xD, Flanged Shank
GEN3SYS® XT Pro Holder

Add to cart image Add to list image







See Additional Technical Information

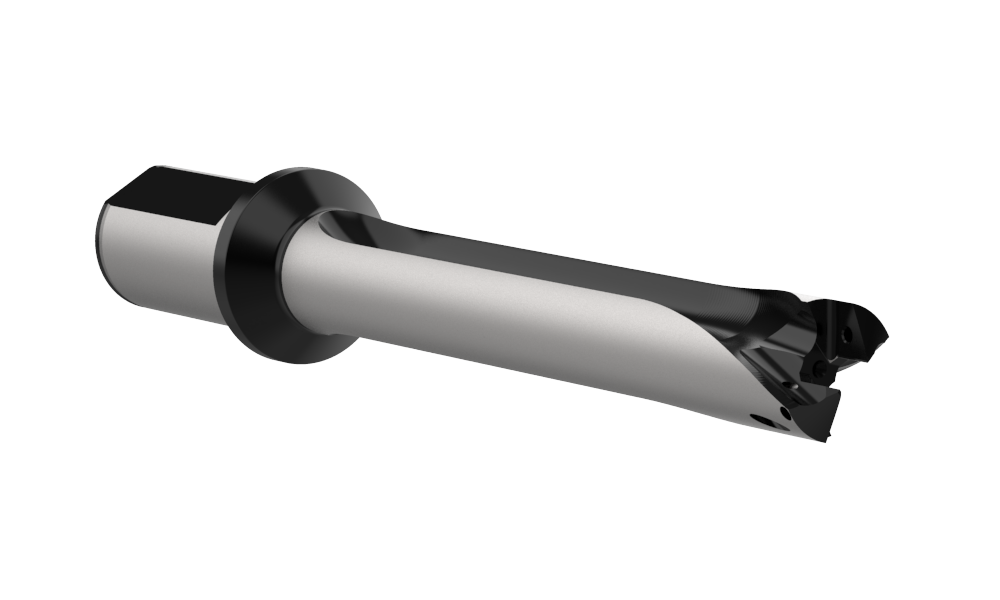

Default Image
Angle

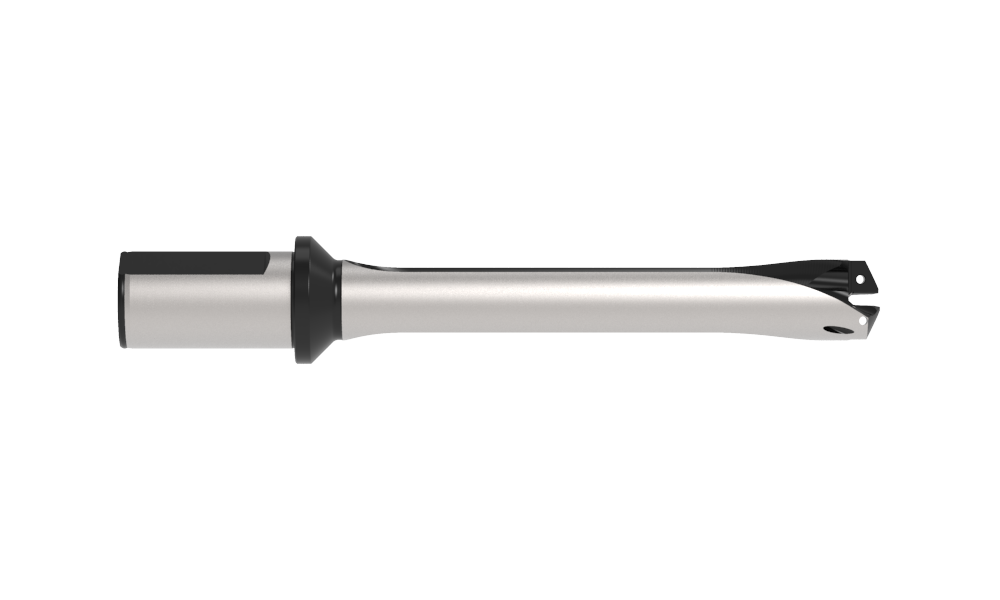

Front

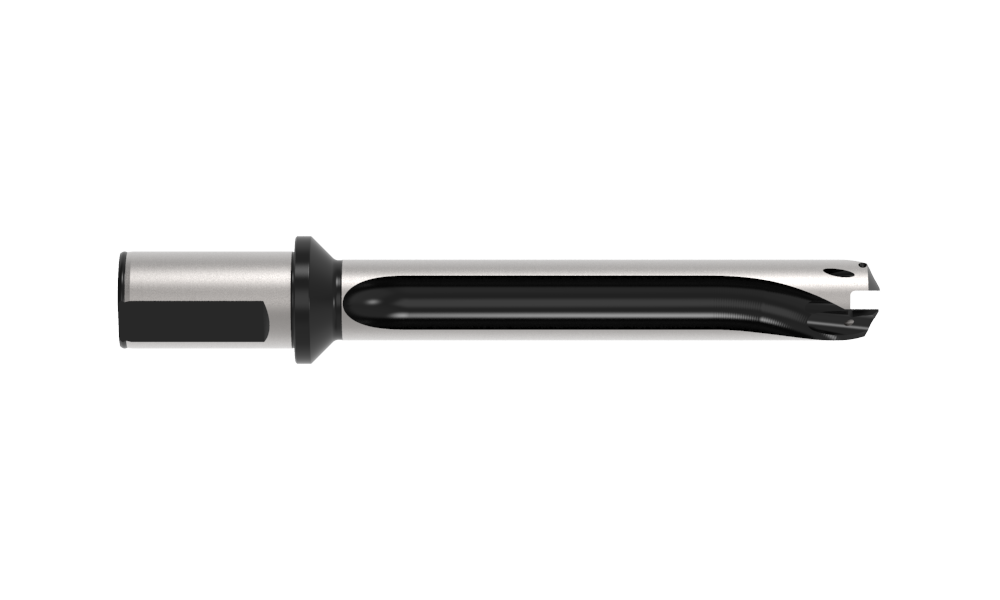

Top
Product Specifications
Series 32
Minimum Diameter (inch) 1.2597
Maximum Diameter (inch) 1.3781
Length Type 5xD
Flute Type Straight
Overall Length (inch) 11.794
Tool Reference Length (inch) 9.106
Body Length (inch) 8.966
Drill Depth (inch) 6.888
Shank Type Flanged
Shank Diameter (inch) 1-1/2
Shank Length (inch) 2.688
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 3.51
Weight in kg (each) 1.59
Category Stocked
