HTAZB10-075F
T-A Pro® Replaceable Drill Body: 0.4802" - 0.4998", 10xD, Flanged Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

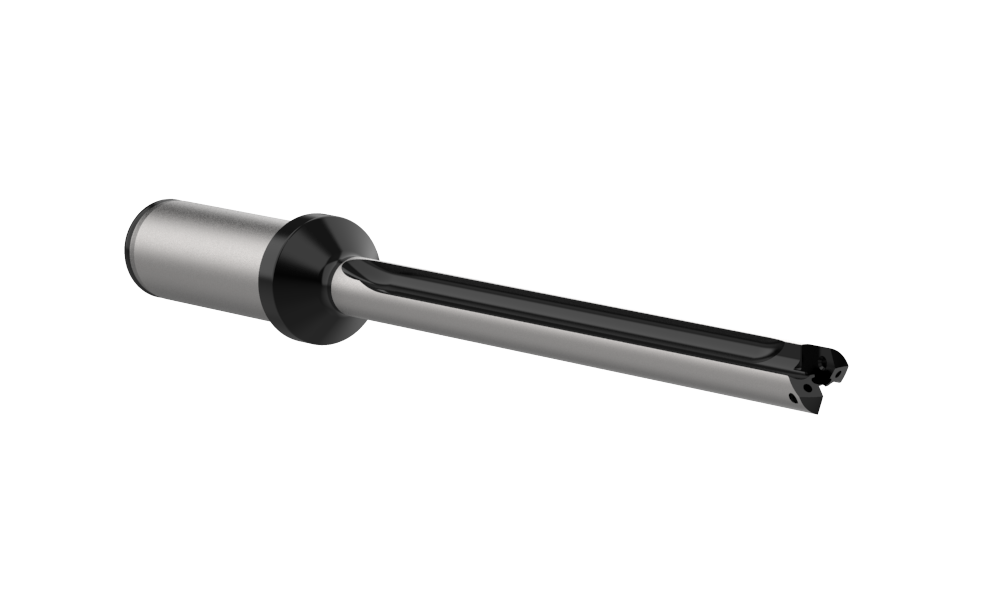

Angle

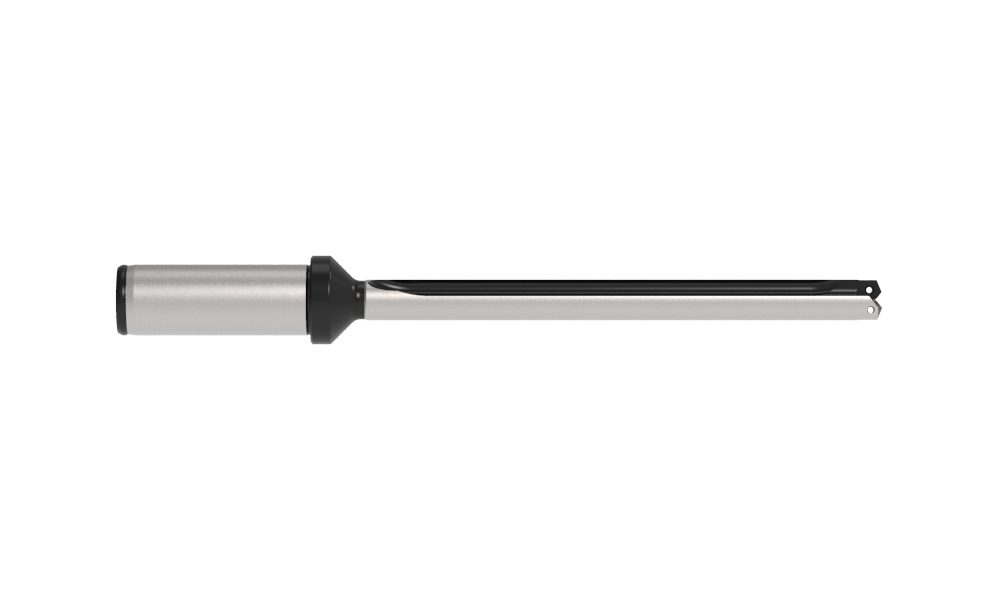

Front

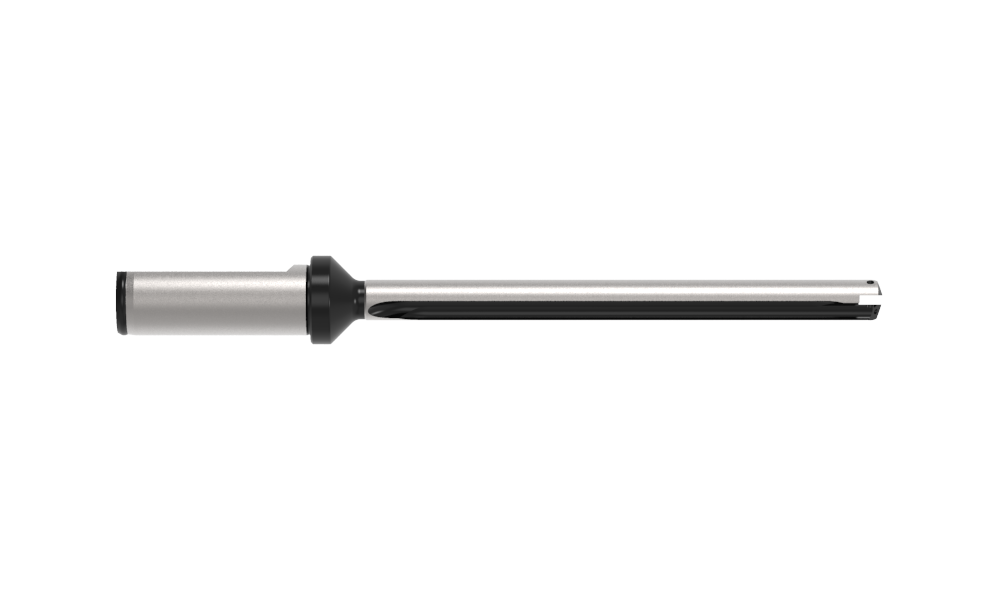

Top
Product Specifications
Series Z
Sub-Series B
Minimum Diameter (inch) 0.4802
Maximum Diameter (inch) 0.4998
Length Type 10xD
Flute Type Straight
Overall Length (inch) 8.041
Tool Reference Length (inch) 6.091
Body Length (inch) 6.011
Drill Depth (inch) 4.740
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.48
Weight in kg (each) 0.22
Category Stocked
