HTA1C03-100C
T-A Pro® Replaceable Drill Body: 0.8109" - 0.9596", 3xD, Cylindrical Shank
T-A Pro® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

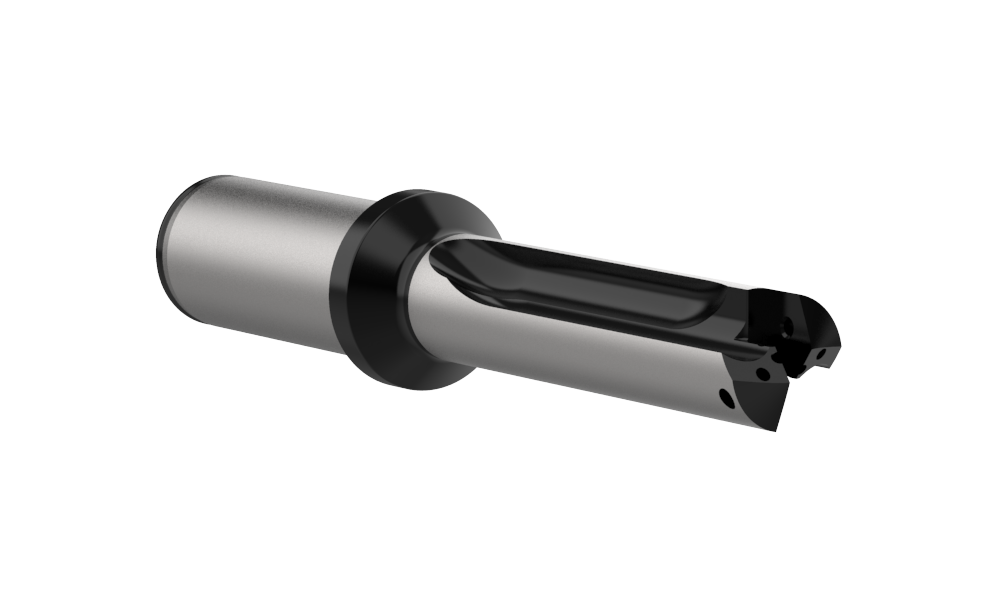

Angle

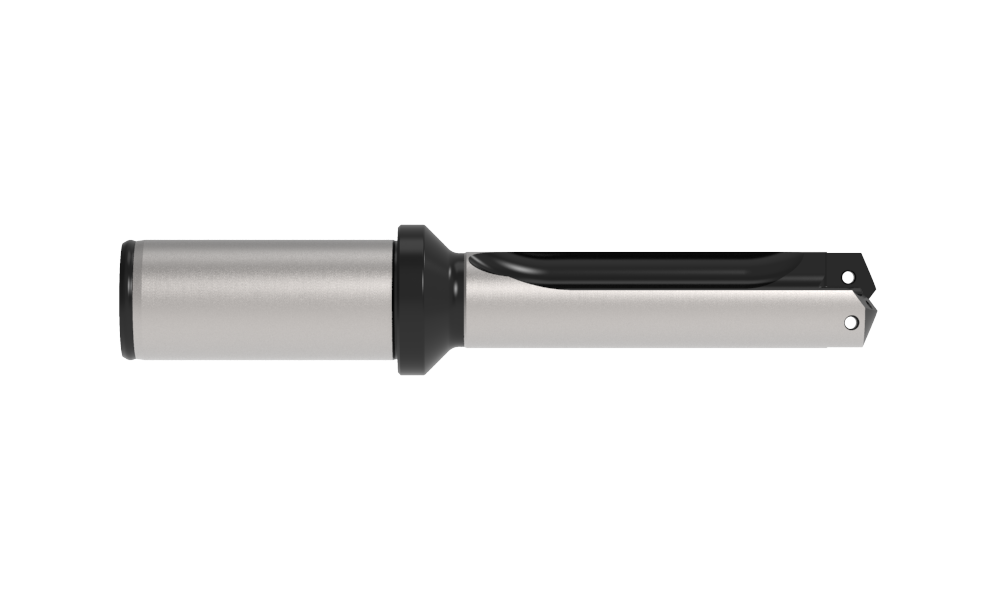

Front

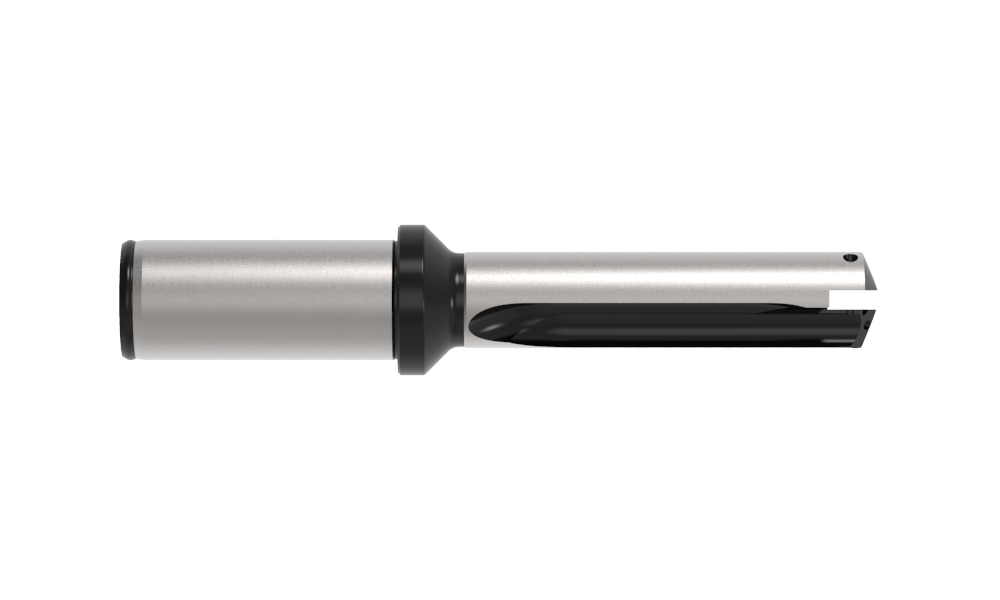

Top
Product Specifications
Series 1
Sub-Series C
Minimum Diameter (inch) 0.8109
Maximum Diameter (inch) 0.9596
Length Type 3xD
Flute Type Straight
Overall Length (inch) 6.253
Tool Reference Length (inch) 4.113
Body Length (inch) 3.973
Drill Depth (inch) 2.475
Shank Type Cylindrical
Shank Diameter (inch) 1
Shank Length (inch) 2.280
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 739-IP9-1 (Qty0)
Replacement T-A® Screw
1.5 KIT (1) TORX PLUS, CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.96
Weight in kg (each) 0.44
Category Stocked
