HDTM27NPT
ThreadMills USA® Solid Carbide Threadmill: NPT 27, 1/8", Helical 4 Flute, TiAlN
ThreadMills USA®

Add to cart image Add to list image







See Additional Technical Information

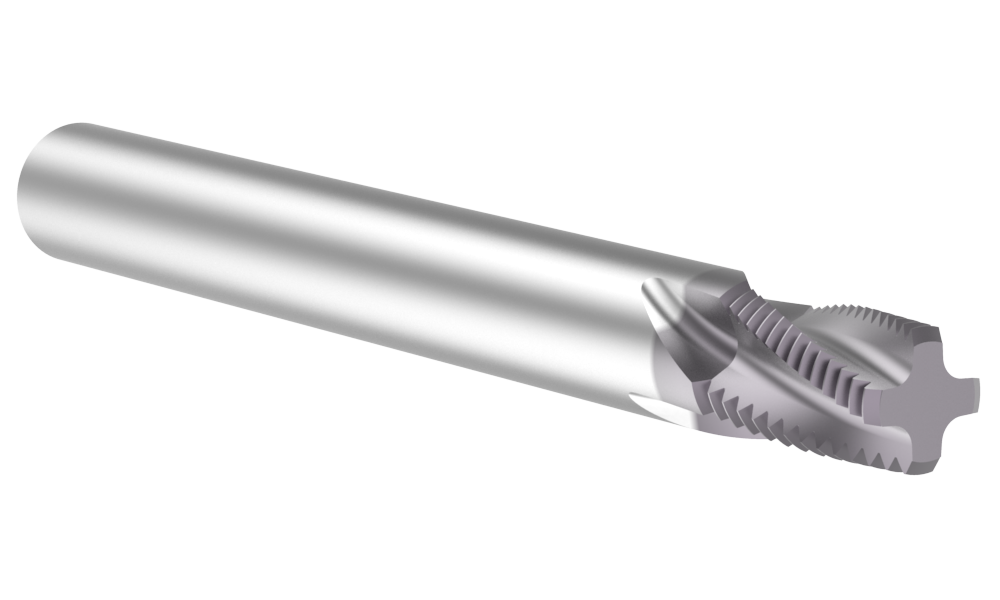

Default Image
Angle

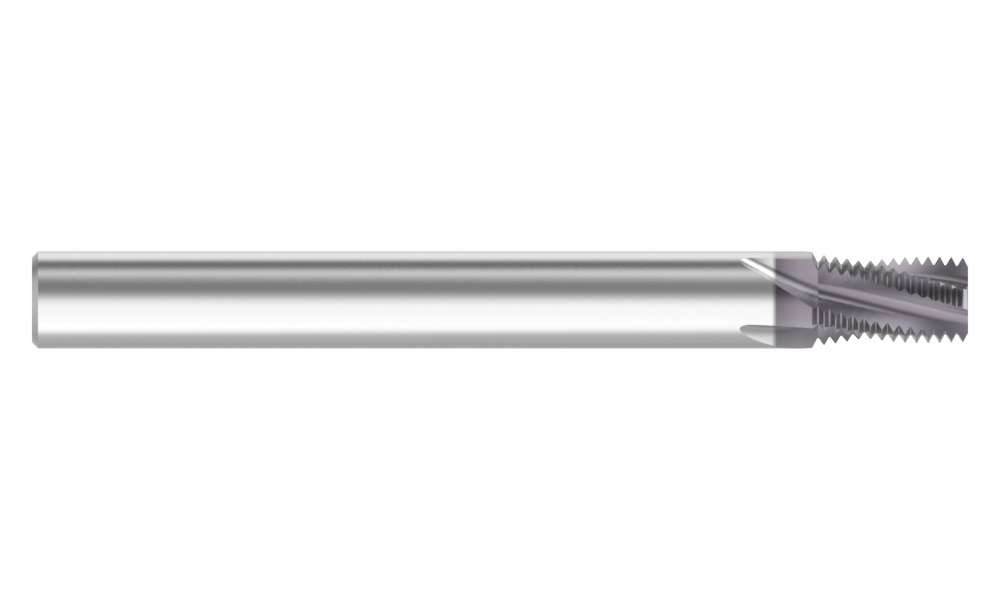

Side
Product Specifications
Type of Product Solid Carbide Threadmill
Overall Length (inch) 3
Shank Diameter (inch) 0.312
Shank Type Cylindrical
Coating TiAlN
Material Carbide
Flute Type Helical
Thread Standard NPT
Minimum Thread Size 1/8"
Pitch 27
Number of Flutes 4
Feature Heavy Duty
Thread Style Internal/External
Cutter Diameter (inch) 0.3
Length of Cut (inch) 0.482
Weldon Flat (Yes/No) No
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.11
Weight in kg (each) 0.05
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.009 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYETHYLENE
Total Recycled Content 0.00%
Weight 0.007 lbs
Recycleable? Yes
Contains PFAS? No
