D4092800M-125F
4TEX® Indexable Insert Drill: 28 mm, 4XD, Flanged Shank
4TEX® Holders

Add to cart image Add to list image







See Additional Technical Information
Default Image
Angle

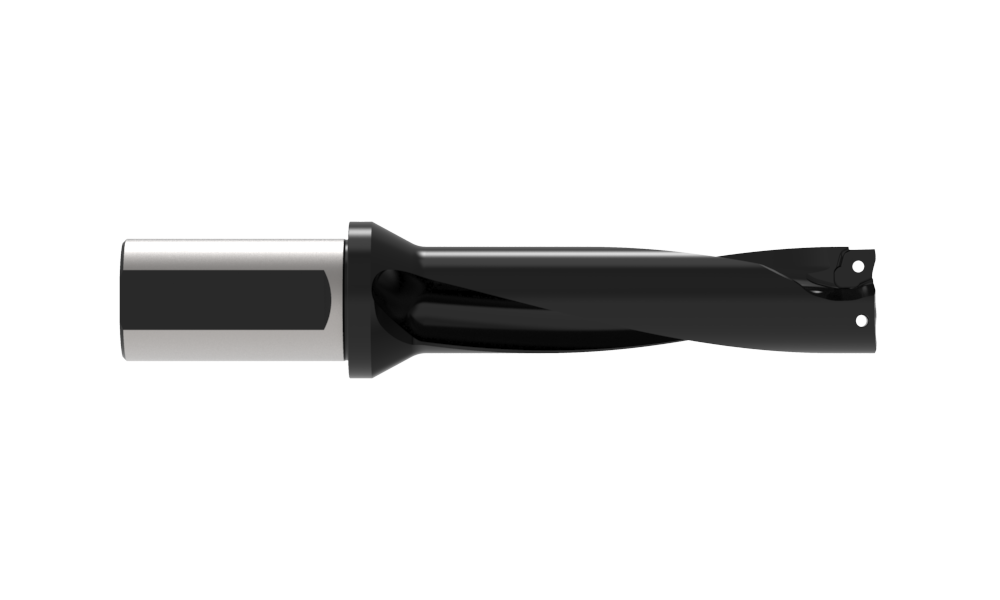

Front

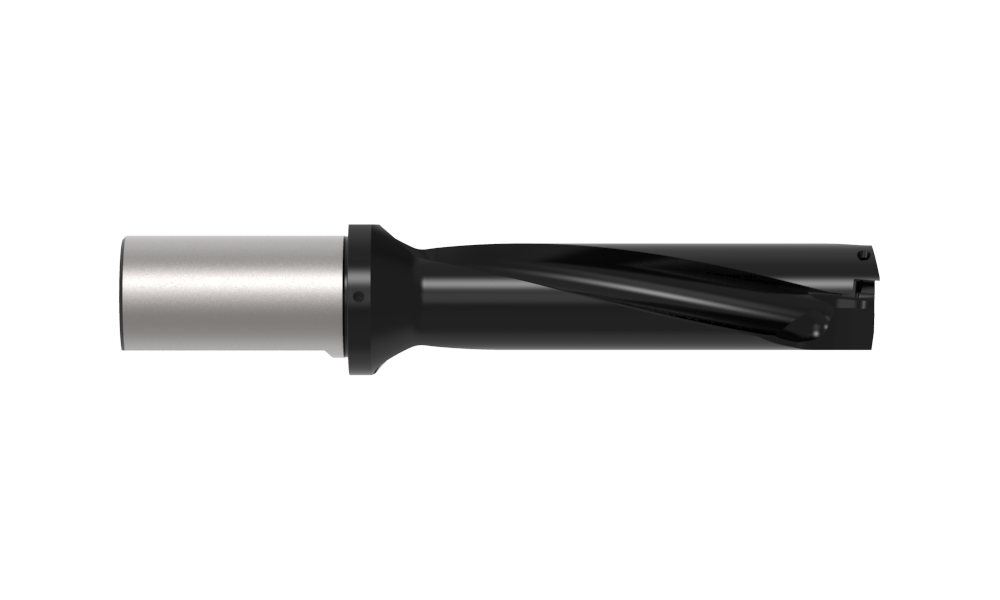

Bottom
Product Specifications
Type of Product Indexable Insert Drill
Minimum diameter mm 27.51
Maximum diameter mm 28
Cutter Diameter mm 28
Depth to Diameter 4XD
Series 09
Quantity of Inserts 2
Insert prefix 4T-09T306
Coolant Through Yes
Drill depth inch 4.409
Gage length inch 5.303
Assembled overall length inch 7.626
Shank type Flanged
Flat Yes
Shank diameter inch 1.25
Flange diameter inch 1.614
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 738-T10-1 (Qty0)
Replacement IC Insert Screw
TORX SCREW 10 PK, T10
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8T-10 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-10
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.73
Weight in kg (each) 0.79
Category Stocked
