D4040562I-075F
4TEX® Indexable Insert Drill: 0.562", 4XD, Flanged Shank
4TEX® Holders

Add to cart image Add to list image







See Additional Technical Information

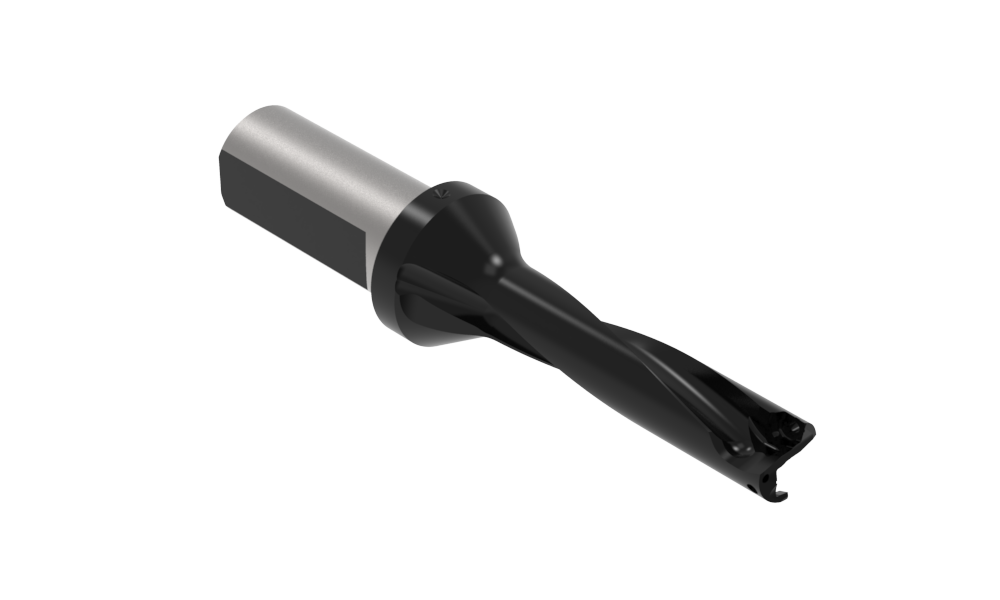

Default Image
Angle

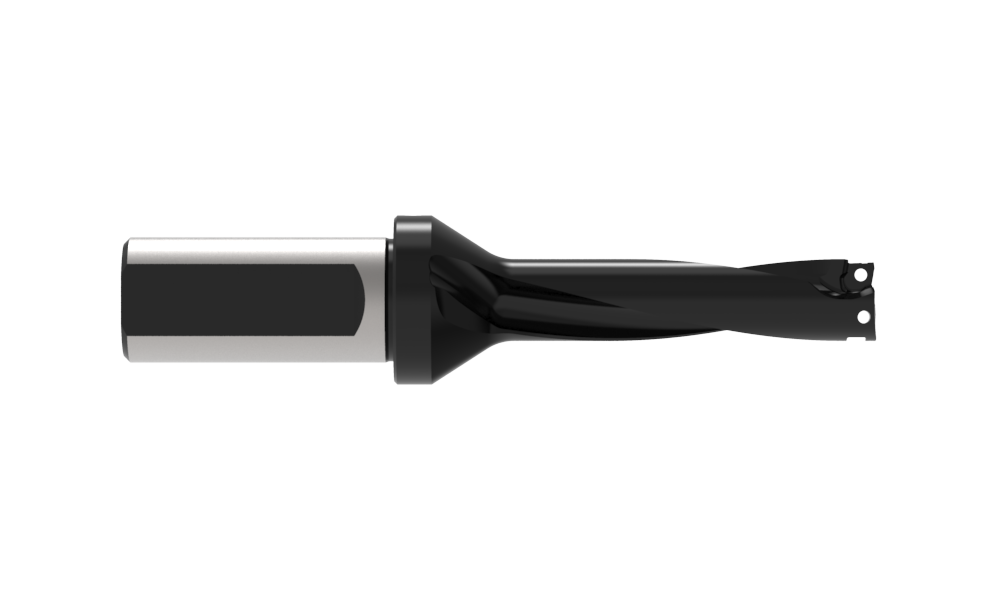

Front

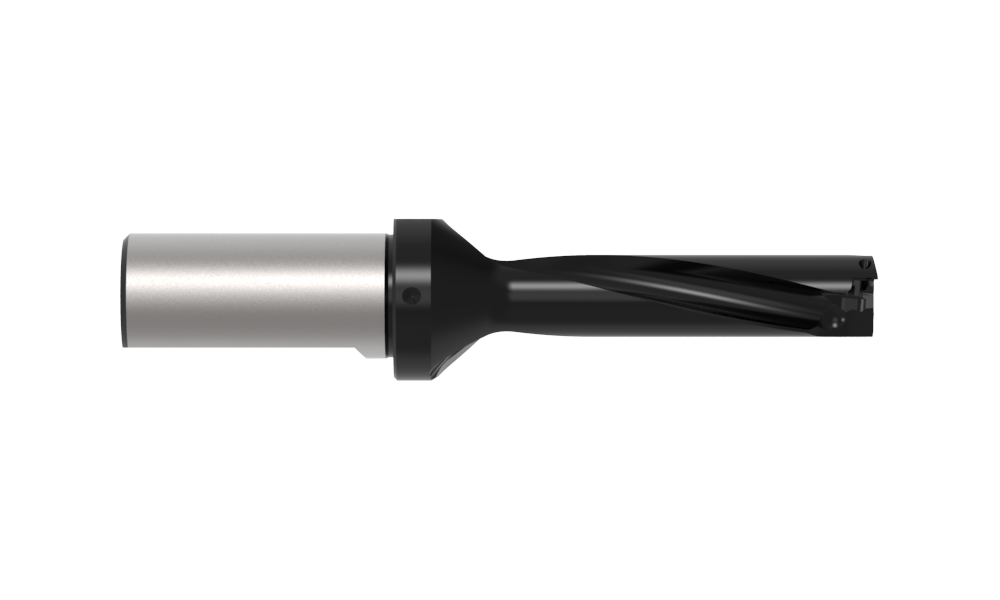

Bottom
Product Specifications
Series 04
Diameter Fractional Equivalent 9/16
Drill Depth (inch) 2.248
Shank Type Flanged
Shank Diameter (inch) 0.75
Flange Diameter (inch) 1.063
Insert Prefix 4T-040203
Type of Product Indexable Insert Drill
Minimum Diameter (mm) 14.01
Maximum Diameter (inch) 0.562
Cutter Diameter (inch) 0.562
Gage Length (inch) 3.047
Coolant Through Yes
Flat (Yes/No) Yes
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7241-T6-1 (Qty0)
Replacement IC Insert Screw
TORX SCREW 10 PK, T6
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8T-6 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-6
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.39
Weight in kg (each) 0.18
Category Stocked
