D4031300M-075F
4TEX® Indexable Insert Drill: 13 mm, 4XD, Flanged Shank
4TEX® Holders

Add to cart image Add to list image







See Additional Technical Information

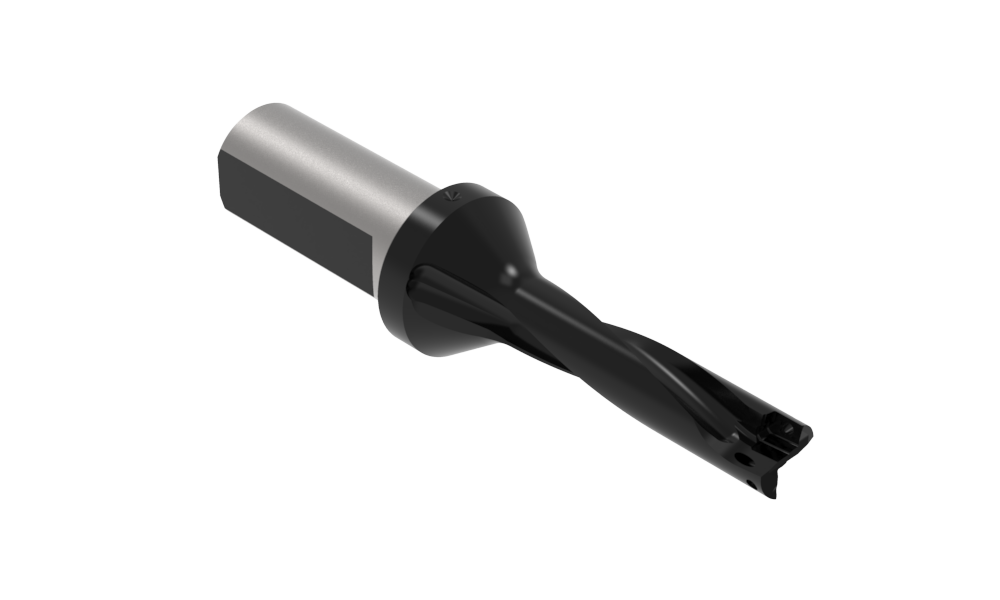

Default Image
Angle

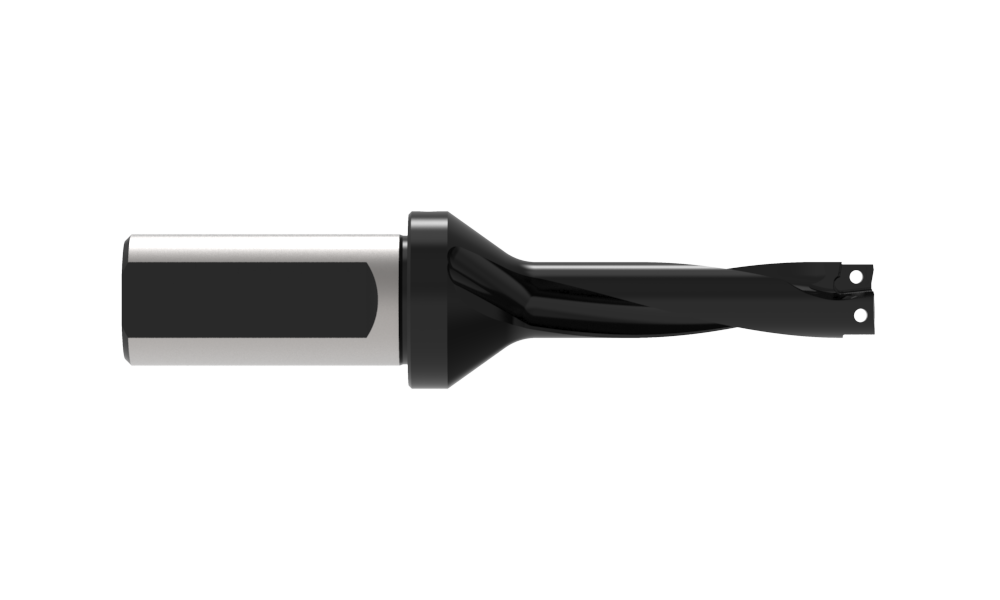

Front

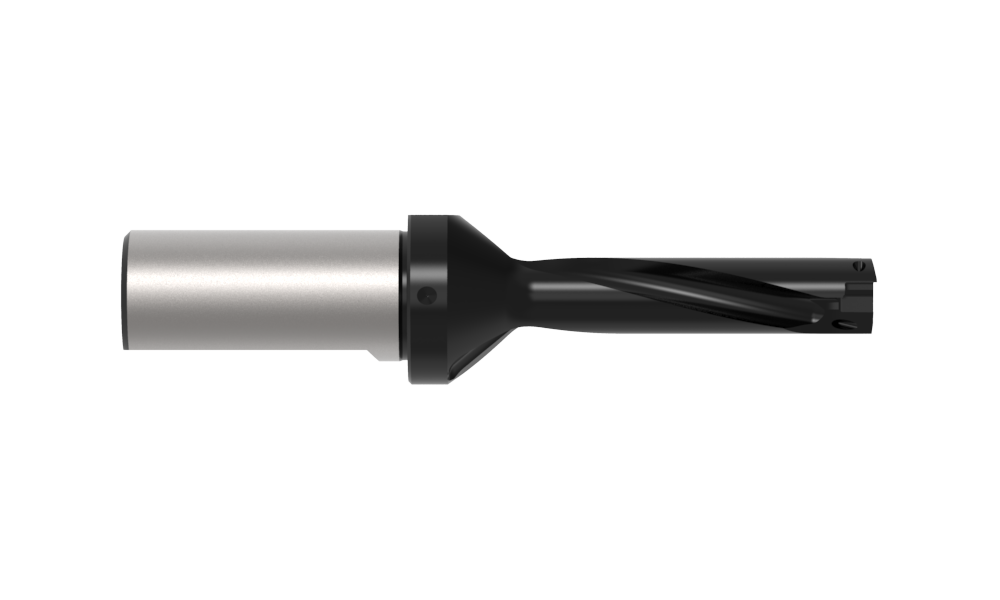

Bottom
Product Specifications
Type of Product Indexable Insert Drill
Minimum diameter inch 0.5001
Maximum diameter mm 13
Cutter Diameter mm 13
Depth to Diameter 4XD
Series 03
Quantity of Inserts 2
Insert prefix 4T-030203
Coolant Through Yes
Drill depth inch 2.047
Gage length inch 2.89
Assembled overall length inch 4.583
Shank type Flanged
Flat Yes
Shank diameter inch 0.75
Flange diameter inch 1.063
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7241-T6-1 (Qty0)
Replacement IC Insert Screw
TORX SCREW 10 PK, T6
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8T-6 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-6
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.37
Weight in kg (each) 0.17
Category Stocked
