D3072500M-100F
4TEX® Indexable Insert Drill: 25 mm, 3XD, Flanged Shank
4TEX® Holders

Add to cart image Add to list image







See Additional Technical Information

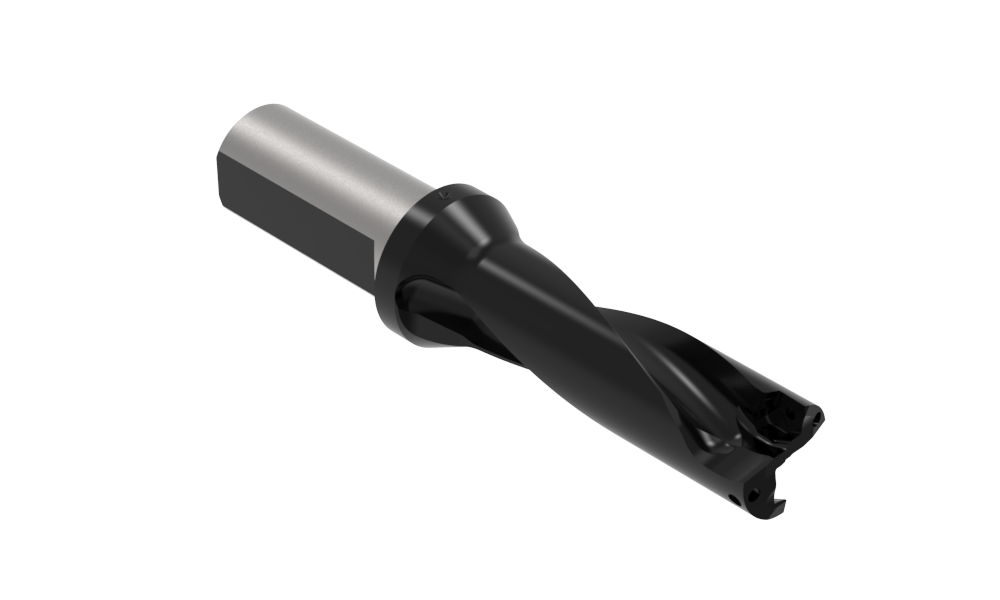

Default Image
Angle

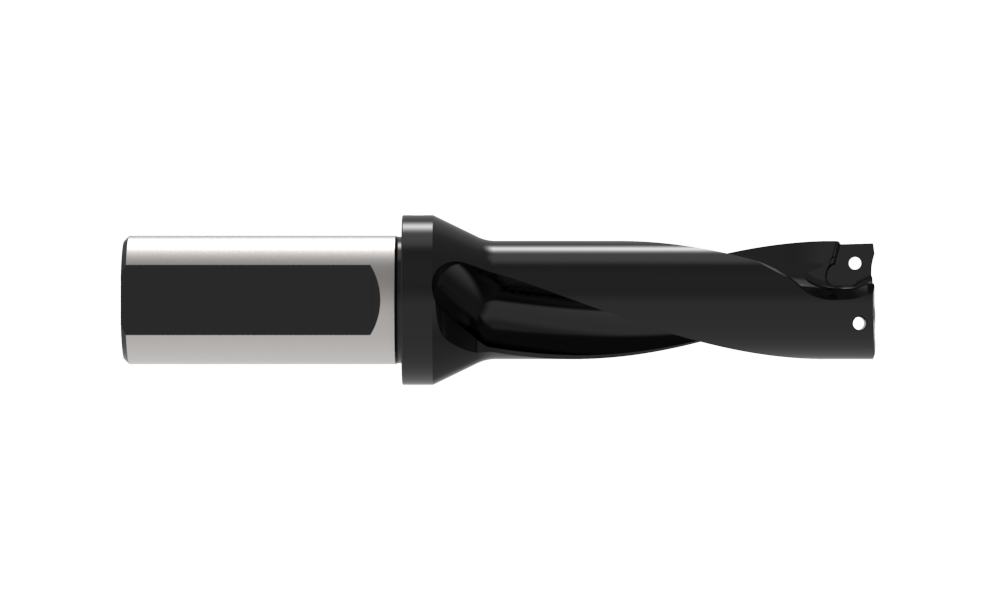

Front

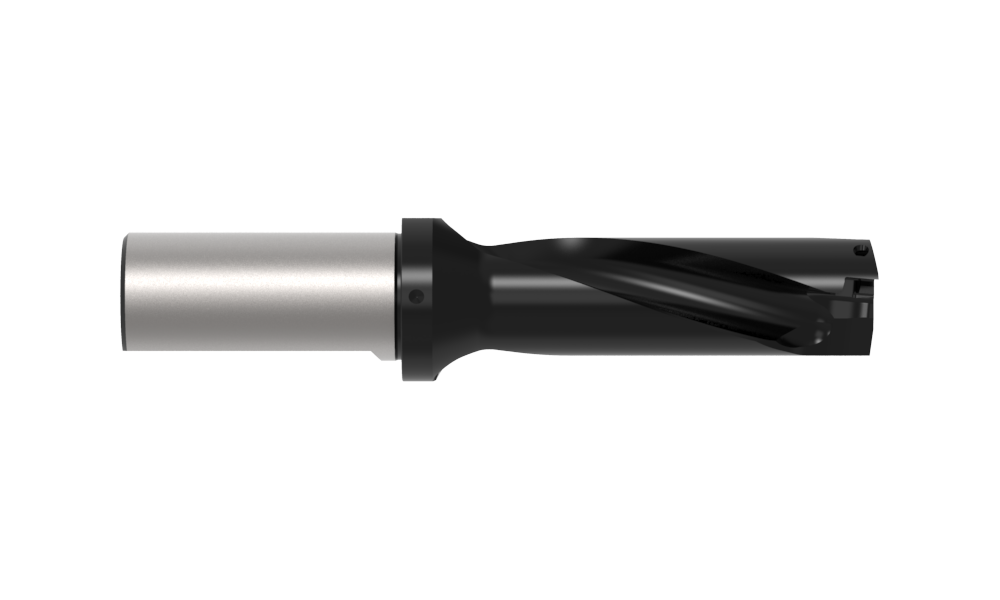

Bottom
Product Specifications
Series 07
Drill Depth (inch) 2.953
Shank Type Flanged
Shank Diameter (inch) 1
Flange Diameter (inch) 1.299
Insert Prefix 4T-070305
Type of Product Indexable Insert Drill
Minimum Diameter (mm) 24.51
Maximum Diameter (mm) 25
Cutter Diameter (mm) 25
Gage Length (inch) 3.776
Coolant Through Yes
Flat (Yes/No) Yes
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 72568-T8-1 (Qty0)
Replacement IC Insert Screw
TORX SCREW 10 PK, T8
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8T-8 (Qty0)
IC Insert Screw Driver
DRIVER, TORX HAND T-8
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.99
Weight in kg (each) 0.45
Category Stocked
