ATKU12-1926M
AccuPort 432® Port Tool Kit: SAE J1926-1, -12, Non-Ferrous, Metric
AccuPort 432® Kit

Add to cart image Add to list image







See Additional Technical Information
Default Image
Main
Product Specifications
Kit Type Non-Ferrous
Specification SAE
Port Standard J1926-1
Tube Size -12
Shank Type Metric
Type of Product Indexable Porting Kit
Product Application General Purpose
Items Included

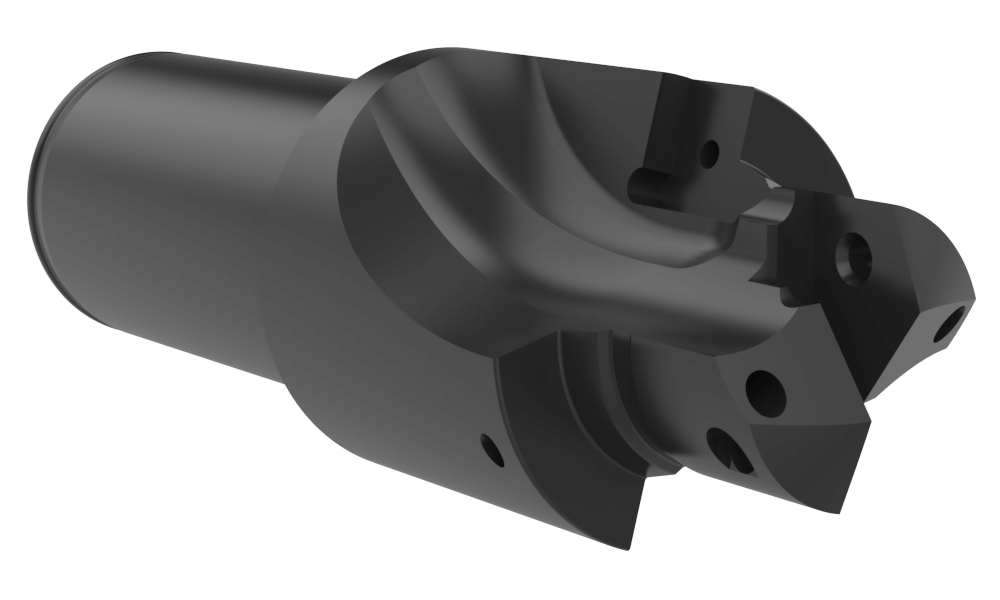

AccuPort 432\J1926\Holders\J1926-122-32FM\J1926-122-32FM_Angle.png J1926-122-32FM (Qty1)
AccuPort 432® Holder
#2 -12 ACCUPORT HOLDER
T-A Inserts\1-2\1-2-T\1-2-T-ANGLE.png 152T-25 (Qty2)
T-A® Insert
#2 TA SC TIN 25MM
AccuPort 432\J1926\Inserts\J1926-A\08\J1926-A-08-FRONT.png J1926-08-C5A (Qty2)
AccuPort 432® Insert
#8 C5 TIALN PORT INSERT
ImageNotAvailable.png TMAU1063-12M (Qty1)
AccuThread® 856 Solid
A 4F, 11.94mm, 23.29mm, uncoat
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.9
Weight in kg (each) 1.32
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
