Item Detail

ATKK10R-6149

AccuPort 432® Port Tool Kit: ISO 6149-1, -10, Ferrous, Metric

AccuPort 432® Kit

Qty

See Additional Technical Information

Product Specifications

Kit Type	Ferrous
Specification	ISO
Port Standard	6149-1
Tube Size	-10
Ridge (Yes/No)	Yes
Shank Type	Metric
Type of Product	Indexable Porting Kit
Product Application	General Purpose

Items Included

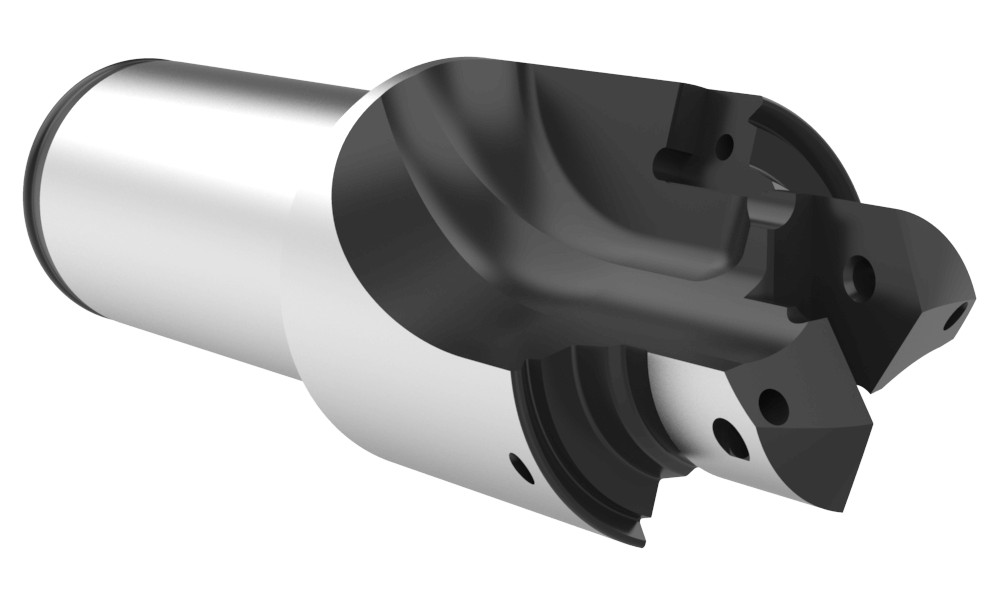

$AccuPort 432\I6149\Holders\I6149-10R1-25FM\I6149-10R1-25FM_Angle.png$	I6149-10R1-25FM (Qty1) AccuPort 432® Holder #1 -10 RIDGED METRIC ACCUPORT

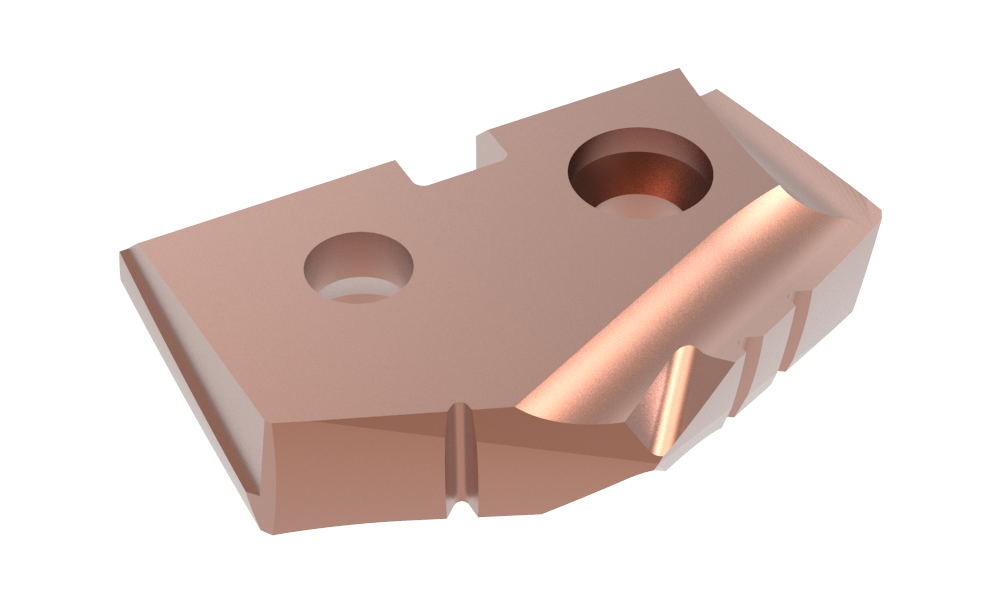

$GEN2 T-A Inserts\4-1\4-1-H\4-1-H-ANGLE.png$	451H-20.5 (Qty2) Gen2 T-A® Insert #1 GEN2 T-A SC AM200 20.5MM
$AccuPort 432\I6149\Inserts\I6149-A\04R\I6149-A-04R-FRONT.png$	I6149-04R-C5A (Qty2) AccuPort 432® Insert #4 C5 TIALN PORT RIDGED METRIC

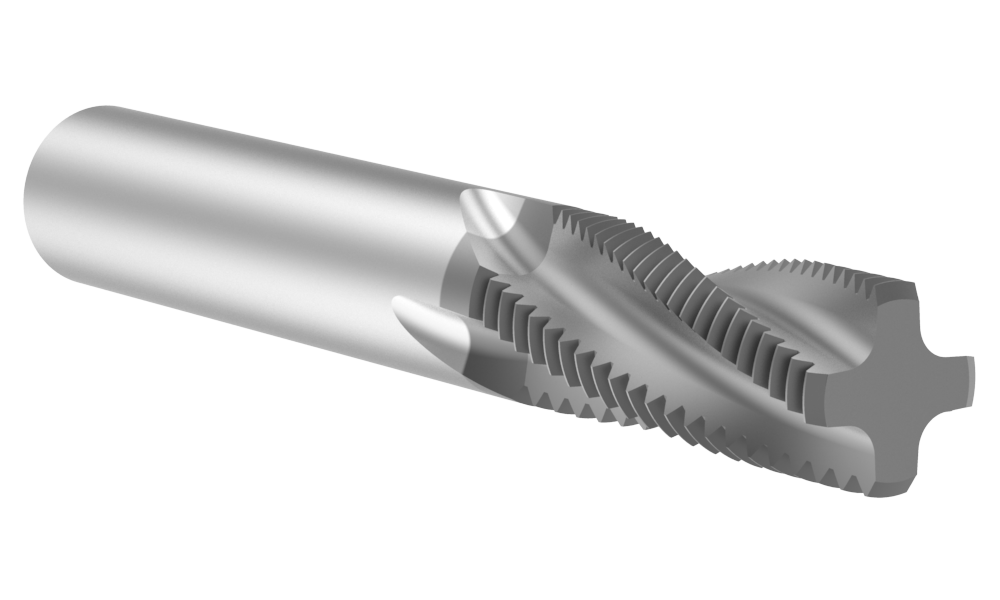

$Threadmills\Solid Carbide\ISO\AccuThread 856\Non-Coolant\Metric\TMMK1800-150M\TMMK1800-150M-ANGLE.png$	TMMK1800-150M (Qty1) AccuThread® 856 Solid M 4F .469", 1.240" AM210

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	2.2
Weight in kg (each)	1
Category	Non-Stock*

*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
