Item Detail

ATKK05-G1731

AccuPort 432® Port Tool Kit: JDS G173.1, -5, Ferrous, Metric

AccuPort 432® Kit

Qty

See Additional Technical Information

Product Specifications

Kit Type	Ferrous
Specification	JDS
Port Standard	G173.1
Tube Size	-5
Shank Type	Metric
Type of Product	Indexable Porting Kit
Product Application	General Purpose

Items Included

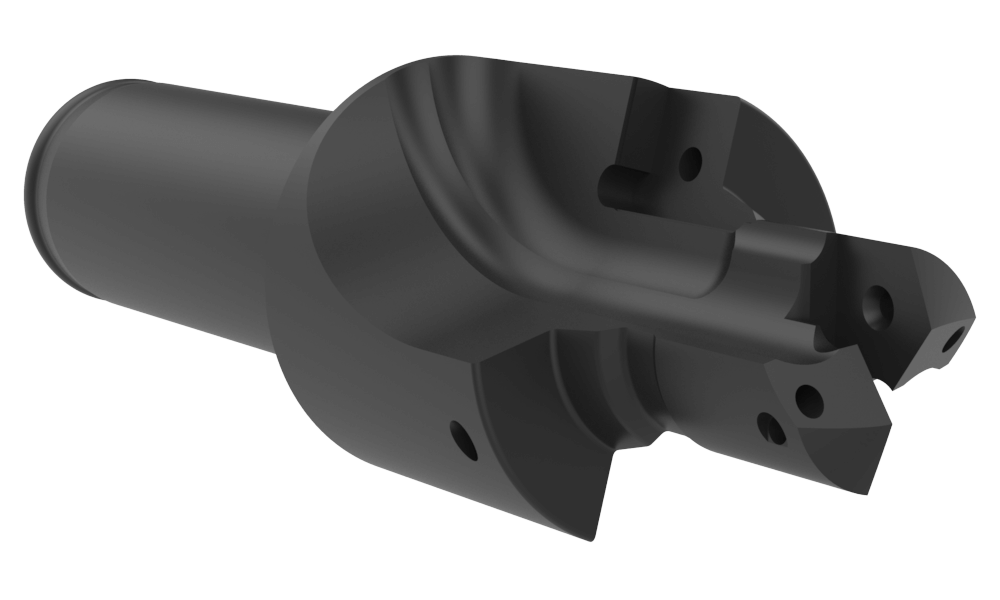

$AccuPort 432\G1731\Holders\G1731-05Z-16FM\G1731-05Z-16FM_ANGLE.png$	G1731-05Z-16FM (Qty1) AccuPort 432® Holder #Z -05 JDS METRIC ACCUPORT
$GEN2 T-A Inserts\4-Z\4-Z-H\4-Z-H-ANGLE.png$	45ZH-12.5 (Qty2) Gen2 T-A® Insert #Z GEN2 T-A SC AM200 12.5MM
$AccuPort 432\G1731\Inserts\01\G1731-H-01-FRONT.png$	G1731-01-C3H (Qty2) AccuPort 432® Insert Accuport JDS -01 INSERT
$Threadmills\Solid Carbide\ISO\AccuThread 856\Non-Coolant\Metric\TMMK1400-150M\TMMK1400-150M-ANGLE.png$	TMMK1400-150M (Qty1) AccuThread® 856 Solid M 4F .429", 1.063" AM210

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	1.6
Weight in kg (each)	0.73
Category	Non-Stock*

*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
