94500-MC-070

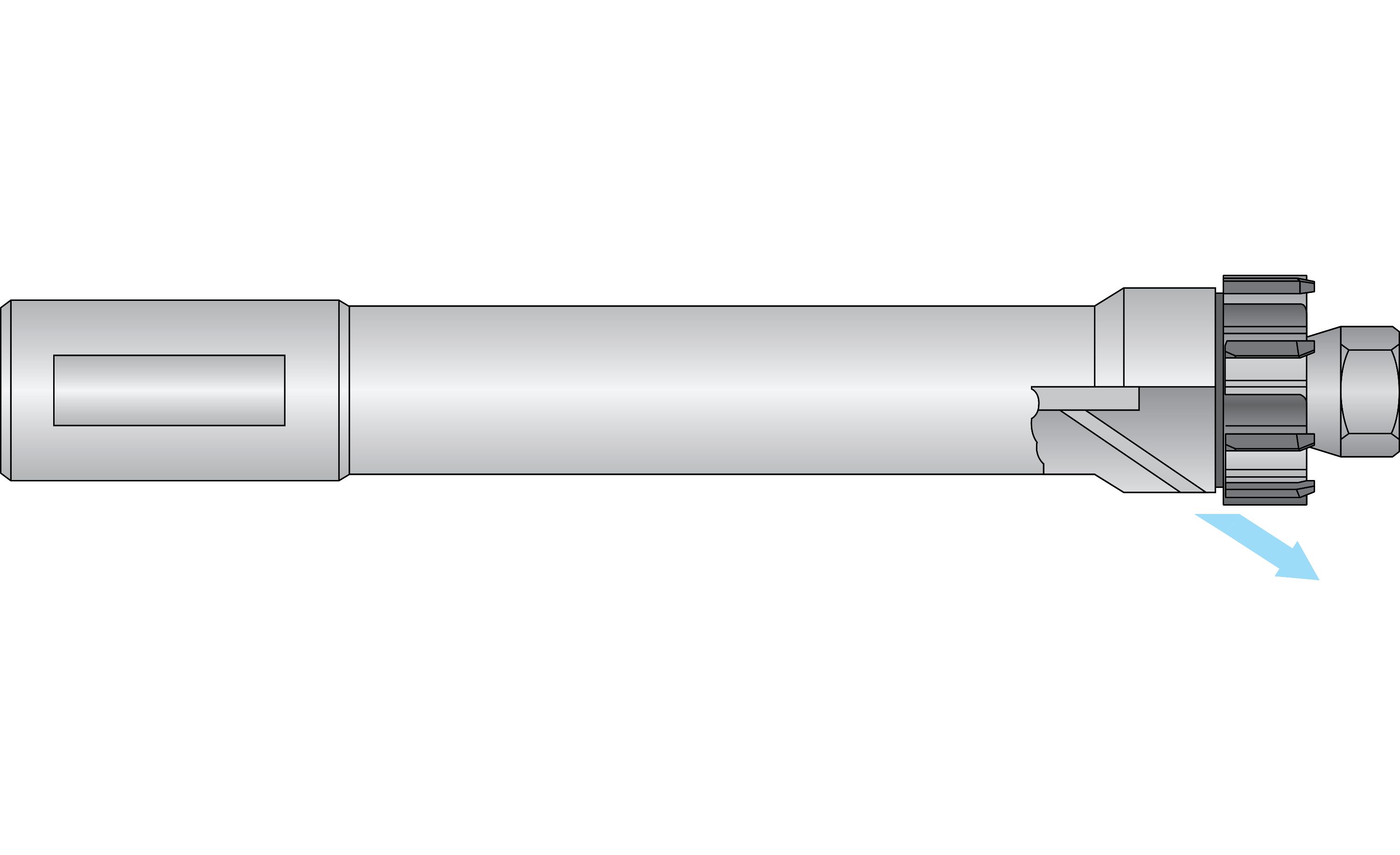

ALVAN® Ring Arbor: 1.9528" - 2.3857", Radial Coolant, Cylindrical Shank
ALVAN® Ring Arbor

Add to cart image Add to list image







Default Image
Main
Product Specifications
Type of Product Modular Reamer Body
Series 94500
Minimum diameter inch 1.9528
Maximum diameter inch 2.3857
Assembled reference length inch 11.594
Length of cut inch 8.425
Length Type Long
Shank diameter inch 1.25
Shank length inch 2.362
Shank type Cylindrical
Flat Yes
Adjustment location Front
Application Type Through Hole
Coolant Radial Coolant
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 4.835
Weight in kg (each) 2.2
Category Non-Stock*
*Non-stocked items are NON-RETURNABLE. They are also subject to PROCESS FEES. Process fees are not included in the list price. Please refer to the price list for a breakdown of those fees.
