60715H-075F
GEN3SYS® Replaceable Drill Body: 0.5904" - 0.6297", 7xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

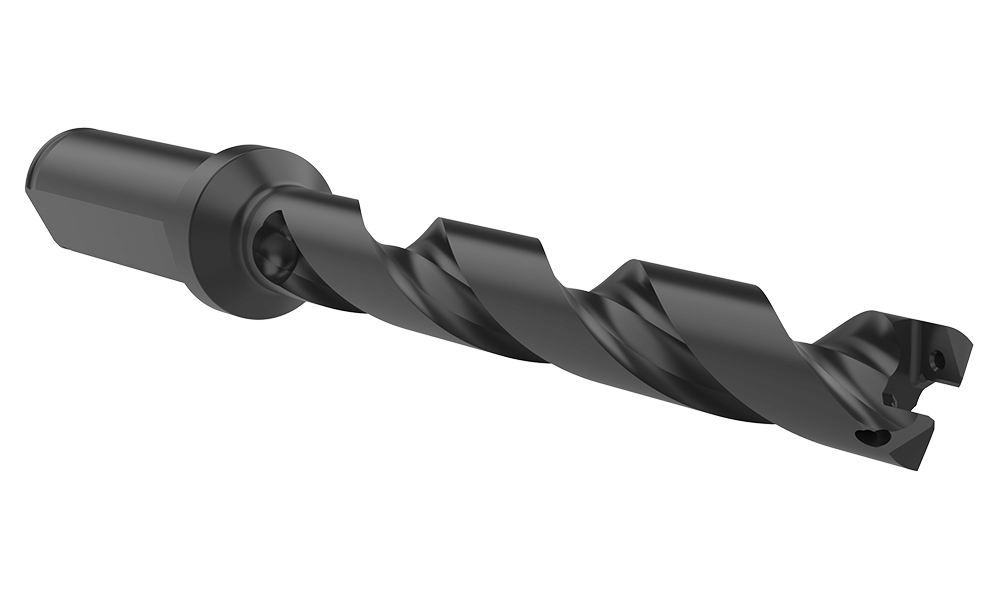

Default Image
Angle

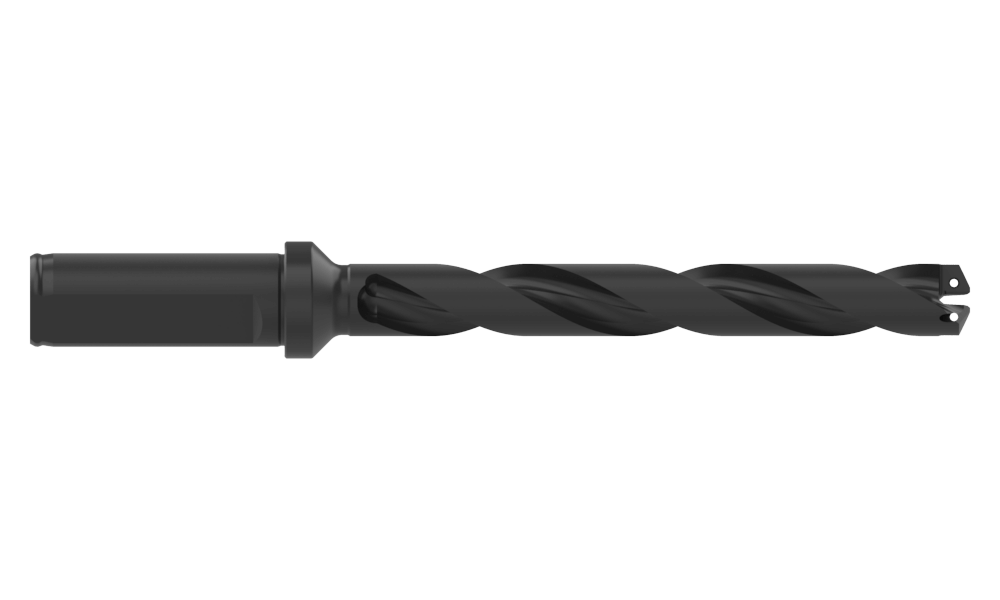

Front

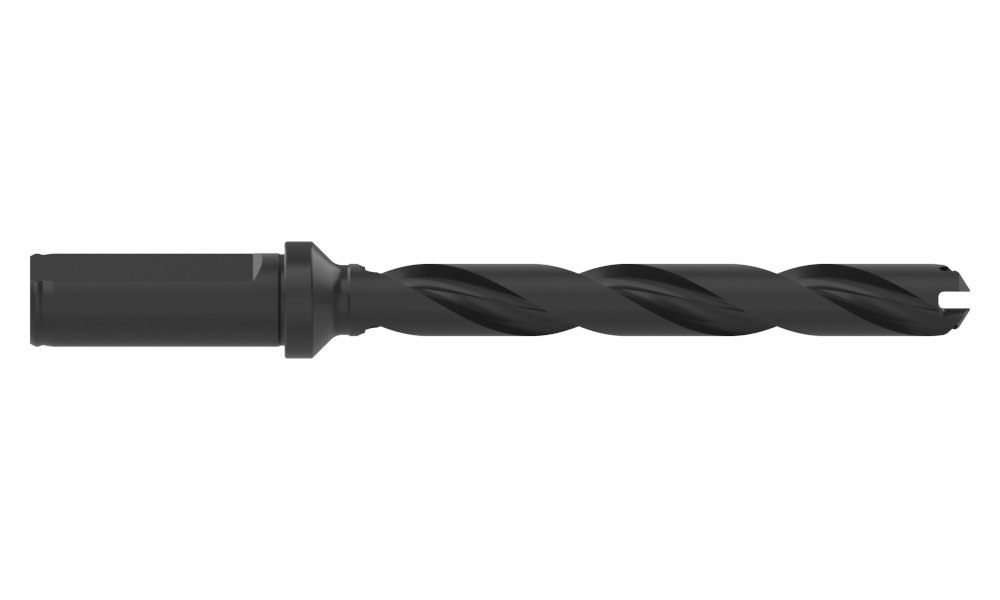

Top
Product Specifications
Series 15
Minimum Diameter (inch) 0.5904
Maximum Diameter (inch) 0.6297
Length Type 7xD
Flute Type Helical
Overall Length (inch) 7.601
Tool Reference Length (inch) 5.571
Body Length (inch) 5.470
Drill Depth (inch) 4.408
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement GEN3SYS® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.53
Weight in kg (each) 0.24
Category Stocked
