60529H-125F
GEN3SYS® Replaceable Drill Body: 1.1416" - 1.2596", 5xD, Flanged Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

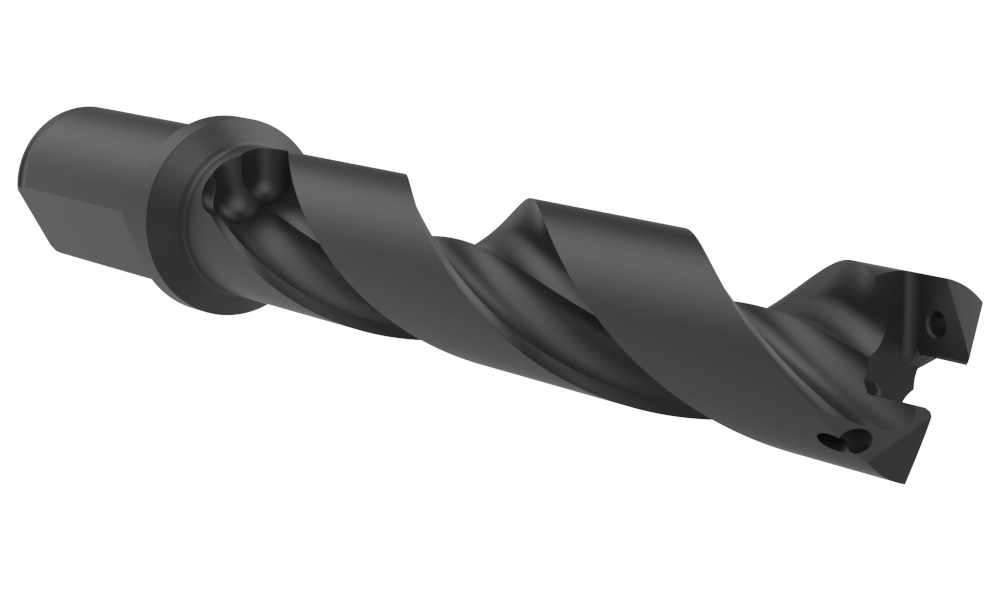

Default Image
Angle

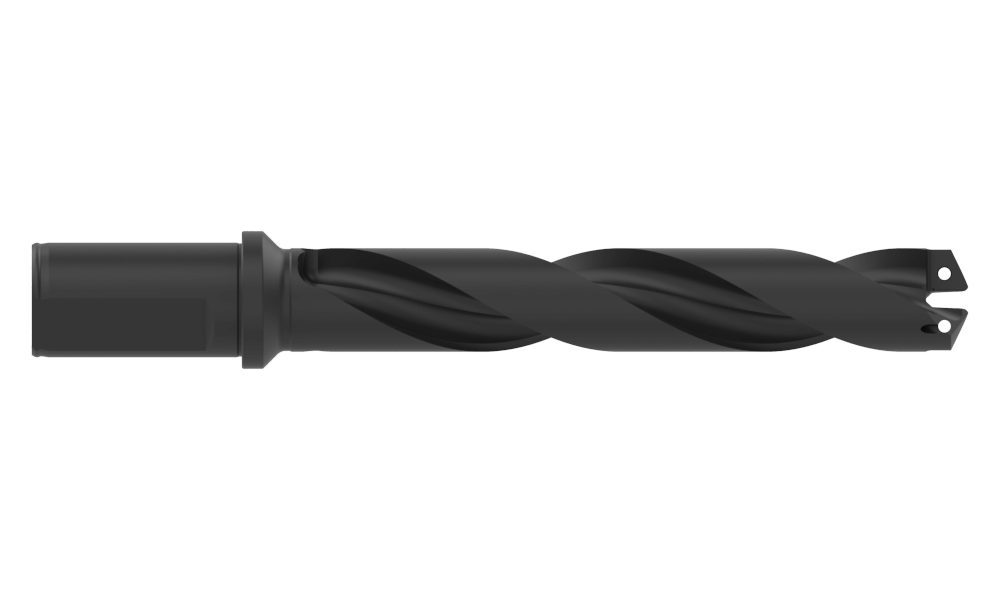

Front

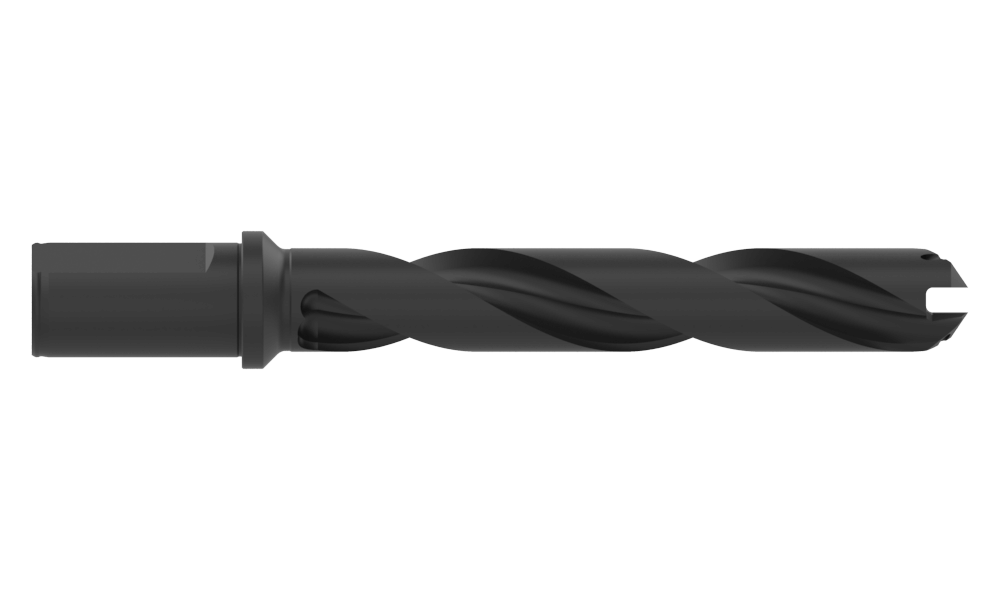

Top
Product Specifications
Series 29
Minimum Diameter (inch) 1.1416
Maximum Diameter (inch) 1.2596
Length Type 5xD
Flute Type Helical
Overall Length (inch) 10.298
Tool Reference Length (inch) 8.018
Body Length (inch) 7.901
Drill Depth (inch) 6.458
Shank Type Flanged
Shank Diameter (inch) 1-1/4
Shank Length (inch) 2.280
Pipe Tap Rear (inch) 1/4 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement GEN3SYS® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 2.2
Weight in kg (each) 1
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.164 lbs
Recycleable? Yes
Contains PFAS? No
Type: Rust Inhibitor
Material PAPER BOARD
Total Recycled Content 0.00%
Weight 0.002 lbs
Recycleable? Yes
Contains PFAS? No
