60518H-100C
GEN3SYS® Replaceable Drill Body: 0.7085" - 0.7872", 5xD, Cylindrical Shank
GEN3SYS® Holder

Add to cart image Add to list image







See Additional Technical Information

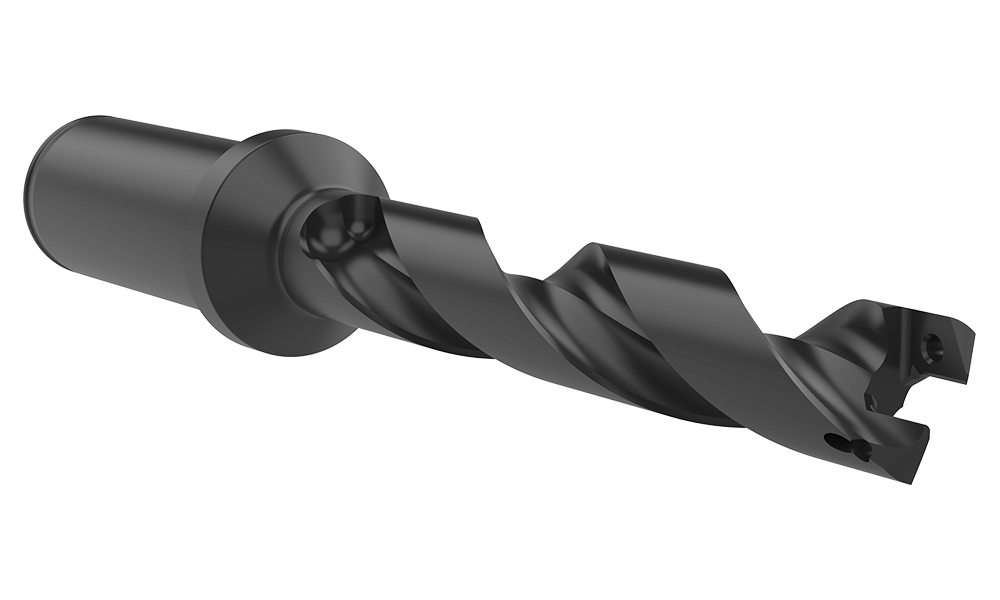

Default Image
Angle

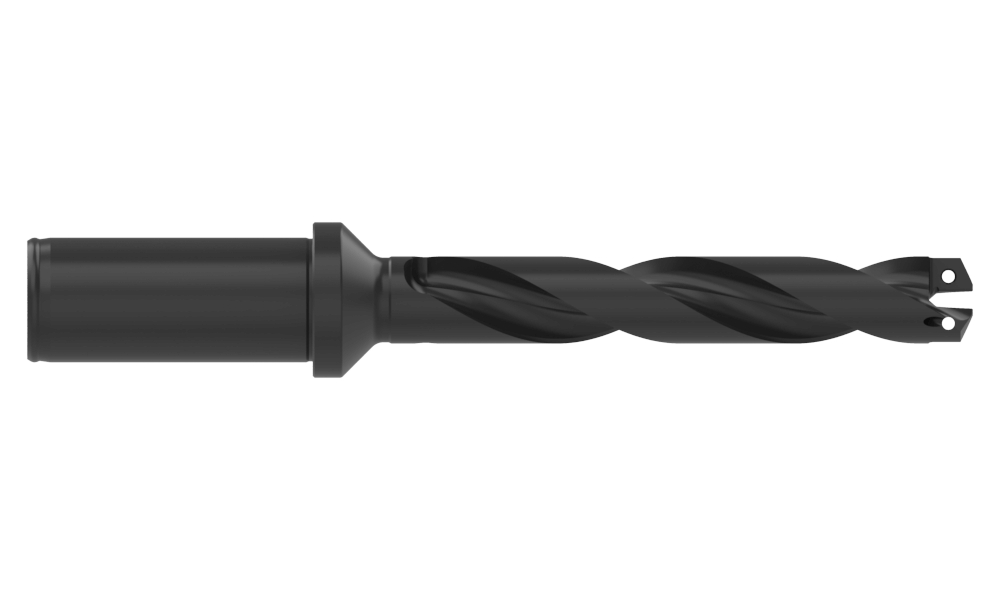

Front

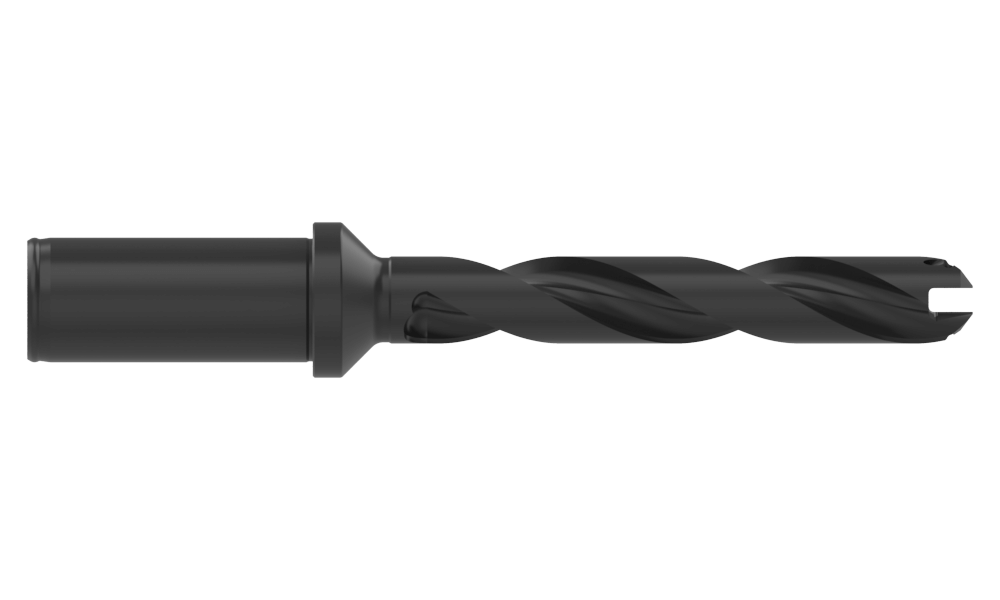

Top
Product Specifications
Series 18
Minimum Diameter (inch) 0.7085
Maximum Diameter (inch) 0.7872
Length Type 5xD
Flute Type Helical
Overall Length (inch) 7.665
Tool Reference Length (inch) 5.385
Body Length (inch) 5.275
Drill Depth (inch) 3.934
Shank Type Cylindrical
Shank Diameter (inch) 1
Shank Length (inch) 2.280
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) No
Type of Product Replaceable Drill Body
Product Application High Performance
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement GEN3SYS® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
GEN3SYS® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.94
Weight in kg (each) 0.43
Category Stocked
Packaging Information
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Label
Total Recycled Content 0.00%
Weight 0.000 lbs
Recycleable? No
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.089 lbs
Recycleable? Yes
Contains PFAS? No
Type: Product Container
Material POLYPROPYLENE
Total Recycled Content 0.00%
Weight 0.009 lbs
Recycleable? Yes
Contains PFAS? No
Type: Rust Inhibitor
Material PAPER BOARD
Total Recycled Content 0.00%
Weight 0.002 lbs
Recycleable? Yes
Contains PFAS? No
